2019 Suzuki GSX-S1000AL9 Frame Diagram

← All diagrams

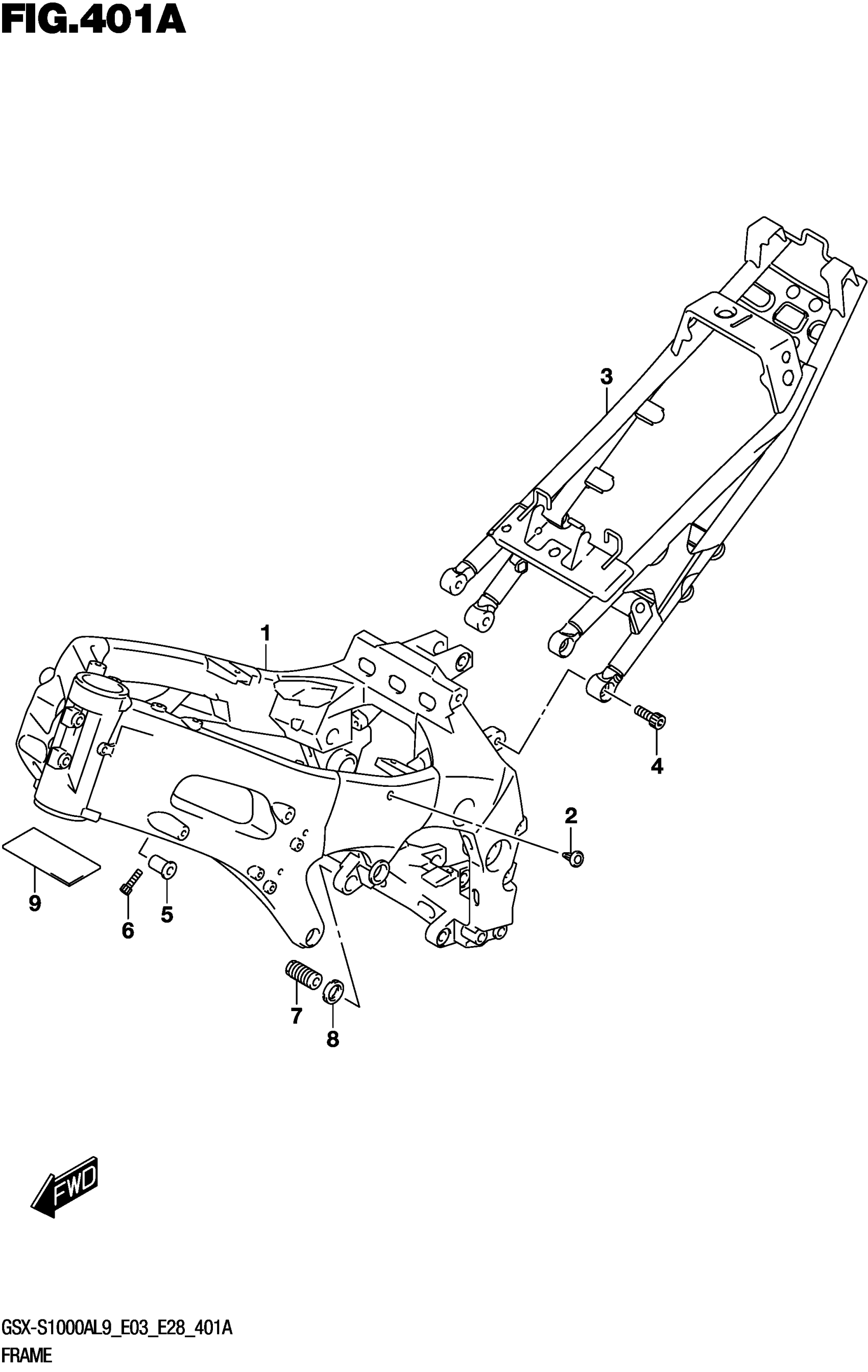

Find the part on the Frame diagram for your 2019 Suzuki GSX-S1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX-S1000AL9 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME(BLACK)

41100-04K00-YAP

1
Out of stock

2

PLUG, TANK RAIL

43585-01H01

2

$4.76

In stock

3

RAIL COMP,SEAT This part replaces 41200-04K10-YAP.

41200-04K20-YAP

1
Out of stock

4

BOLT

07120-1030B

4
Out of stock

5

SPACER,ENGINE MOUNTING

41911-40F01

1
Out of stock

6

BOLT (8X32)

09106-08185

1
Out of stock

7

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

2
Out of stock

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

2
Out of stock

9

CUSHION, FRAME HEAD

41139-21H10

1
Out of stock
