Partiron

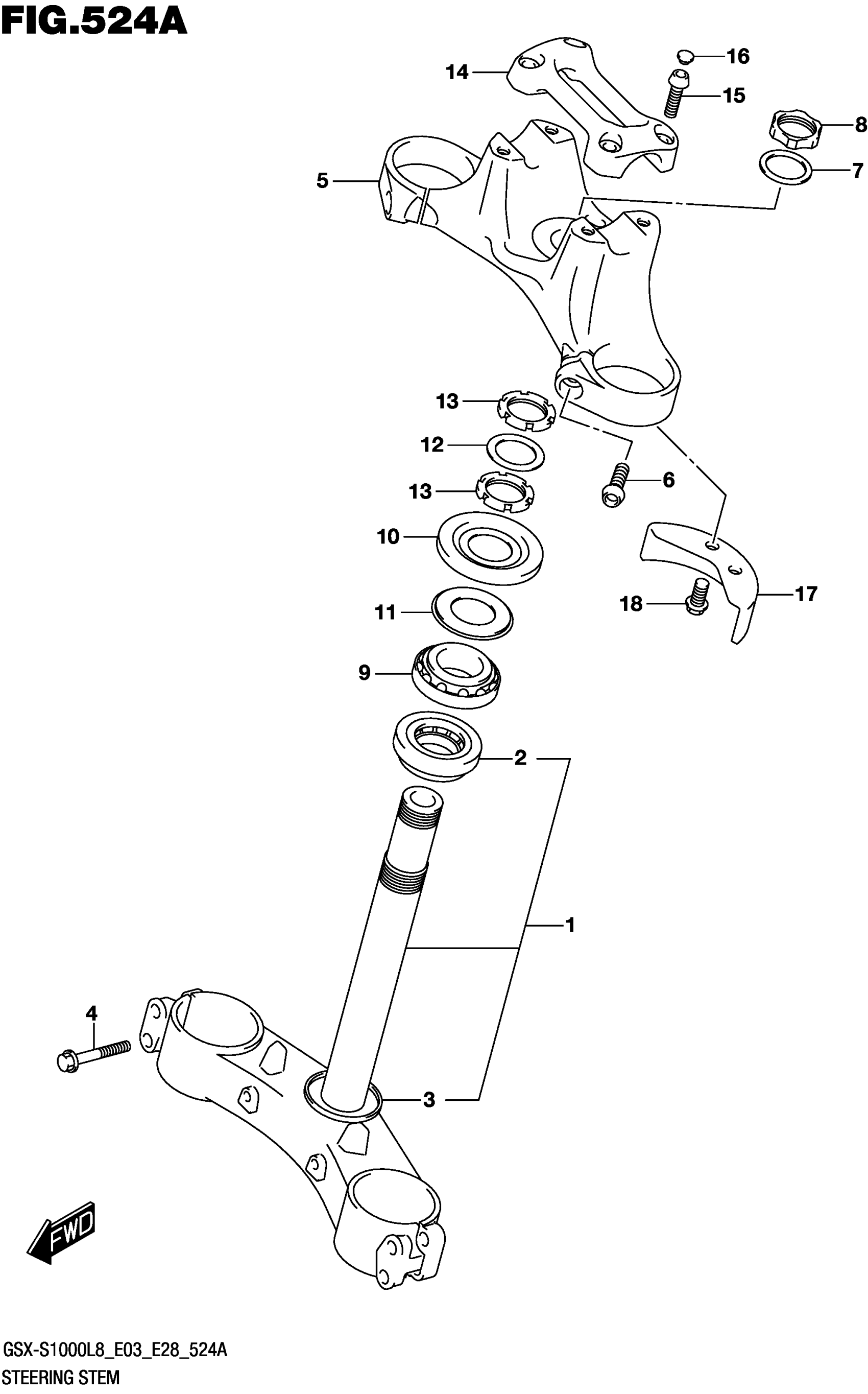

Suzuki GSX-S1000AL8 (2018) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER (BLACK)

51410-04K40-YTA

Unavailable

2

.BEARING (30X55X17)

09267-30010

$44.72

3

.SEAL, STEM LOWER

51644-12C00

$9.04

4

BOLT, AXLE STOPPER

51166-10G10

$6.08

5

BRACKET, UPPER (BLACK)

51311-04K00-YTA

$363.83

6

BOLT, BRACKET UPR

51328-46H00

$3.61

7

WASHER

51356-40F30

$5.69

8

NUT

51353-40F30

$51.20

9

BEARING (30X55X17)

09267-30010

$44.72

10

COVER, STEERING UPPER

51643-41G00

$8.57

11

SEAL, UPPER DUST

51644-12C00

$9.04

12

WASHER, STEM

51641-33E00

$5.93

13

NUT, STEM

51631-33E00

$22.62

14

HOLDER,HANDLE (BLACK)

56211-04K00-YTA

$133.43

15

BOLT, BRACKET UPR

51328-46H00

$3.61

16

CAP (OD:10)

09250-06015

$2.80

17

PLATE, STEERING LOCK

51911-04K00

$10.66

18

BOLT (8X16)

09103-08351

$3.52
