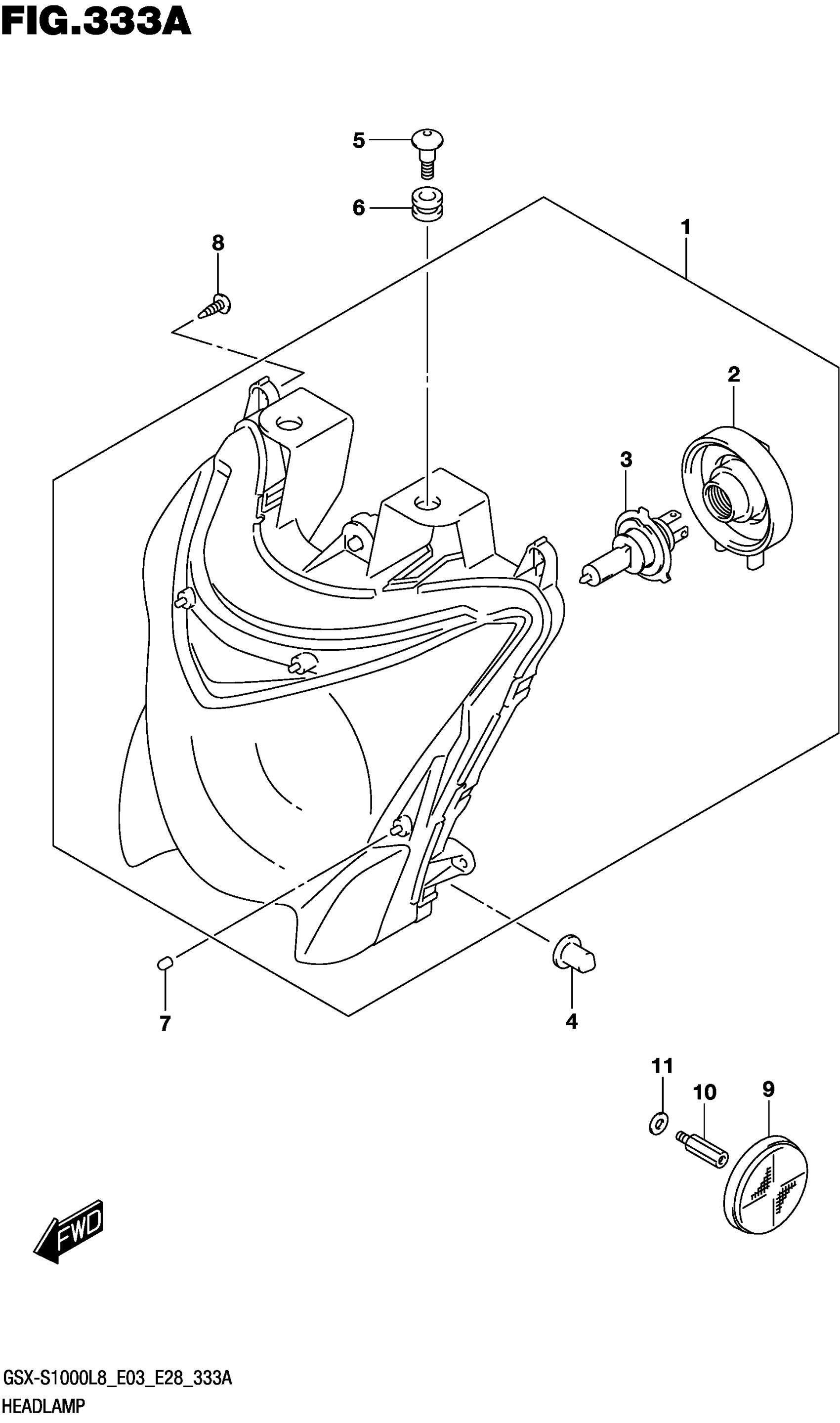

Suzuki GSX-S1000AL8 (2018) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-04K10.

35100-04K11

$424.75

2

.COVER

35152-04K00

$25.02

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$23.37

4

CUSHION

51831-21D00

$4.50

5

SCREW (6X20)

09139-06126

$3.75

6

CUSHION

09320-09501

$2.13

7

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.39

8

SCREW

03541-0516A

$1.41

9

REFLEX REFLECTOR ASSY,FR SIDE This part replaces 35950-13K00.

35950-13K01

$16.08

10

BOLT

09119-06109

$14.43

11

WASHER (8.5X18X1)

09160-08043

$1.81
