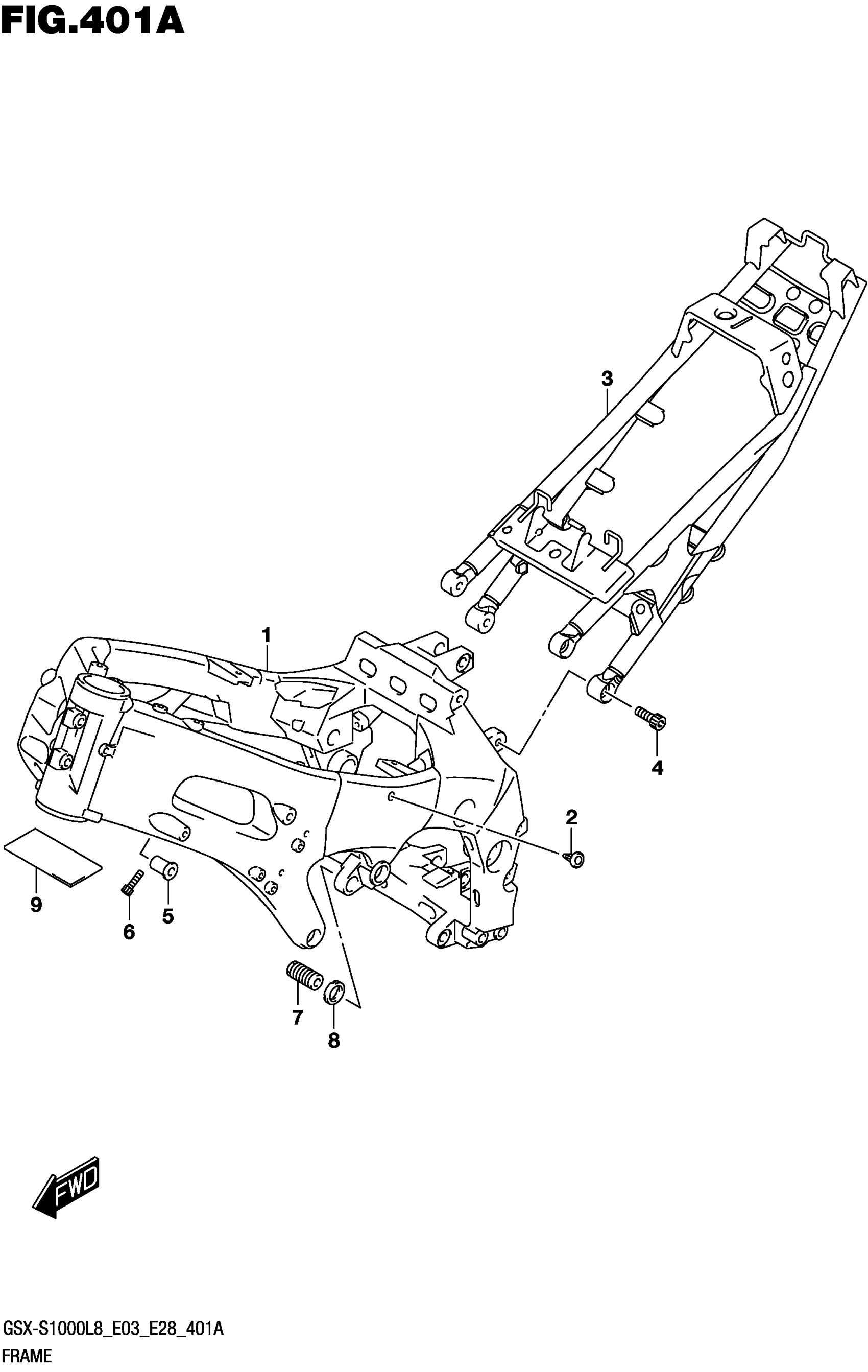

Suzuki GSX-S1000AL8 (2018) FRAME Diagram

FRAME(BLACK)

41100-04K00-YAP

$4,136.85

PLUG, TANK RAIL

43585-01H01

$4.37

RAIL COMP,SEAT This part replaces 41200-04K10-YAP.

41200-04K20-YAP

$580.77

BOLT

07120-1030B

$5.63

SPACER

41911-40F01

$21.23

BOLT (8X32)

09106-08185

$2.75

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$26.50

NUT

41922-33E20

Unavailable

CUSHION, FRAME HEAD

41139-21H10

Unavailable
