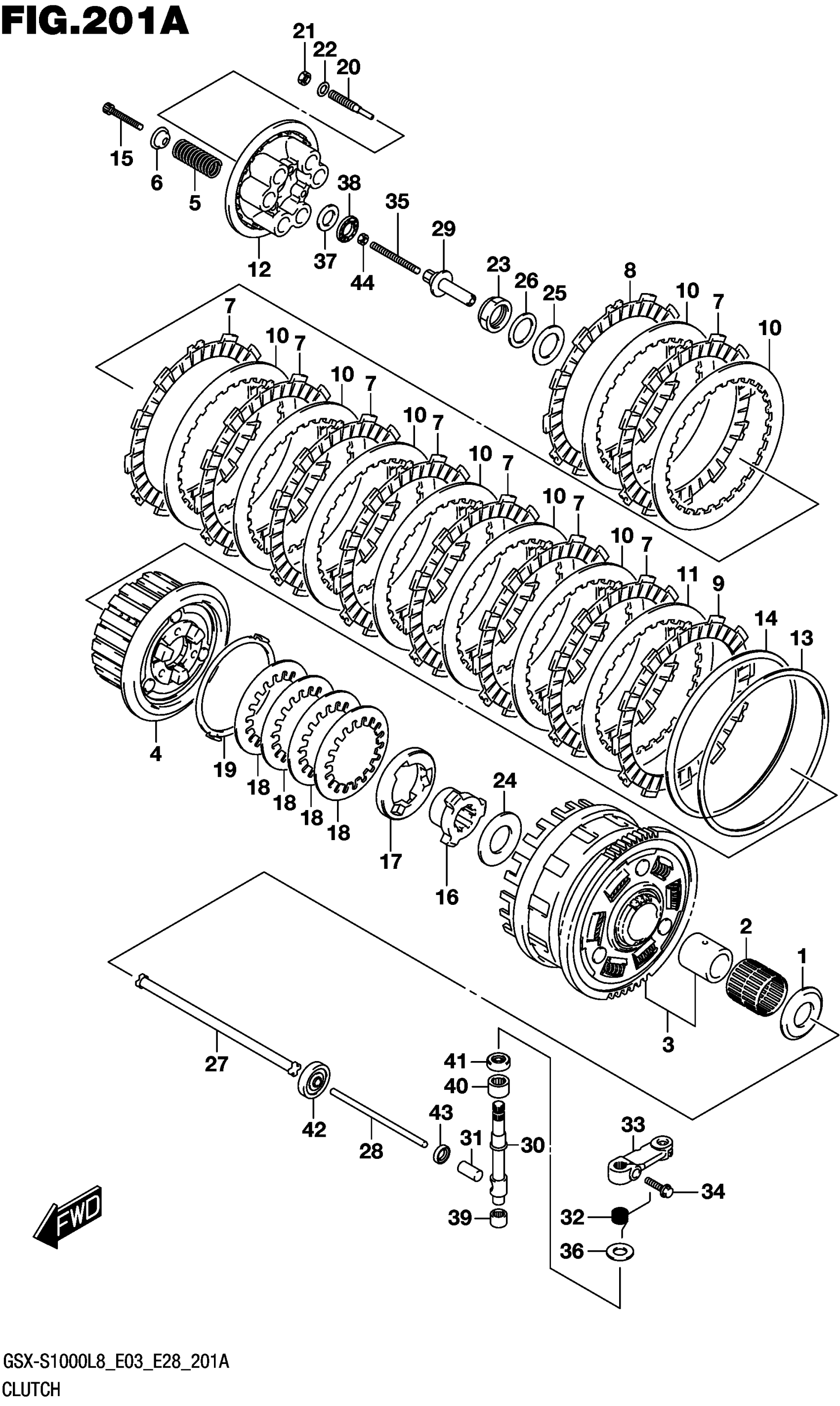

Suzuki GSX-S1000AL8 (2018) CLUTCH Diagram

#

Description
Price

1

WASHER (25X54X2.4)

09160-25073

$15.75

2

BEARING (35X40X35.8)

09263-35017

$37.12

3

GEAR ASSY, PRIMARY DRIVEN

21200-40880

$578.83

3

(NT:73)

21200-40880

$578.83

4

HUB,CLUTCH SLEEVE

21410-41G20

$268.38

5

SPRING, CLUTCH

21413-41G00

$9.70

6

WASHER, CLUTCH SPRING

21414-29F00

$5.88

7

PLATE, CLUTCH DRIVE NO.1

21441-36F00

$19.92

7

(T:2.7)

21441-36F00

$19.92

8

PLATE, CLUTCH DRIVE NO.2

21441-49H00

$39.43

8

(T:2.7)

21441-49H00

$39.43

9

PLATE, CLUTCH DRIVE NO.3

21442-41G00

$25.69

9

(T:2.7)

21442-41G00

$25.69

10

PLATE, CLUTCH DRIVEN NO.1

21451-41G00

$12.84

10

(T:2.3)

21451-41G00

$12.84

11

PLATE, CLUTCH DRIVEN NO.2

21451-41G40

$18.80

11

(T:2.3)

21451-41G40

$18.80

12

DISC,CLUTCH PRESSURE

21462-41G00

$88.67

13

.SEAT,WAVE WASHER

21471-41G00

$13.01

14

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$18.79

15

BOLT, CLUTCH SPRING

21482-41G10

$3.07

16

CAM,CLUTCH DRIVE

21611-41G20

$158.50

17

CAM,CLUTCH DRIVEN

21612-41G20

$133.88

18

WASHER,CAM REACTION WAVE

21621-41G00

$13.97

19

WASHER,CAM REACTION SEAT

21624-41G10

$18.22

20

LIFTER, CLUTCH PRESSURE DISK

21622-41G00

$9.89

21

NUT, CL PRESS DISK LIFTER LOC

21623-41G00

$2.80

22

SHIM (8.8X14X1)

09181-08139

$1.92

23

NUT

09159-24010

$11.92

24

.WASHER (25X50X2.5)

09160-25056

$10.63

25

WASHER (25X41X2.5)

09160-25077

$11.38

26

WASHER

09164-24008

$5.00

27

ROD, CLUTCH PUSH RH

23110-38B00

$21.22

28

ROD, CLUTCH PUSH, LH

23111-35F00

$12.18

29

PIECE, CLUTCH PUSH

23121-41G00

$55.32

30

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$64.22

31

CAP, CLUTCH PUSH ROD

23123-41G00

$10.01

32

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$2.97

33

ARM, CLUTCH RELEASE

23271-41G60

$62.70

34

BOLT (6X20)

09103-06223

$2.49

35

SCREW (6X73)

09134-06015

$6.21

36

WASHER (10.5X24X1)

09160-10020

$1.86

37

WASHER (15.5X28X1)

09160-15045

$3.52

38

BEARING (15X28X2)

09263-15003

$7.49

39

BEARING (10X14X10)

09263-10014

$12.21

40

BEARING (12X18X12)

09263-12027

$6.59

41

OIL SEAL (10X20X6)

09282-10012

$7.20

42

OIL SEAL (6X34X10.5)

09283-06010

$15.16

43

OIL SEAL (10X17X5)

09285-10004

$3.04

44

NUT

08310-0006A

$1.83
