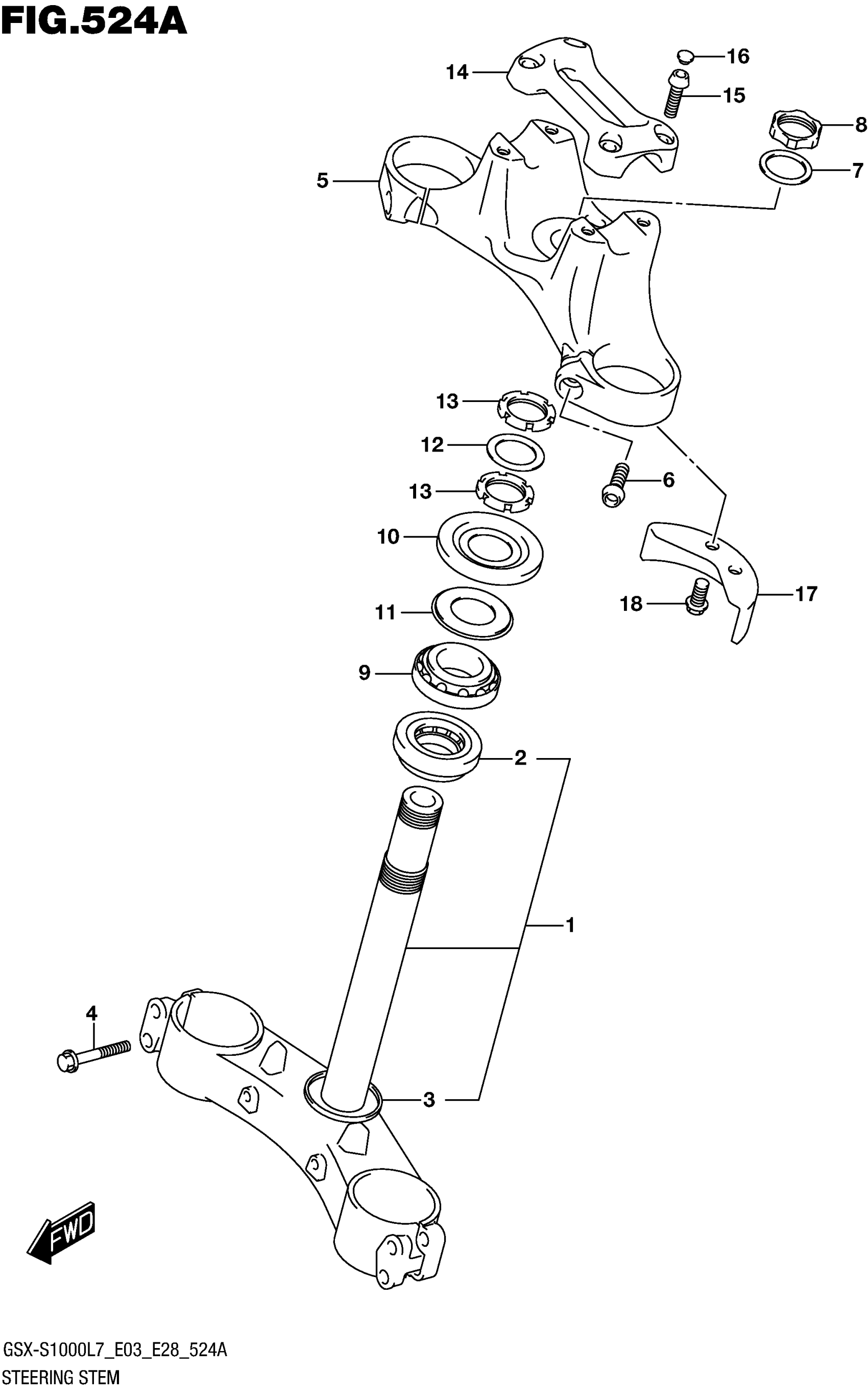

Suzuki GSX-S1000AL7 (2017) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER

51410-04K00

$603.13

2

.BEARING (30X55X17)

09267-30010

$43.41

3

.SEAL, STEM LOWER

51644-12C00

$8.65

4

BOLT, AXLE STOPPER

51166-10G10

$6.08

5

BRACKET, UPPER

51311-04K00

$463.82

6

BOLT, BRACKET UPR

51328-46H00

$3.45

7

WASHER

51356-40F30

$5.44

8

NUT

51353-40F30

$51.20

9

BEARING (30X55X17)

09267-30010

$43.41

10

COVER, STEERING UPPER

51643-41G00

$8.20

11

SEAL, UPPER DUST

51644-12C00

$8.65

12

WASHER, STEM

51641-33E00

$5.67

13

NUT, STEM

51631-33E00

$21.64

14

HOLDER, HANDLE

56211-04K00

Unavailable

15

BOLT, BRACKET UPR

51328-46H00

$3.45

16

CAP This part replaces 09250-06008.

09250-06016

$1.94

17

PLATE, STEERING LOCK

51911-04K00

$10.19

18

BOLT (8X16)

09103-08351

$3.52
