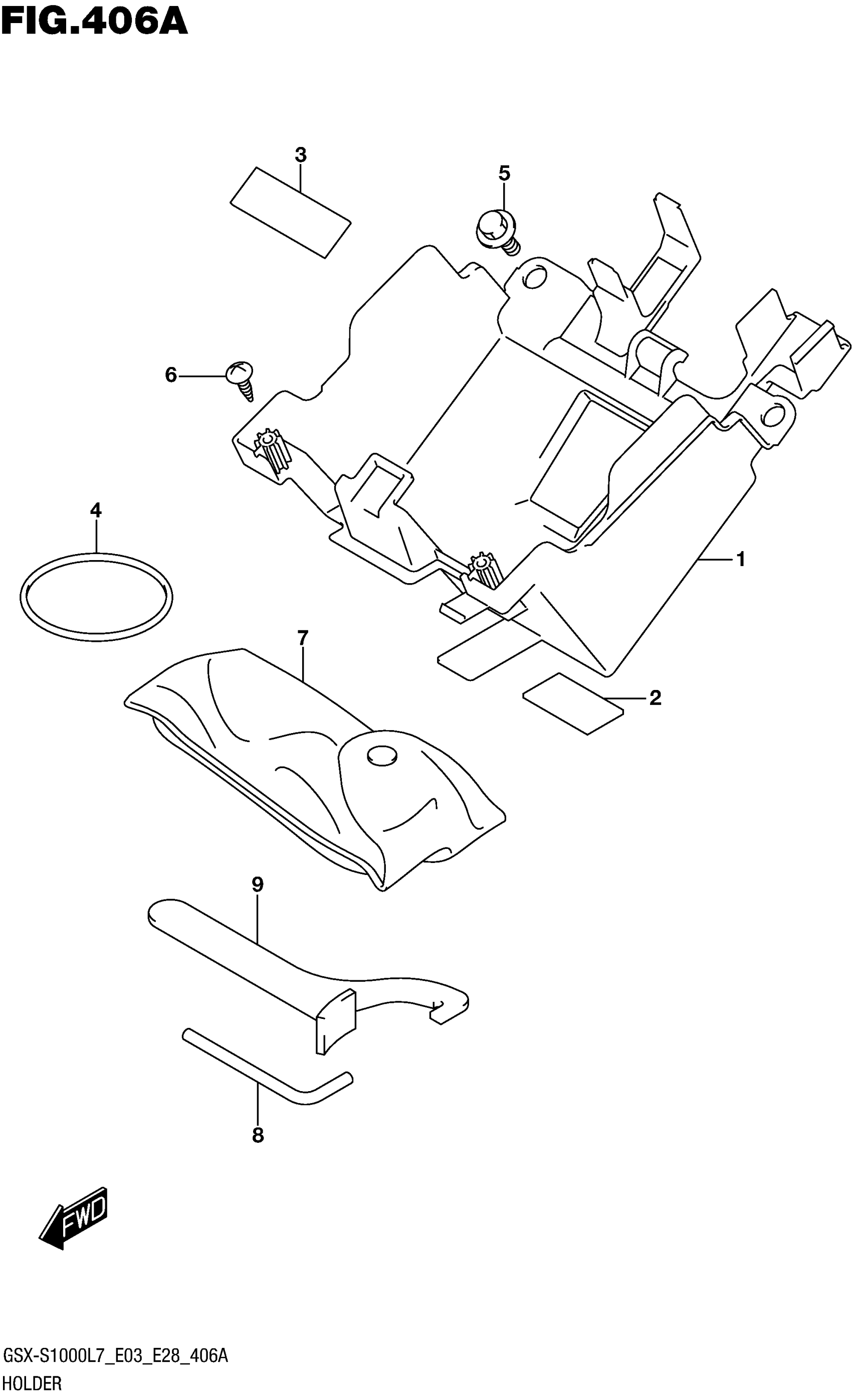

Find the part on the Holder diagram for your 2017 Suzuki GSX-S1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-S1000AL7 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,ELECTRIC PARTS This part replaces 47414-04K00.

47414-04K01

1
Out of stock

2

PROTECTOR,BATTERY (30X40X1.0)

33652-13G00

2
Out of stock

3

CUSHION (20X50X3)

92215-39H00

1
Out of stock

4

O RING (D:3.5,ID:56.5)

09280-57003

1
Out of stock

5

BOLT (6X17.8)

09111-06072

2
Out of stock

6

SCREW

03541-0516A

2
Out of stock

7

TOOL ASSY This part replaces 09800-21056.

09800-21100

1
Out of stock

8

HEXAGON SPANNER, 5

09816-00059

1
Out of stock

9

CLAMP, WRENCH

09822-00005

1
Out of stock
