2017 Suzuki GSX-S1000AL7 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2017 Suzuki GSX-S1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

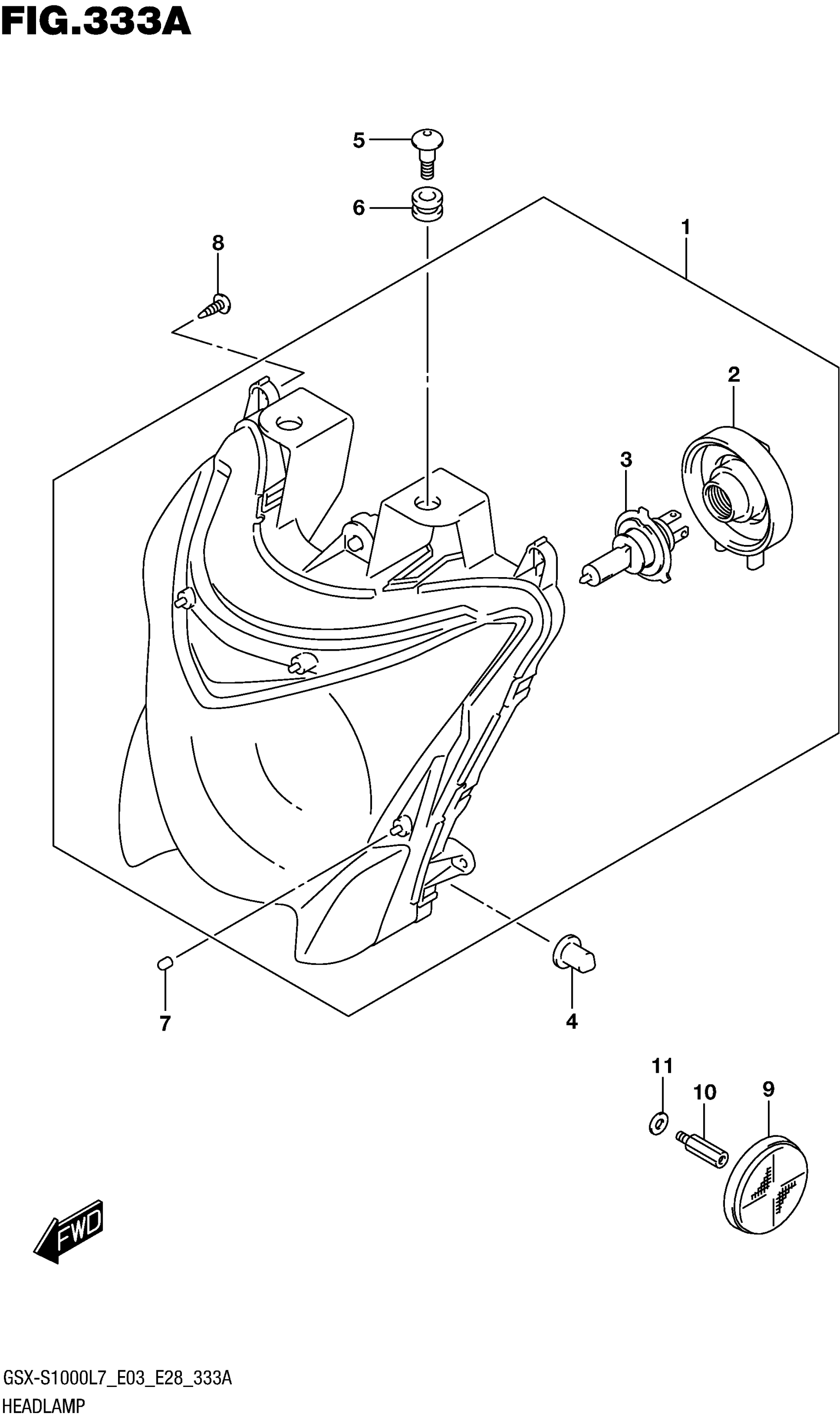

2017 Suzuki GSX-S1000AL7 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY This part replaces 35100-04K10.

35100-04K11

1
Out of stock

2

.COVER

35152-04K00

1
Out of stock

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

1
Out of stock

4

CUSHION

51831-21D00

2
Out of stock

5

SCREW (6X20)

09139-06126

2
Out of stock

6

CUSHION

09320-09501

2
Out of stock

7

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

4
Out of stock

8

SCREW

03541-0516A

4
Out of stock

9

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

10

BOLT

09119-06109

2
Out of stock

11

WASHER (8.5X18X1)

09160-08043

2
Out of stock
