2017 Suzuki GSX-S1000AL7 Front Caliper Diagram

← All diagrams

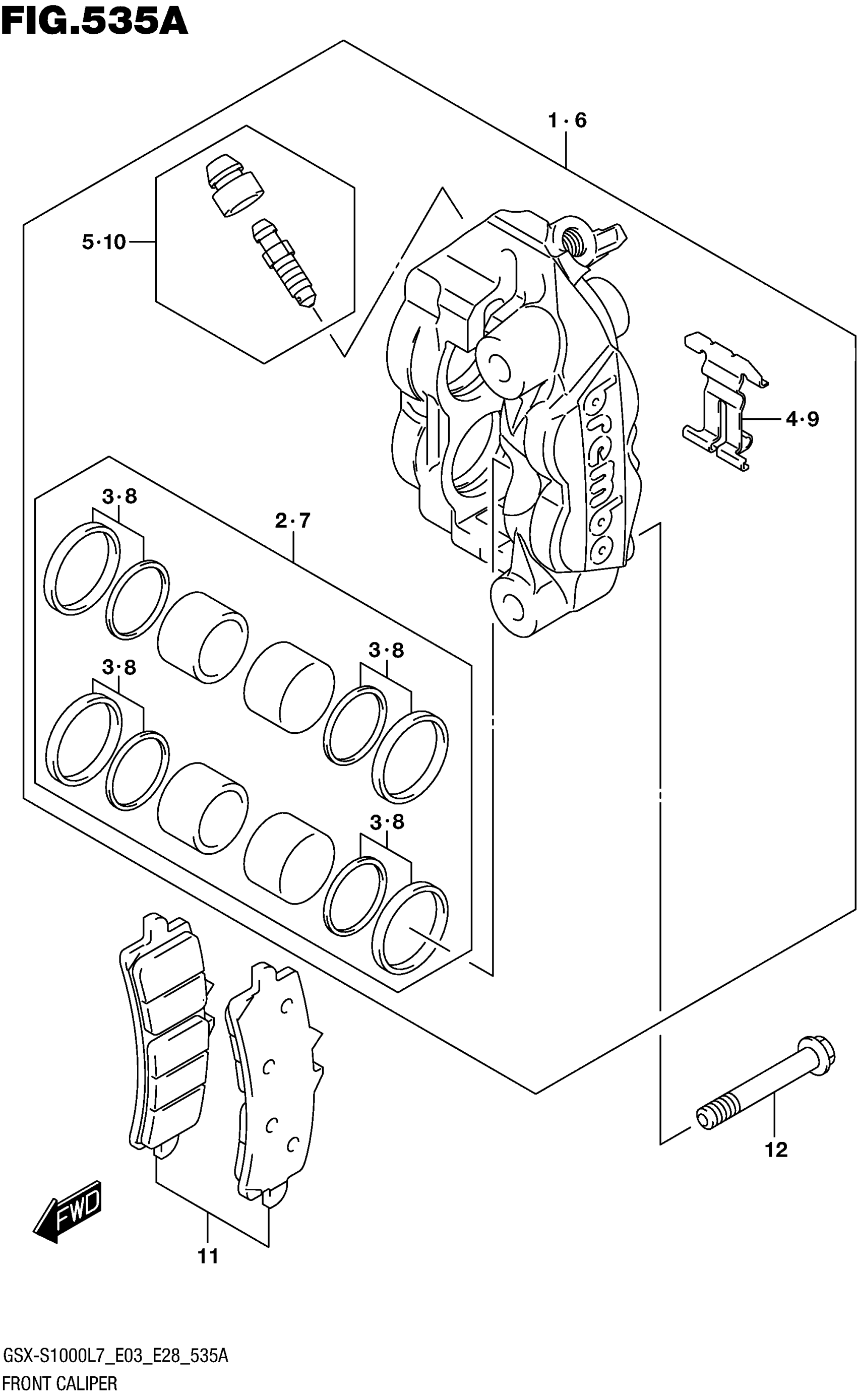

Find the part on the Front Caliper diagram for your 2017 Suzuki GSX-S1000AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-S1000AL7 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

CALIPER ASSY, FRONT RH

59100-14J40-999

1

$746.13

In stock

1-2

CALIPER ASSY, FRONT RH | OPT:BLUE

59110-14JB0

1
Out of stock

1-3

CALIPER ASSY, FRONT RH | OPT:YELLOW

59110-14JC0

1
Out of stock

1-4

CALIPER ASSY, FRONT RH | OPT:RED

59110-14JD0

1
Out of stock

2

.PISTON SET

59100-14810

1

$101.14

In stock

3

..SEAL SET, PISTON

59100-14820

1

$63.14

In stock

4

.SPRING, PAD

59151-14J00

1

$24.03

In stock

5

.BLEEDER SET

59100-14840

1

$25.85

In stock

6-1

CALIPER ASSY, FRONT LH

59300-14J40-999

1

$746.13

In stock

6-2

CALIPER ASSY, FRONT LH | OPT:BLUE

59310-14JB0

1
Out of stock

6-3

CALIPER ASSY, FRONT LH | OPT:YELLOW

59310-14JC0

1
Out of stock

6-4

CALIPER ASSY, FRONT LH | OPT:RED

59310-14JD0

1
Out of stock

7

.PISTON SET

59100-14810

1

$101.14

In stock

8

..SEAL SET, PISTON

59100-14820

1

$63.14

In stock

9

.SPRING, PAD

59151-14J00

1

$24.03

In stock

10

.BLEEDER SET

59100-14840

1

$25.85

In stock

11

PAD (T4.0)

59100-14850

2

$75.52

In stock

12

BOLT (10X70)

09103-10450

4

$4.74

In stock
