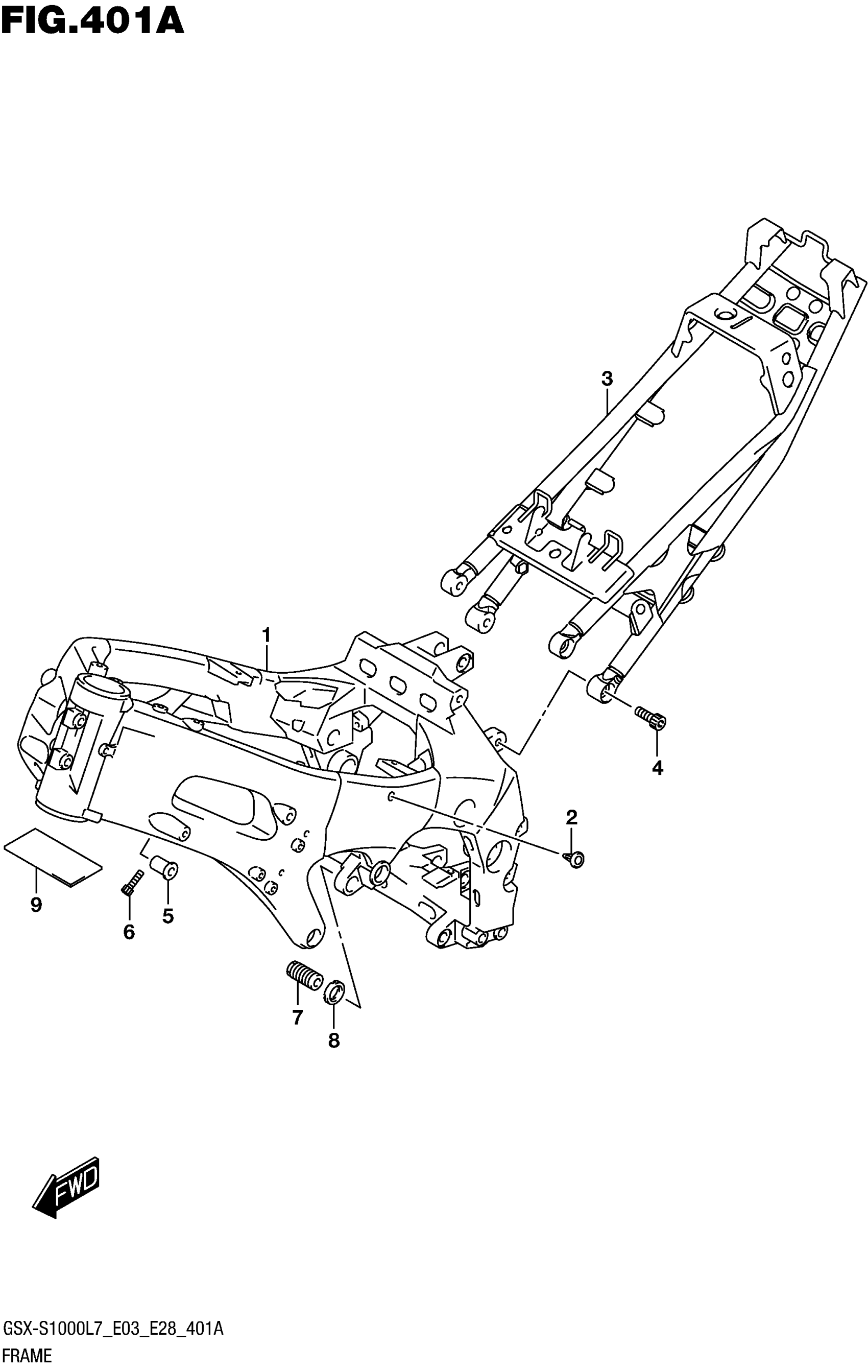

Suzuki GSX-S1000AL7 (2017) FRAME Diagram

#

Description
Price

1

FRAME(BLACK)

41100-04K00-YAP

$4,136.85

2

PLUG, TANK RAIL

43585-01H01

$4.37

3

RAIL, SEAT (BLACK)

41200-04K00-YAP

$826.32

4

BOLT

07120-1030B

$5.63

5

SPACER

41911-40F01

$21.23

6

BOLT (8X32)

09106-08185

$2.75

7

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$26.50

8

NUT

41922-33E20

Unavailable

9

CUSHION, FRAME HEAD

41139-21H10

Unavailable
