1999 Suzuki GSX-R750X Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1999 Suzuki GSX-R750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

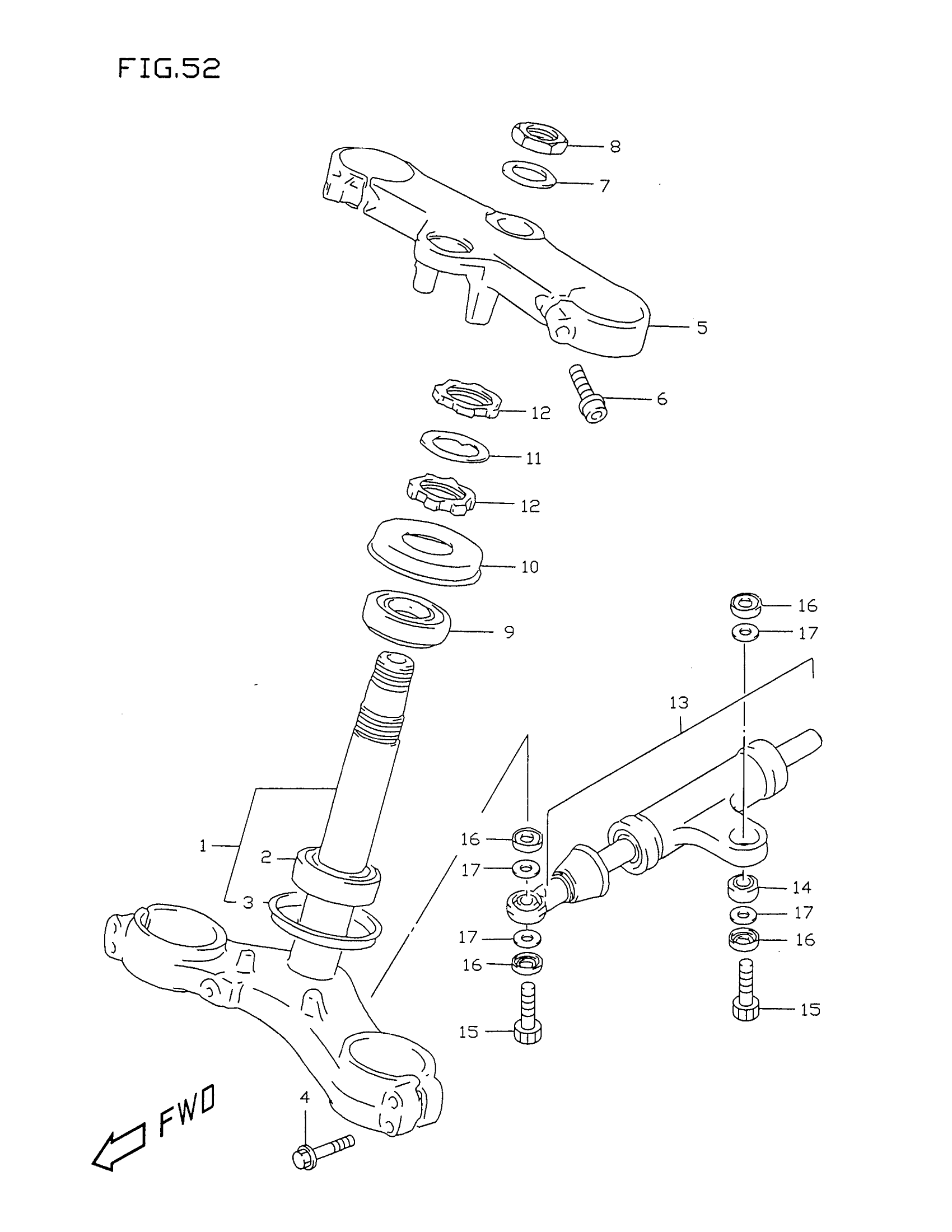

1999 Suzuki GSX-R750X Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | MODEL T/V This part replaces 51410-33E00.

51410-33E20

1
Out of stock

1

STEM, STEERING | MODEL W/X; Includes Item(s) 2 - 3

51410-33E20

1
Out of stock

2

BEARING (30X55X17)

09267-30010

1
Out of stock

3

SEAL, STEM LOWER

51644-12C00

1
Out of stock

4

BOLT

01550-08407

4
Out of stock

5

HEAD, STEERING STEM

51311-33E00

1
Out of stock

6

BOLT

01550-08407

2
Out of stock

7

1

$20.30

In stock

7

WASHER | MODEL W/X

51354-42E00

1
Out of stock

8

NUT

51353-27C40

1
Out of stock

9

BEARING (30X55X17)

09267-30010

1
Out of stock

10

SEAL, STEERING UPR DUST

51643-33E00

1
Out of stock

11

WASHER, STEM

51641-33E00

1
Out of stock

12

NUT, STEM

51631-33E00

2
Out of stock

13

DAMPER ASSY, STEERING | MODEL W/X; Includes Item(s) 14

51750-33E00

1
Out of stock

14

BEARING (8X17.5X11) | MODEL W/X

09269-08003

1
Out of stock

15

BOLT, STEERING DAMPER | MODEL W/X This part replaces 07130-08303.

07130-0830A

2
Out of stock

16

DUST SEAL TORQU | MDOEL W/X This part replaces 64339-40410.

64339-40411

4
Out of stock

17

SHIM | MODEL W/X

09181-08106

4
Out of stock
