1999 Suzuki GSX-R750X Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1999 Suzuki GSX-R750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

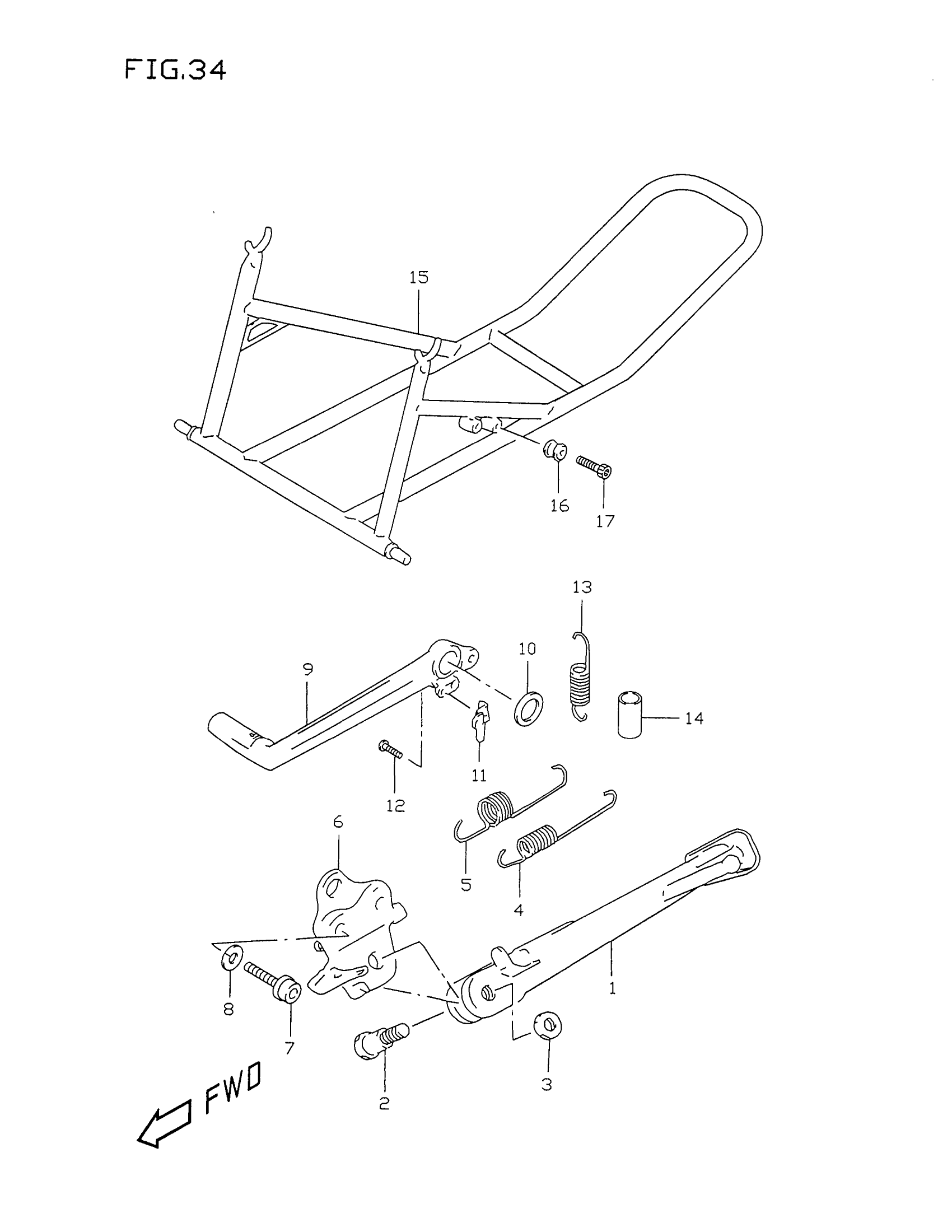

1999 Suzuki GSX-R750X Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | MODEL T/V

42310-33E10

1
Out of stock

1

STAND, PROP | MODEL W/X

42310-33E30

1
Out of stock

2

BOLT, PROP STAND

09111-10027

1
Out of stock

3

NUT | MDOEL W/X

09159-10097

1
Out of stock

4

SPRING, INNER | MODEL T/V

09443-14058

1
Out of stock

4

SPRING, INNER | MODEL W/X

09443-14066

1
Out of stock

5

SPRING, OUTER | MODEL T/V

09443-19011

1
Out of stock

5

1

$5.70

In stock

6

BRACKET, PROP STAND | MODEL T/V This part replaces 42330-33E00.

42330-33E20

1
Out of stock

6

BRACKET, PROP STAND | MDOEL W This part replaces 42330-33E01.

42330-33E20

1
Out of stock

6

BRACKET, PROP STAND | MODEL X

42330-33E20

1
Out of stock

7

BOLT This part replaces 07120-08303.

07120-0830A

2
Out of stock

8

2

$1.99

In stock

9

PEDAL, BRAKE

43111-33E00

1
Out of stock

10

WASHER

09160-18022

1
Out of stock

11

HOOK, RETURN SPRING

43561-33E00

1

$9.97

In stock

12

.SCREW This part replaces 02112-05163.

02112-0516A

1
Out of stock

13

SPRING, RETURN

09443-13029

1
Out of stock

14

TUBE, SPRING

43261-17C00

1
Out of stock

15

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

1
Out of stock

16

HOLDER, STAND | OPT

61165-27A30

2
Out of stock

17

BOLT, STEERING DAMPER | OPT This part replaces 07130-08303.

07130-0830A

2
Out of stock
