1995 Suzuki GSX-R750WS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1995 Suzuki GSX-R750WS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

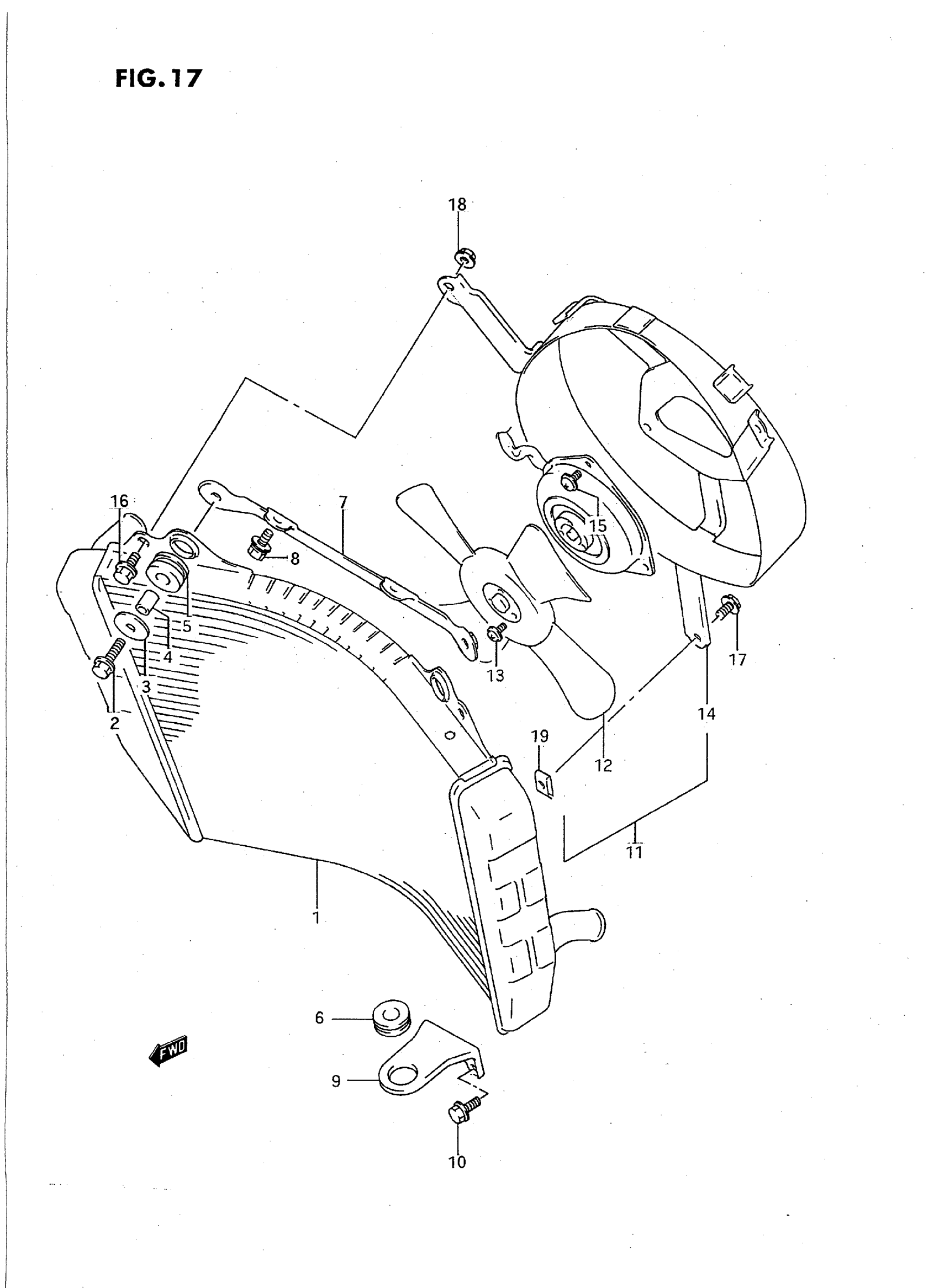

1995 Suzuki GSX-R750WS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSY, WATER

17710-17E00

1
Out of stock

2

BOLT | MODEL P This part replaces 01517-06254.

01550-0625A

2
Out of stock

2

BOLT | MODEL R/S

09116-06147

2
Out of stock

3

WASHER (6.5X24X1.2) | MODEL P This part replaces 09160-06113.

09160-06114

2
Out of stock

4

SPACER (6.5X10.5X12)

09180-07004

2
Out of stock

5

2

$3.55

In stock

6

CUSHION This part replaces 09320-12053.

09320-12092

1
Out of stock

7

BRACKET, RADIATOR UPPER

17740-17E00

1
Out of stock

8

BOLT | MODEL P This part replaces 01177-06125.

01580-0612A

2
Out of stock

8

BOLT | MODEL R This part replaces 01580-06123.

01580-0612A

2
Out of stock

8

BOLT | MODEL S This part replaces 01580-06163.

01580-0616A

2
Out of stock

9

BRACKET, RADIATOR LOWER

17751-17E00

1
Out of stock

10

BOLT | MODEL P This part replaces 01174-06165.

01580-0616A

2
Out of stock

10

BOLT | MODEL R/S This part replaces 01580-06163.

01580-0616A

2
Out of stock

11

FAN ASSY, RADIATOR | MODEL P This part replaces 17800-17E01.

17800-17E02

1
Out of stock

11

FAN ASSY, RADIATOR | MODEL R/S; Includes Item(s) 12 - 15

17800-17E02

1
Out of stock

12

FAN ASSY

17820-17E00

1
Out of stock

13

3

$1.67

In stock

13

3

$1.67

In stock

14

SHROUD ASSY, FAN

17770-17E00

1
Out of stock

15

SCREW | MODEL P/R

17801-45C00

3
Out of stock

15

SCREW | MODEL S This part replaces 02112-05083.

02112-0508A

3
Out of stock

16

BOLT, CLAMP | MODEL P This part replaces 01517-06125.

01550-0612A

2
Out of stock

16

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

2
Out of stock

17

BOLT | MODEL P This part replaces 01517-06108.

01550-06107

1
Out of stock

17

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

1
Out of stock

18

NUT | MODEL P This part replaces 08316-16064.

08316-1006B

2
Out of stock

18

NUT | MODEL R/S This part replaces 08316-10063.

08316-1006B

2
Out of stock

19

NUT, FAN ASSY This part replaces 17762-39A00.

09148-06015

1
Out of stock
← OIL PAN - OIL Pump Radiator Hose →
