1995 Suzuki GSX-R750WS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Suzuki GSX-R750WS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

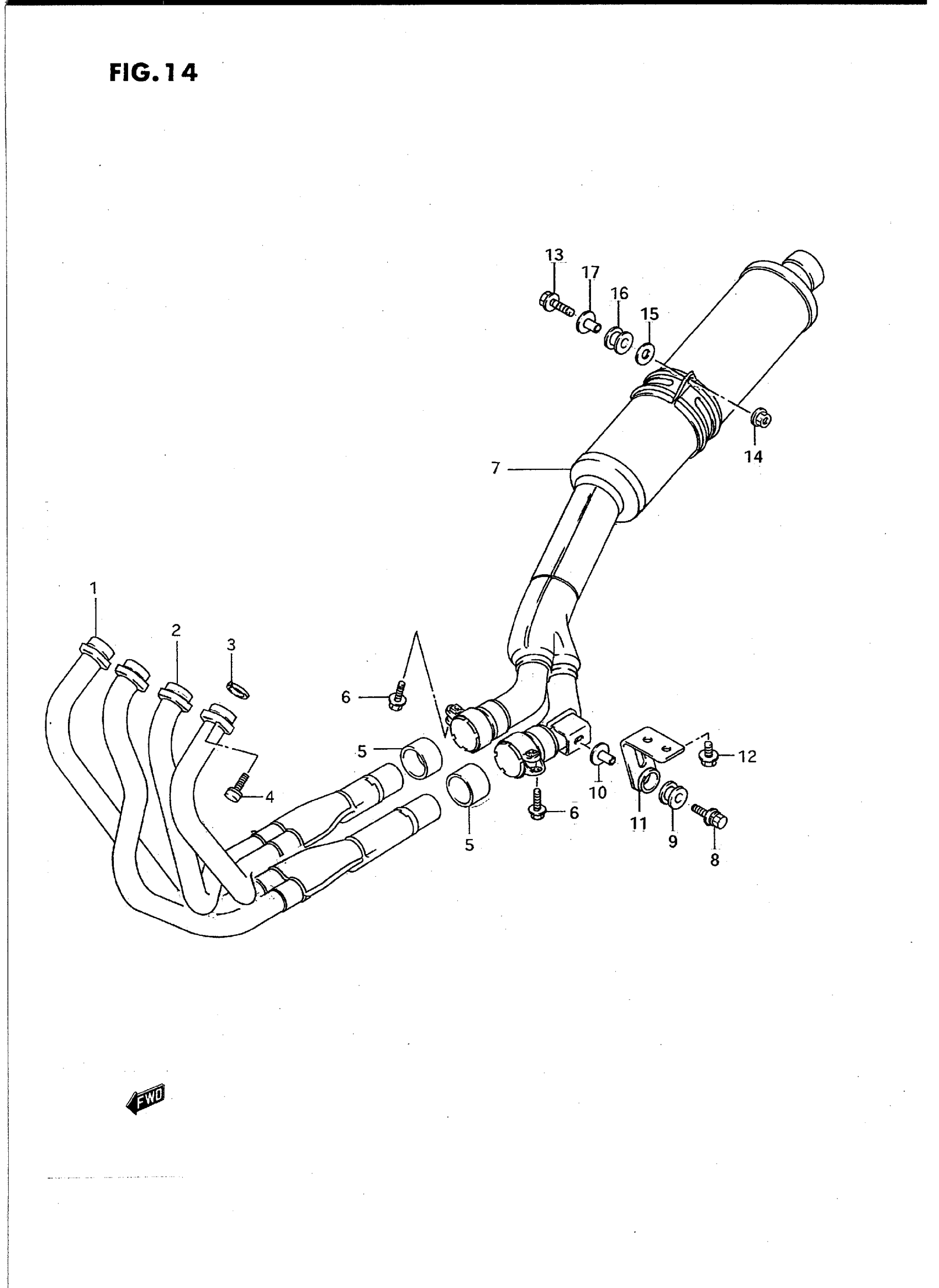

1995 Suzuki GSX-R750WS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST RH | MODEL P This part replaces 14150-17E30.

14150-18E00

1
Out of stock

1

PIPE, EXHAUST RH | MODEL R/S

14150-17ED0

1
Out of stock

2

PIPE, EXHAUST LH | MODEL P

14160-17E30

1
Out of stock

2

PIPE, EXHAUST LH | MODEL R/S

14106-17ED0

1
Out of stock

3

GASKET, EXHAUST PIPE

14181-17E00

4
Out of stock

4

BOLT | MODEL P This part replaces 07110-08255.

07130-0825B

8
Out of stock

4

BOLT | MODEL R/S This part replaces 07130-08253.

07130-0825B

8
Out of stock

5

CONNECTOR, MUFFLER

14771-44B00

2
Out of stock

6

BOLT | MODEL P This part replaces 01517-08407.

01550-08407

2
Out of stock

6

BOLT | MODEL R/S This part replaces 01550-08403.

01550-0840A

2
Out of stock

7

BODY, MUFFLER | MODEL P This part replaces 14305-17E32-H01.

14305-17E14-H01

1
Out of stock

7

BODY, MUFFLER | MODEL R/S

14305-17E14-H01

1
Out of stock

8

BOLT (8X40) | MODEL P This part replaces 09118-08138.

09118-08145

1
Out of stock

8

BOLT (8X40) | MODEL R/S This part replaces 09118-08068.

09118-08145

1
Out of stock

9

CUSHION

09320-12048

1
Out of stock

10

SPACER

09180-08152

1
Out of stock

11

DAMPER

14770-17E03

1
Out of stock

12

BOLT | MODEL P This part replaces 01517-08205.

01550-0820A

2
Out of stock

12

BOLT | MODEL R This part replaces 09100-08240.

09100-08299

2
Out of stock

13

BOLT, MUF SPRT,RR | MODEL P This part replaces 01517-08457.

01550-08457

1
Out of stock

13

BOLT | MODEL R/S

01550-08457

1
Out of stock

14

NUT (CHROME) | MODEL P This part replaces 08316-16088.

08316-10087

1
Out of stock

14

1

$2.10

In stock

15

1

$2.80

In stock

16

CUSHION

09320-12049

1

$10.34

In stock

17

SPACER

09180-08156

1
Out of stock
