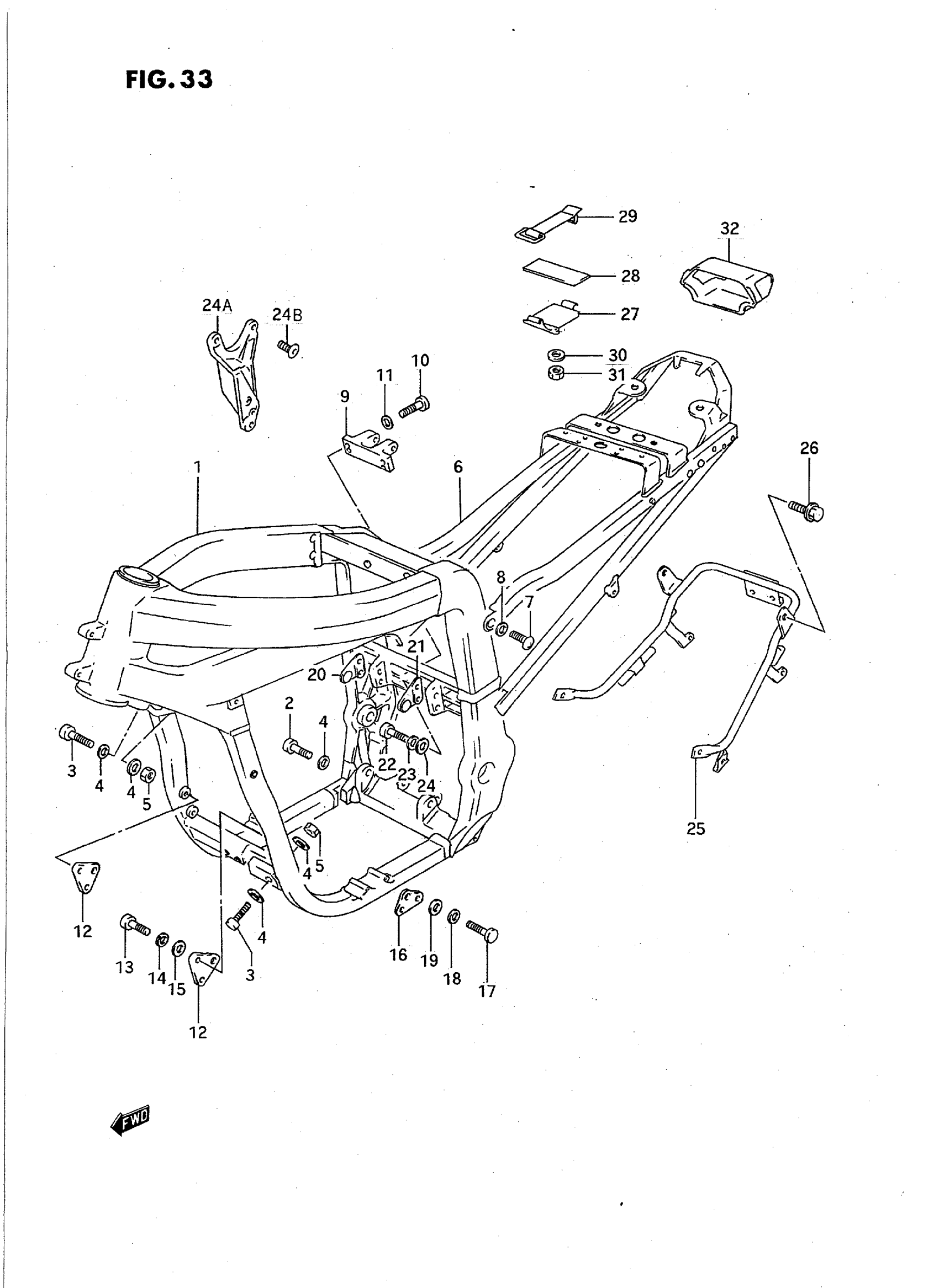

Suzuki GSX-R750WS (1995) FRAME Diagram

#

Description
Price

1

FRAME SET | MODEL P This part replaces 41101-17860.

41101-17870

Unavailable

1

FRAME SET | CALIFORNIA ONLY,MODEL P

41101-17870

Unavailable

1

FRAME SET | MODEL R/S; Includes Item(s) 2 - 5

41101-17881

Unavailable

2

BOLT, RH | MODEL P This part replaces 01517-10308.

01550-10307

$3.58

2

BOLT, RH | MODEL R

01550-10307

$3.58

2

BOLT | MODEL S This part replaces 01550-10303.

01550-1030A

$3.25

3

BOLT | MODEL P This part replaces 01927-10458.

01550-1045B

$5.17

3

BOLT | MODEL R/S This part replaces 01550-10453.

01550-1045B

$5.17

4

WASHER This part replaces 09160-10013.

09160-10123

$2.13

5

NUT

09159-10027

$2.84

6

RAIL. SEAT | MODEL P ~F.NO.105796 This part replaces 41200-17E00.

41200-17E01

Unavailable

6

RAIL, SEAT | MODEL P F.NO.105797~

41200-17E01

Unavailable

6

RAIL, SEAT | MODEL R/S

41200-17E50

Unavailable

7

BOLT This part replaces 43529-17D00.

09139-10004

$5.58

8

WASHER

09164-10010

$5.25

9

BRACKET, REAR CUSHION UNIT

41762-17E00

Unavailable

10

BOLT, NO.1

09106-08056

Unavailable

11

WASHER

09164-08015

$2.90

12

PLATE, ENGINE MOUNT NO.1

41911-17E00

Unavailable

13

BOLT | MODEL P

07130-08257

$3.14

13

BOLT, HOOK | MODEL R/S This part replaces 09103-08255.

09103-08288

$4.35

14

.LOCK WASHER | MODEL P/R

08321-01087

$1.83

14

LOCK WASHER | MODEL S This part replaces 08321-01083.

08321-0108A

$1.83

15

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.43

16

PLATE, MOUNT NO.2 LH

41921-17E00

Unavailable

16

PLATE, MOUNT NO.2 RH

41931-17E00

Unavailable

17

BOLT | MODEL P

07130-08257

$3.14

17

BOLT, HOOK | MODEL R/S This part replaces 09103-08255.

09103-08288

$4.35

18

.LOCK WASHER | MODEL P/R

08321-01087

$1.83

18

LOCK WASHER | MODEL S This part replaces 08321-01083.

08321-0108A

$1.83

19

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.43

20

PLATE, ENGINE MOUNT NO.3 RH

41940-17E00

Unavailable

21

PLATE, ENGINE MOUNT NO.3 LH

41950-17E00

Unavailable

22

BOLT

09106-08005

Unavailable

23

.LOCK WASHER | MODEL P/R This part replaces 08321-31087.

08321-01087

$1.83

23

LOCK WASHER | MODEL S This part replaces 08321-01083.

08321-0108A

$1.83

24

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.43

24A

PLATE, ENGINE MOUNT UPPER RH | MODEL R/S

41961-17E60

Unavailable

24A

PLATE, ENGINE MOUNT UPPER LH | MODEL R/S

41971-17E60

Unavailable

24B

BOLT, BRACKET | MODEL R/S This part replaces 09106-08112.

09106-08129

$5.87

25

GRIP, REAR | MODEL P This part replaces 43980-17E11.

43980-17E14

Unavailable

25

GRIP, REAR | MODEL R This part replaces 43980-17E12.

43980-17E14

Unavailable

25

GRIP, REAR | MODEL S

43980-17E14

Unavailable

26

BOLT | MODEL P

01550-08207

$2.73

26

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.25

27

HOLDER, TOOL | MODEL P This part replaces 41550-49200.

41550-49201

$15.06

28

CUSHION | MODEL P

36920-02200

$3.80

29

BAND, TOOL | MODEL P

09462-00008

$4.36

30

WASHER | MODEL P This part replaces 09160-06006.

09160-06084

$1.77

31

.NUT | MODEL P This part replaces 08319-21066.

08319-2106A

$1.89

32

HOLDER, TOOL | MODEL R/S

47431-17E00

Unavailable
