1995 Suzuki GSX-R750W Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1995 Suzuki GSX-R750W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

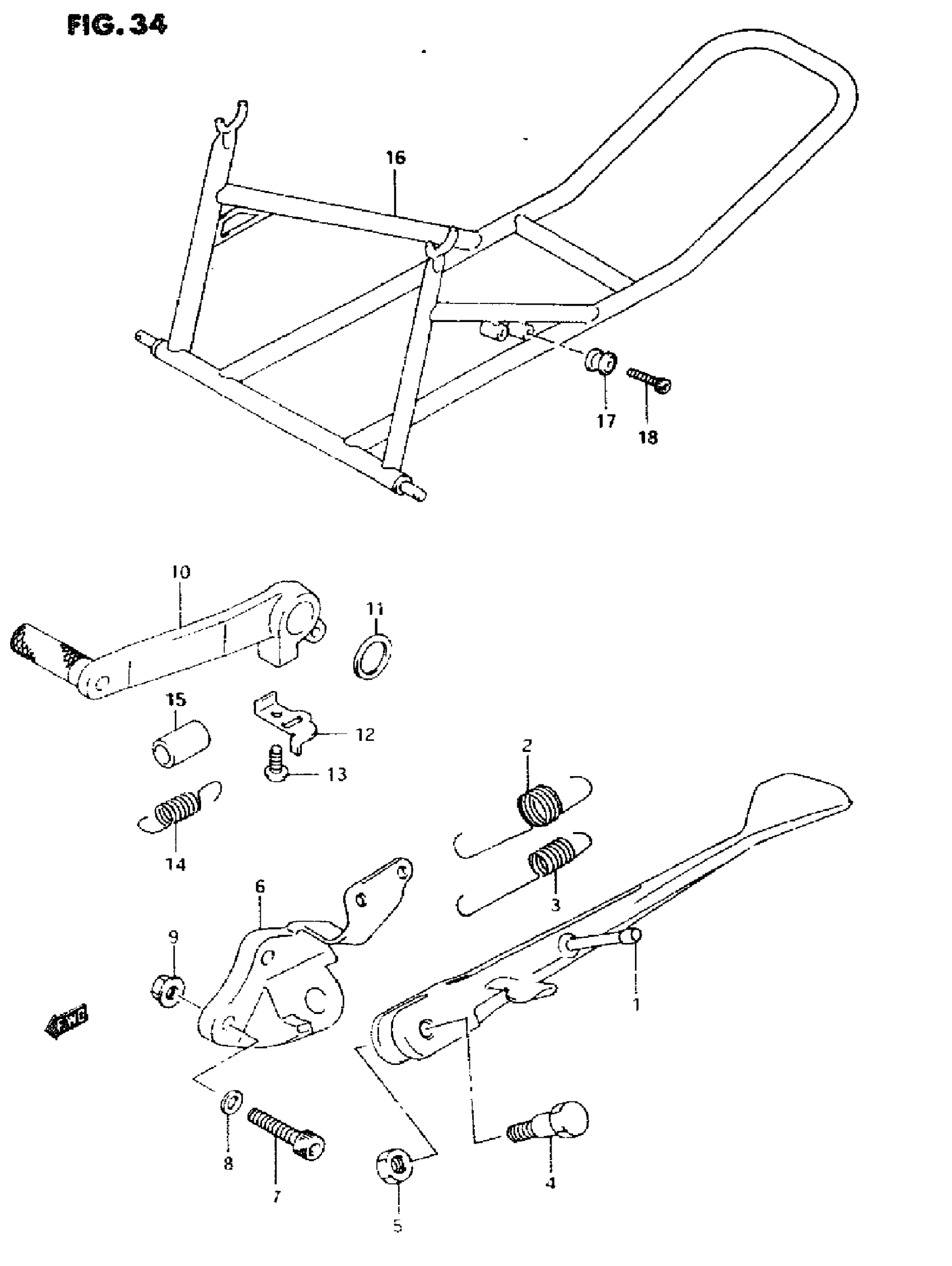

1995 Suzuki GSX-R750W Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-17E00

1
Out of stock

2

SPRING, INNER

09443-14058

1
Out of stock

3

SPRING, OUTER

09443-19011

1
Out of stock

4

SOLT

09111-10036

1
Out of stock

5

NUT | MODEL P

08310-00107

1
Out of stock

5

NUT | MODEL R/S

09159-10097

1
Out of stock

6

BRACKET, PROP STAND | MODEL P

42330-17E00

1
Out of stock

6

BRACKET, PROP STAND | MODEL R/S

42330-17E10

1
Out of stock

7

BOLT | MODEL P

07130-08357

2
Out of stock

7

BOLT | MODEL R/S This part replaces 07130-08353.

07130-0835B

2
Out of stock

8

WASHER

09164-08015

2
Out of stock

9

MT | MODEL P

08316-10087

2
Out of stock

9

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

2
Out of stock

10

PEDAL, BRAKE

43110-17E00

1
Out of stock

11

WASHER

09160-18022

1
Out of stock

12

HOOK, RETURN

43563-17E00

1
Out of stock

13

BOLT | MODEL P

01550-06127

1
Out of stock

13

BOLT, CLAMP | MODEL RIS This part replaces 01550-06123.

01550-0612A

1
Out of stock

14

SPRING

09443-13018

1
Out of stock

15

TUBE, SPRING

43261-17C00

1
Out of stock

16

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

1
Out of stock

17

HOLDER, STAND | OPT

61165-27A30

2
Out of stock

18

BOLT, STEERING DAMPER | OPT, MODEL P This part replaces 07110-08305.

07130-0830A

2
Out of stock

18

BOLT, STEERING DAMPER | OPT, MODEL R/S This part replaces 07130-08303.

07130-0830A

2
Out of stock
