1995 Suzuki GSX-R750W Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1995 Suzuki GSX-R750W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

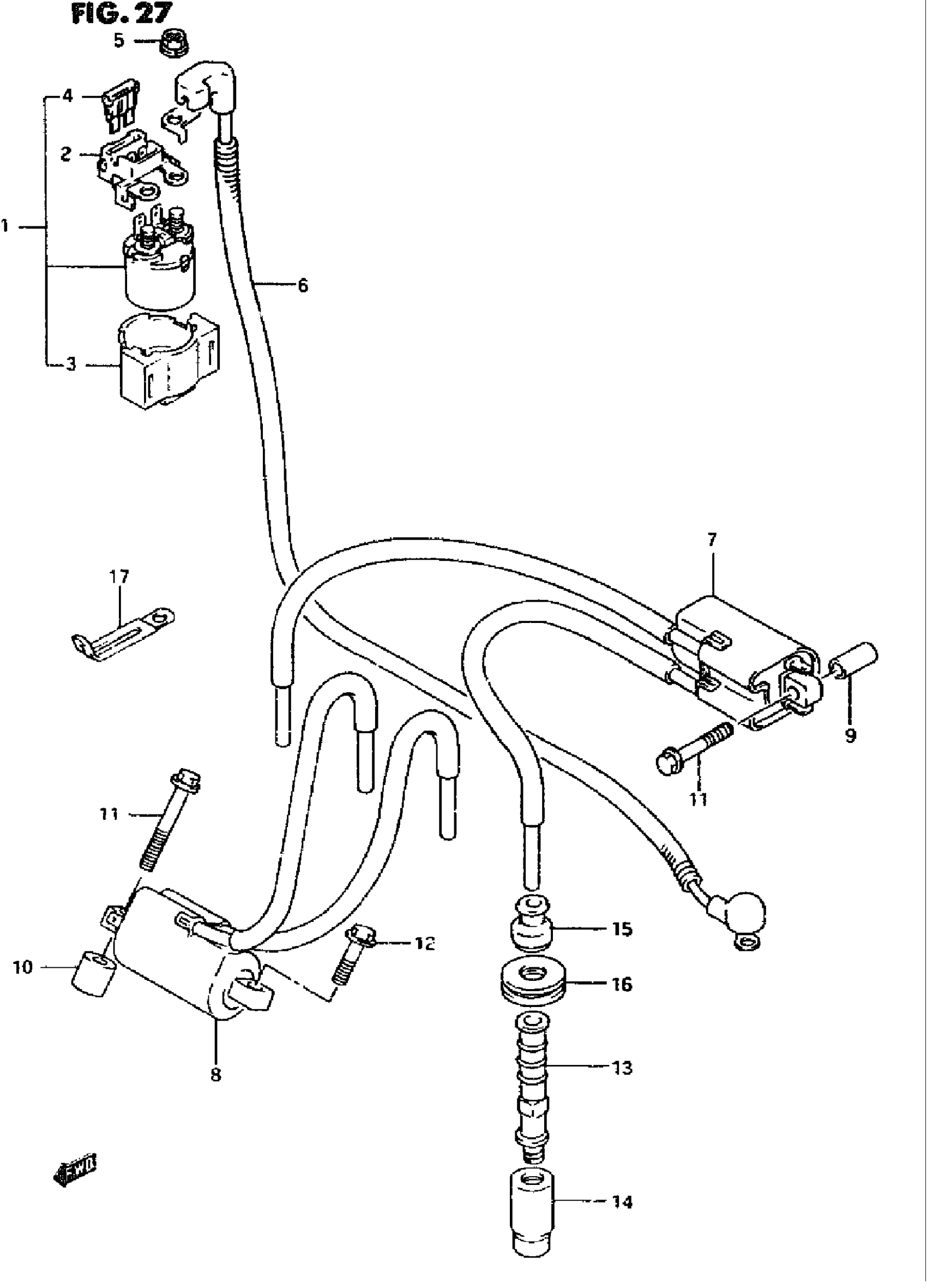

1995 Suzuki GSX-R750W Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY, STARTING MOTOR

31800-07D00

1
Out of stock

2

TERMINAL

31841-07D00

1
Out of stock

3

HOLDER

31892-07D00

1
Out of stock

4

FUSE (30A)

09481-30201

1
Out of stock

5

NUT This part replaces 08361-35066.

08361-3506A

2
Out of stock

6

LEAD WIRE, STARTING MOTOR | MODEL P This part replaces 33810-17E00.

33810-46E01

1
Out of stock

6

LEAD WIRE, STARTING MOTOR | MODEL R/S This part replaces 33810-17E01.

33810-46E01

1
Out of stock

7

COIL. IGNITION NO.1

33410-17E00

1
Out of stock

8

COIL, IGNITION NO.2

33420-17E00

1
Out of stock

9

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

10

SPACER. IGNITION CALL 2-3

33419-17E00

1
Out of stock

11

BOLT This part replaces 01550-06403.

01550-0640A

3
Out of stock

12

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

13

CAP, SPARK PLUG | MODEL P

33510-17E00

4
Out of stock

13

CAP, SPARK PLUG | MODEL R/S This part replaces 33510-17E10.

33510-17E11

4
Out of stock

14

SEAL, PLUG

33541-20C00

4
Out of stock

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

4
Out of stock

16

COVER | MODEL P/R This part replaces 33543-17E00.

33543-17E01

4
Out of stock

16

COVER | MODEL S

33543-17E01

4
Out of stock

17

CLAMP(L:80) | MODEL P/R This part replaces 09404-06404.

09404-06036

2
Out of stock

17

CLAMP | MODEL S This part replaces 09404-06431.

09404-06039

2
Out of stock
← Battery Handle Switch →
