1986 Suzuki GSX-R750R Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1986 Suzuki GSX-R750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

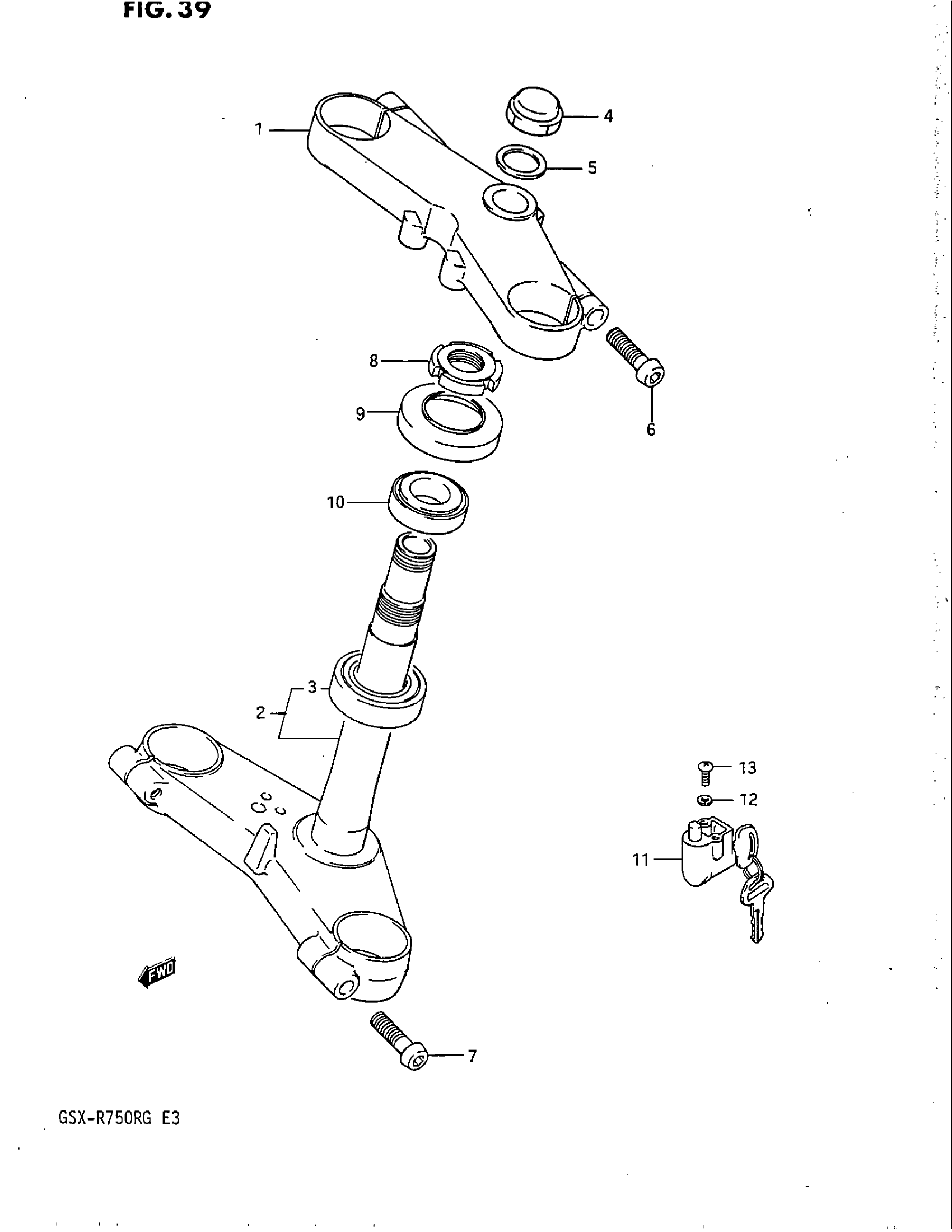

1986 Suzuki GSX-R750R Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, STEERING STEM (BLACK) This part replaces 51311-27A40.

51311-27A00-291

1
Out of stock

2

STEM, STEERING | Includes Item(s) 3

51410-27A10

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

NUT This part replaces 51353-27A40.

51353-28A10

1
Out of stock

5

WASHER, STEM This part replaces 51356-27A00.

51356-24B01

1
Out of stock

6

BOLT, UPPER

51352-27A40

2
Out of stock

7

BOLT, UPPER This part replaces 51451-27A40.

51451-41C00

2
Out of stock

8

NUT, STEERING STEM

51631-28000

1
Out of stock

9

DUST COVER, STEERING UPPER

51643-27A00

1
Out of stock

10

BEARING

09265-25008

1
Out of stock

11

LOCK ASSY, STEERING

51900-08014-KEY

1
Out of stock

12

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

13

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock
