1986 Suzuki GSX-R750R Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1986 Suzuki GSX-R750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

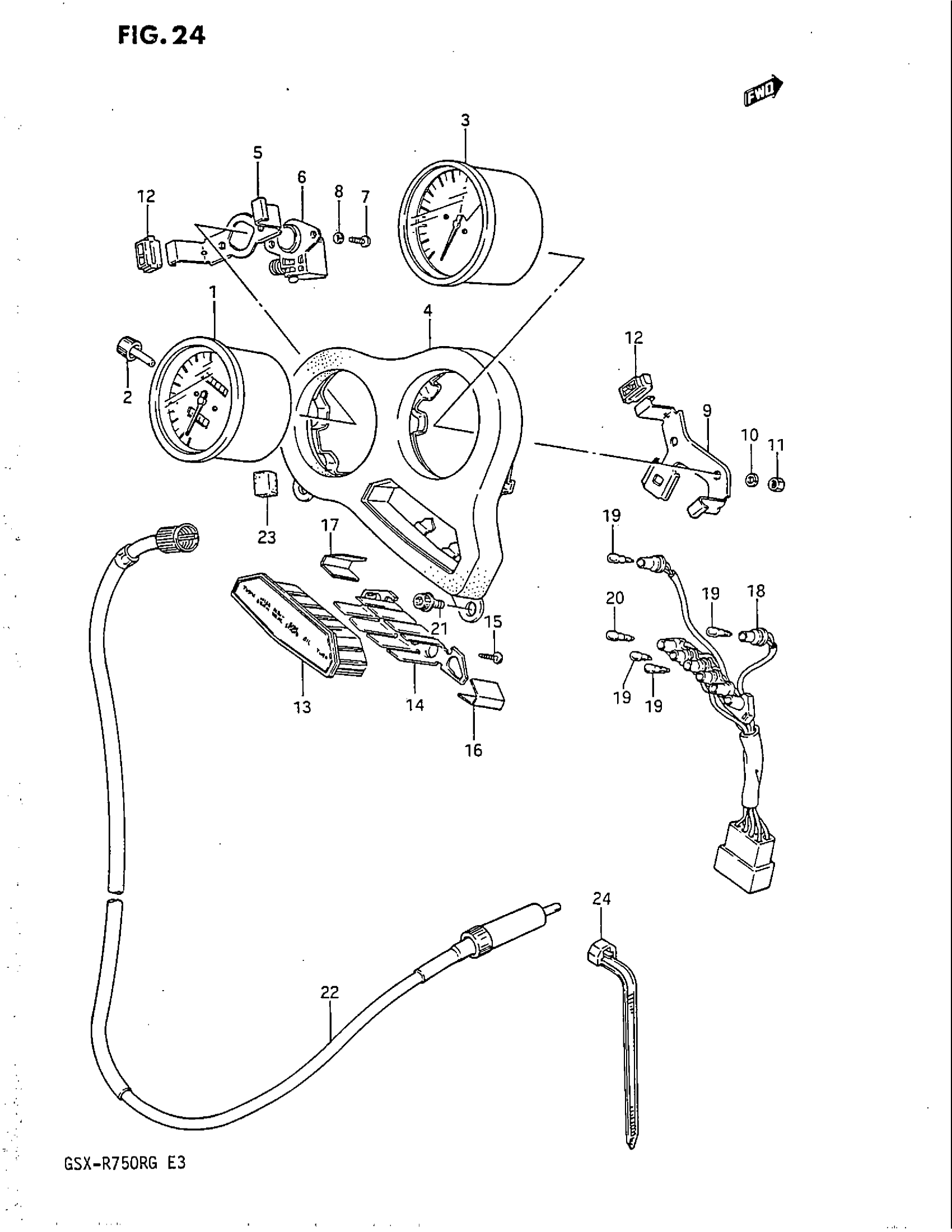

1986 Suzuki GSX-R750R Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34110-28A30

1
Out of stock

2

KNOB, TRIP

34124-27A00

1
Out of stock

3

TACHOMETER

34210-27A00

1
Out of stock

4

BRACKET, METER

34950-27A11

1
Out of stock

5

PLATE, SPEEDOMETER

34111-27A00

1
Out of stock

6

BOX, METER GEAR

34131-27A00

1
Out of stock

7

SCREW This part replaces 02112-04105.

02112-3410A

2
Out of stock

8

LOCK WASHER This part replaces 08321-21045.

08321-0104A

2
Out of stock

9

PLATE, TACHOMETER

34211-27A00

1
Out of stock

10

WASHER

34181-27A00

2
Out of stock

11

NUT

08310-21035

2
Out of stock

12

CUSHION

34189-27A00

4
Out of stock

13

CASE, PILOT LAMP

36381-27A10

1
Out of stock

14

PLATE, PILOT LAMP

36382-27A00

1
Out of stock

15

SCREW This part replaces 36387-27A00.

36457-45100

2
Out of stock

16

PLATE, TURN RH

36383-27A00

1
Out of stock

17

PLATE, TURN LH

36384-27A00

1
Out of stock

18

SOCKET, METER

34170-27A10

1
Out of stock

19

BULB (12V,3W)

09471-12085

4
Out of stock

20

BULB (12V,1.7W)

09471-12100

4
Out of stock

21

BOLT, OIL GALLERY This part replaces 07120-06125.

07120-0612B

3
Out of stock

22

CABLE ASSY, SPEEDOMETER This part replaces 34910-27A01.

34910-06B00

1
Out of stock

23

CUSHION This part replaces 34191-27A00.

34161-03D00

1
Out of stock

24

CLAMP

09407-11401

1
Out of stock
