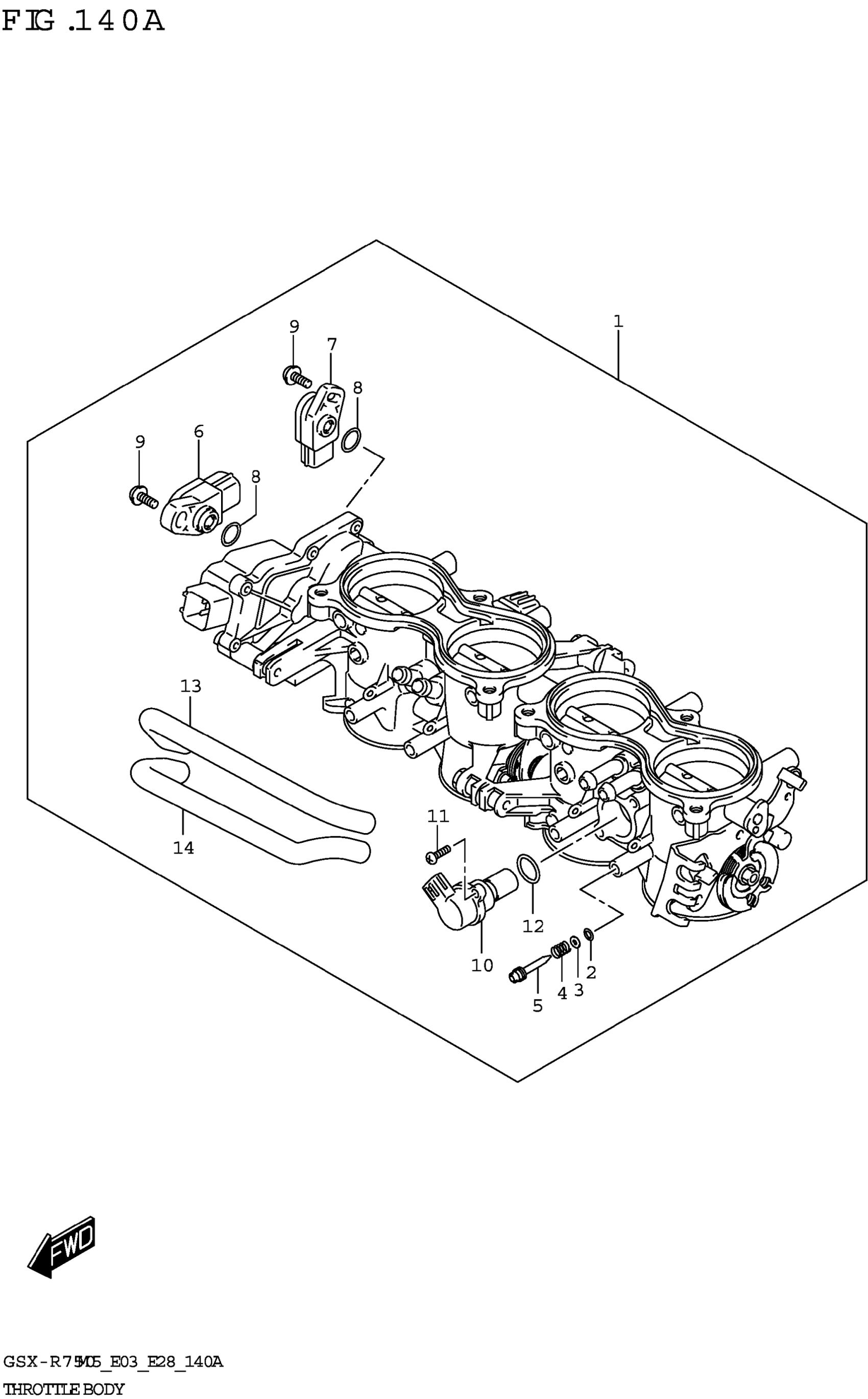

Suzuki GSX-R750M5 (2025) THROTTLE BODY (E03,E28) Diagram

#

Description
Price

1

BODY ASSY,THROT

13406-15J21

$1,771.92

2

O-RING

13295-29901

$3.97

3

WASHER

13606-47A00

$3.70

4

SPRING,THROTTLE SCREW

13268-48700

$3.97

5

SCREW

13269-33E00

$10.45

6

.SENSOR

13580-14J00

$169.70

7

.SENSOR

13580-14J10

$191.20

8

.O-RING

13575-29G01

$2.97

9

.SCREW

13605-02F00

$3.50

10

.MOTOR ASSY

18117-14J01

$436.22

11

.SCREW

13605-37H00

Unavailable

12

.O-RING

13679-37H00

$8.21

13

.HOSE

13698-14J01

$48.18

14

.HOSE

13698-14J11

$44.62
