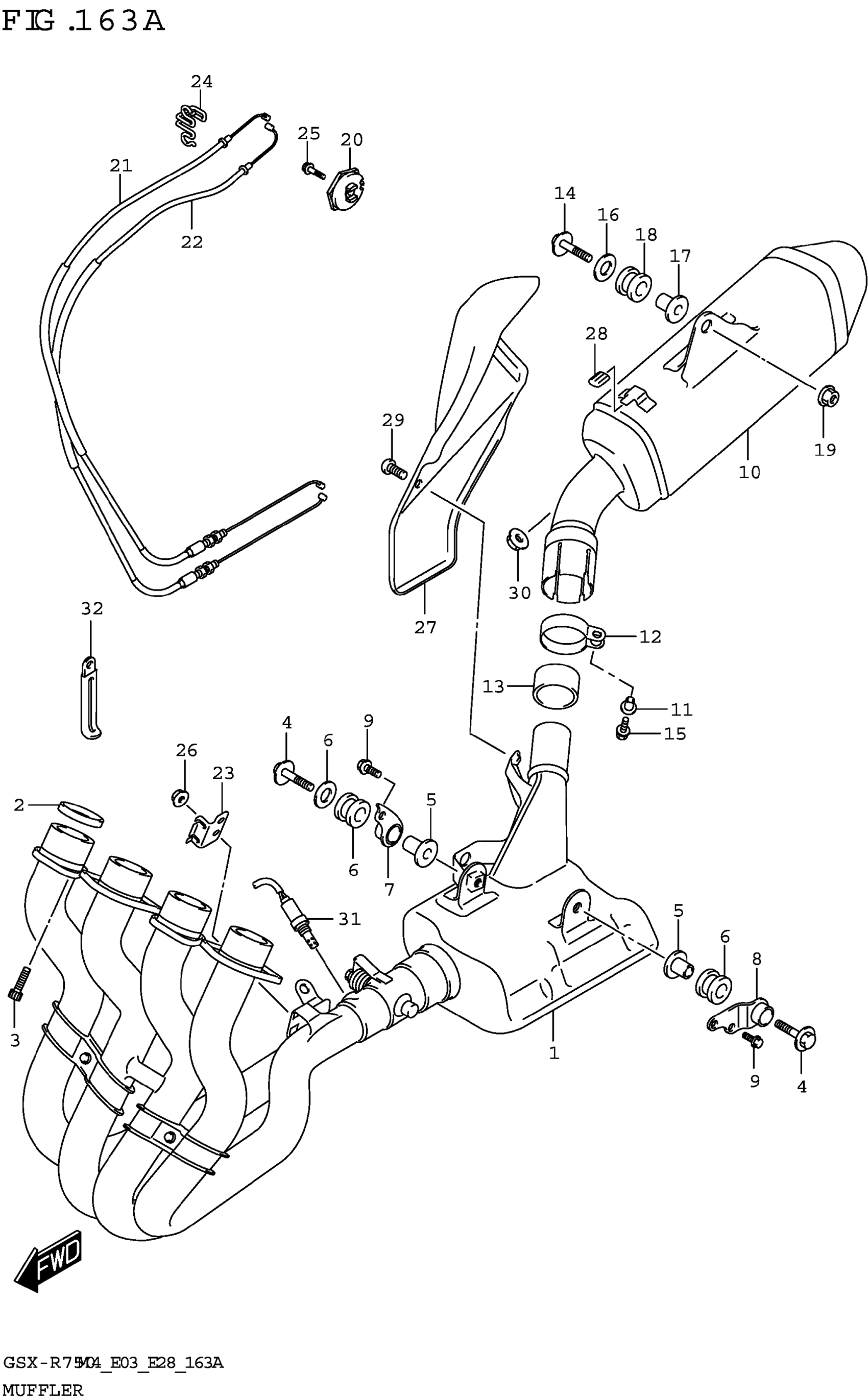

Suzuki GSX-R750M4 (2024) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-15J00

$2,535.13

2

.GASKET,EXHAUST

14181-46E10

$6.91

3

BOLT

07130-0825A

$2.82

4

BOLT (8X45)

09118-08152-A05

$4.89

5

SPACER (8.6X12X24.2)

09180-08152

$5.42

6

CUSHION (12X30X24)

09320-12077

$11.16

7

BRACKET,CHAMBER SPRT,R

14770-14J00

$20.42

8

BRACKET,CHAMBER SPRT,L

14773-14J00

$26.12

9

BOLT (8X16)

01550-0816A

$2.38

10

BODY,MUFFLER

14310-15J00-H01

$2,421.57

11

SPACER,MUF CLAMP

14458-14J00

$8.32

12

CLAMP,MUF CONN

14459-21H40

$29.32

13

CONNECTOR,MUF

14771-42F10

$22.13

14

BOLT (8X45)

09103-08358

$3.18

15

BOLT (8X40)

09103-08392

$3.52

16

WASHER (8.5X28X1.5)

09160-08142

$2.80

17

SPACER (8.6X12X24.2)

09180-08152

$5.42

18

CUSHION (12X30X24)

09320-12048

$4.75

19

NUT

08361-2508A

$2.01

20

PULLEY,CONTROLLER

11269-18G01

$32.50

21

CABLE,EXH VALVE NO.1

11276-14J00

$89.40

22

CABLE,EXH VALVE NO.2

11277-14J00

$89.40

23

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$11.18

24

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$8.32

25

BOLT

01547-0516A

$1.68

26

NUT (6X12)

08316-1006A

$2.25

27

COVER,MUFFLER FR

14780-14J00

$298.42

28

GROMMET

14795-10FA0

$5.50

29

SCREW (6X10)

09139-06172

$2.82

30

CUSHION (8.4X18X6)

09320-08066

$7.67

31

SENSOR,OXYGEN

18213-23H01

$440.57

32

CLAMP (L:45)

09404-06429

$1.88
