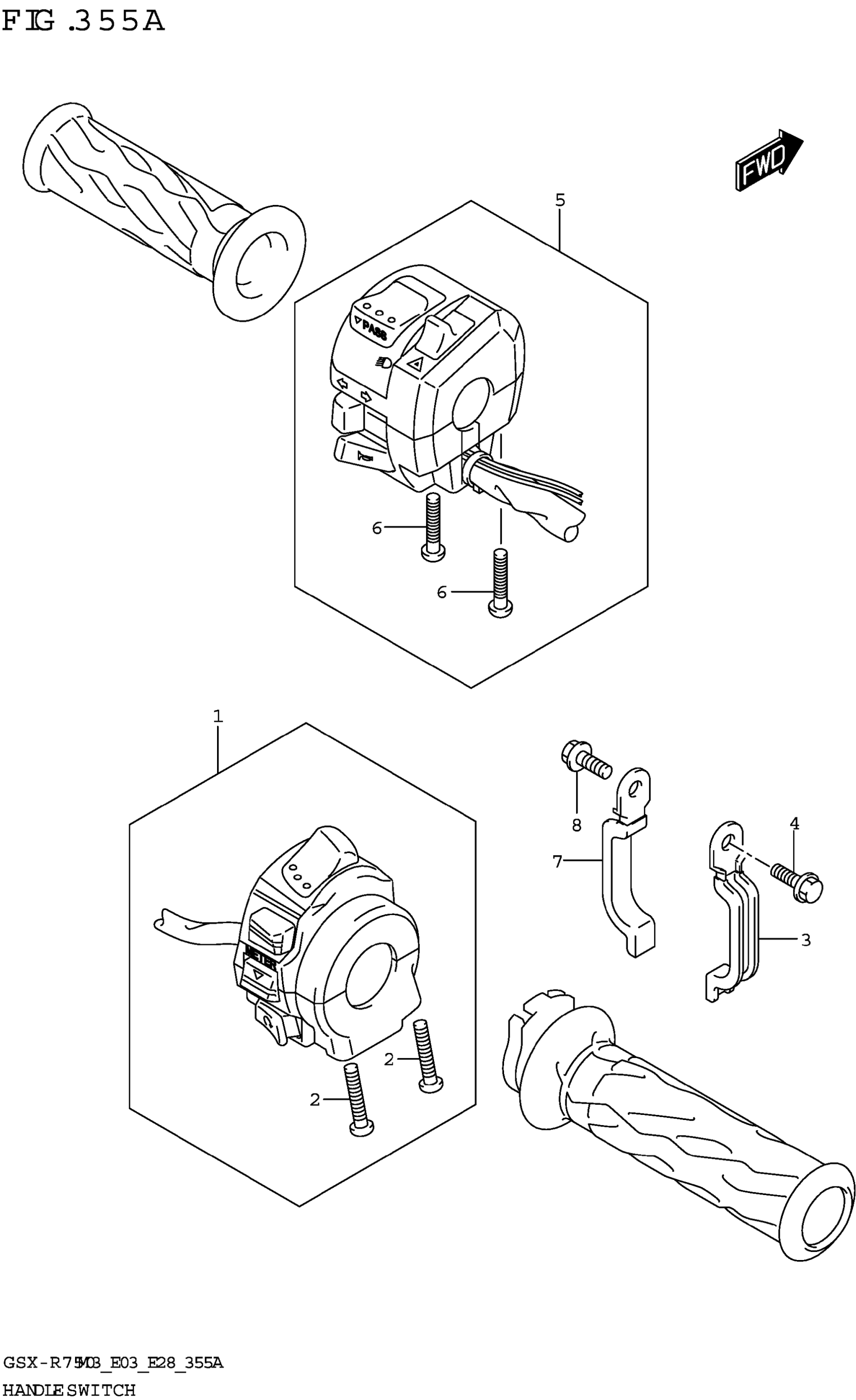

Suzuki GSX-R750M3 (2023) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HANDLE,R

37200-47H30

$194.42

2

.SCREW

02112-0530B

$1.45

3

CLAMP

09403-06328

$5.65

4

BOLT

01547-0612A

$2.01

5

SWITCH ASSY,HANDLE,L

37400-14J00

$321.23

6

.SCREW

02112-0535B

$1.95

7

CLAMP

09403-06328

$5.65

8

BOLT

01547-0612A

$2.01
