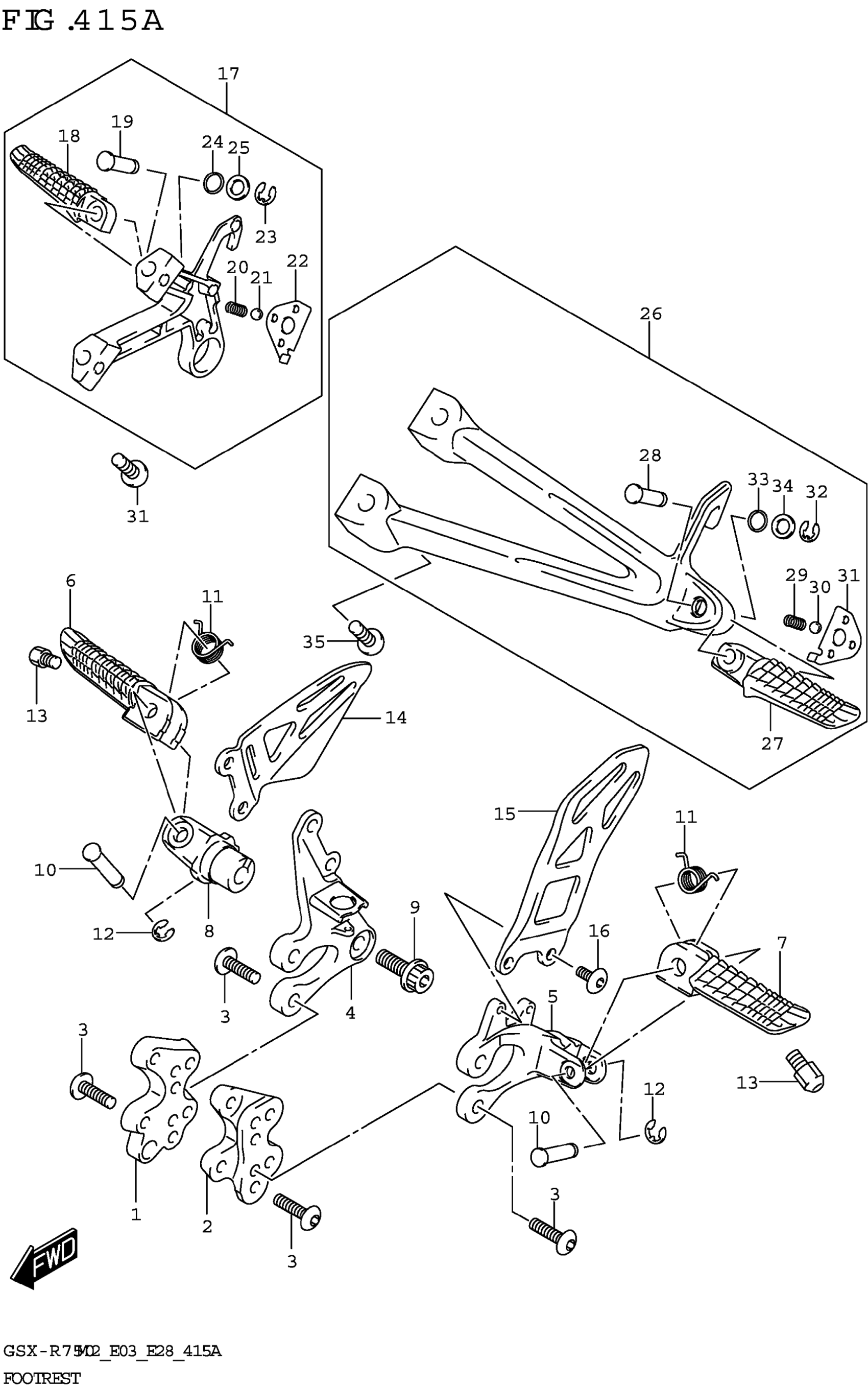

Suzuki GSX-R750M2 (2022) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST NO.1,R

43541-14J10

$37.87

2

BRACKET,FR FOOTREST NO.1,L

43551-14J10

$37.87

3

BOLT (8X23)

09106-08186

$3.18

4

BRACKET,FR FOOTREST NO.2,R

43511-14J10

$87.58

5

BRACKET,FR FOOTREST NO.2,L

43521-47H20

$83.18

6

BAR,FRONT FOOTREST,R

43516-37H10

$38.92

7

BAR,FRONT FOOTREST,L

43526-37H10

$49.81

8

HOLDER,FOOTREST

43531-41G20

$100.83

9

BOLT (10X28)

09106-10064

$4.55

10

PIN

09208-08018

$2.80

11

SPRING,FRONT FOOTREST

43581-47H00

$3.19

12

E-RING

08332-1106A

$1.46

13

BOLT,BANK SENSOR

43576-07D10

$7.13

14

GUARD, FOOTREST LH

43571-47H40

Unavailable

15

GUARD, FOOTREST LH

43576-47H30

$188.90

16

SCREW,FOOTREST GUARD,L

43577-35F10

$3.81

17

FOOTREST ASSY,PILLION,R

43600-14J30

$219.07

18

BAR,PILLION FOOTREST,R

43611-37H30

$57.52

19

.PIN

09208-08020

$3.62

20

SPRING

09440-05003

$1.48

21

BALL

06111-07004

$1.25

22

.PLATE,PILLION FOOTREST,R

43816-47H00

Unavailable

23

E-RING

08332-1106A

$1.46

24

.O-RING (D:2.4,ID:6.9)

09280-08013

$2.67

25

WASHER This part replaces 09160-08091.

09160-08082

$1.70

26

FOOTREST ASSY,PILLION,L

43700-14J30

$209.83

27

BAR,PILLION FOOTREST,L

43621-37H30

$62.92

28

.PIN

09208-08020

$3.62

29

SPRING

09440-05003

$1.48

30

BALL

06111-07004

$1.25

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$8.21

32

E-RING

08332-1106A

$1.46

33

.O-RING (D:2.4,ID:6.9)

09280-08013

$2.67

34

WASHER This part replaces 09160-08091.

09160-08082

$1.70

35

BOLT (8X23)

09106-08186

$3.18
