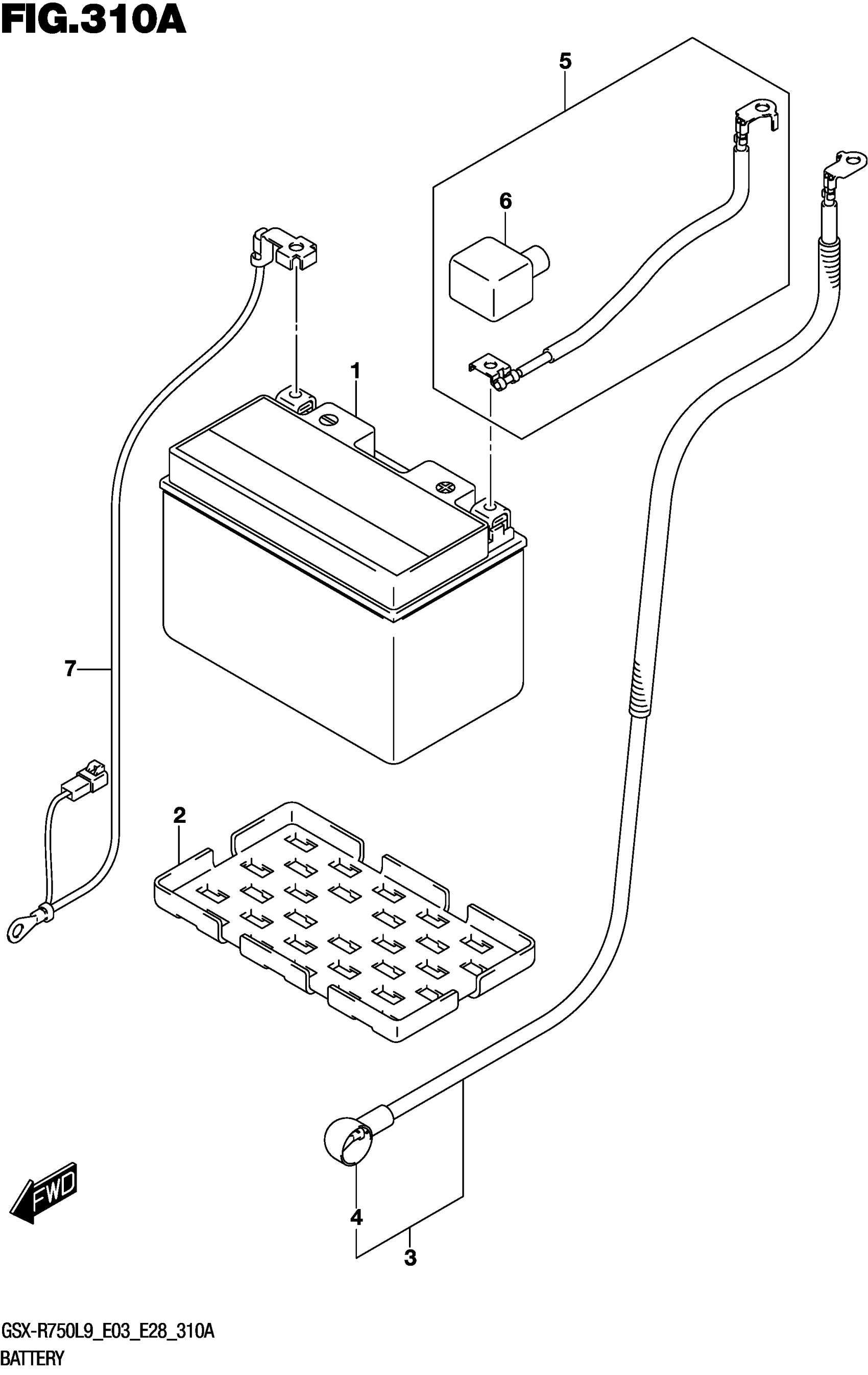

Suzuki GSX-R750L9 (2019) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-14G02.

33610-14G11

$142.85

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-14G02.

33610-14G11

$142.85

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

WIRE,STARTER MOTOR LEAD This part replaces 33810-14J00.

33810-14J01

$43.40

4

.CAP,STARTER MOTOR

33624-18H10

$11.18

5

WIRE,BATTERY PLUS LEAD This part replaces 33820-14J00.

33820-14J01

$24.73

6

.CAP,BATTERY PLUS

33624-16G00

$7.67

7

WIRE,BATTERY MINUS This part replaces 33860-14J00.

33860-14J01

$41.23
