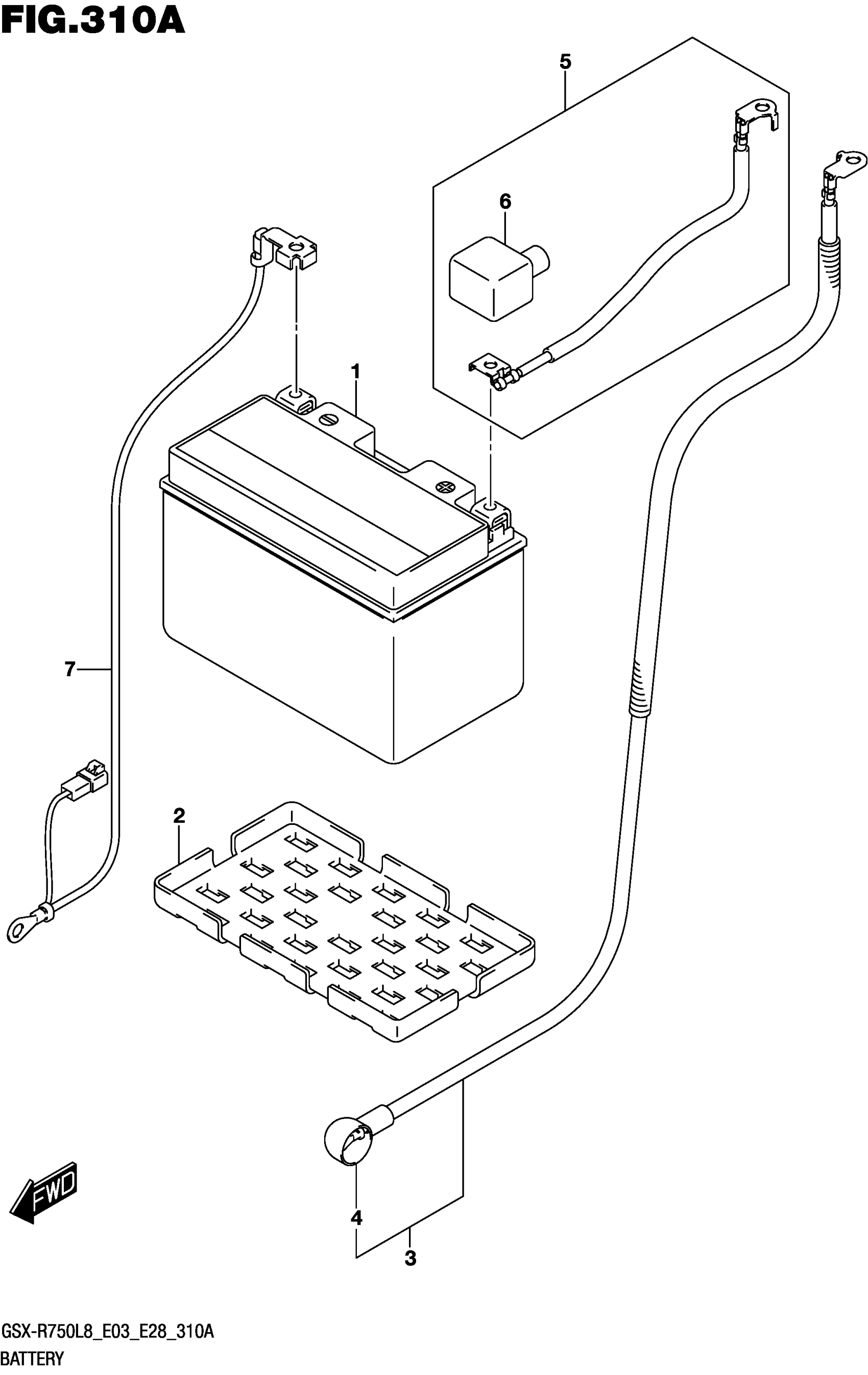

Suzuki GSX-R750L8 (2018) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY

33630-14G01

Unavailable

1

(FT12A-BS, 12V10AH)

33630-14G01

Unavailable

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

WIRE,STARTER MOTOR LEAD This part replaces 33810-14J00.

33810-14J01

$43.40

4

.CAP, STARTER MOTOR TERMINAL

33624-18H10

$11.18

5

WIRE,BATTERY PLUS LEAD This part replaces 33820-14J00.

33820-14J01

$24.73

6

.CAP, BATTERY PLUS

33624-16G00

$5.44

7

WIRE,BATTERY MINUS This part replaces 33860-14J00.

33860-14J01

$41.23
