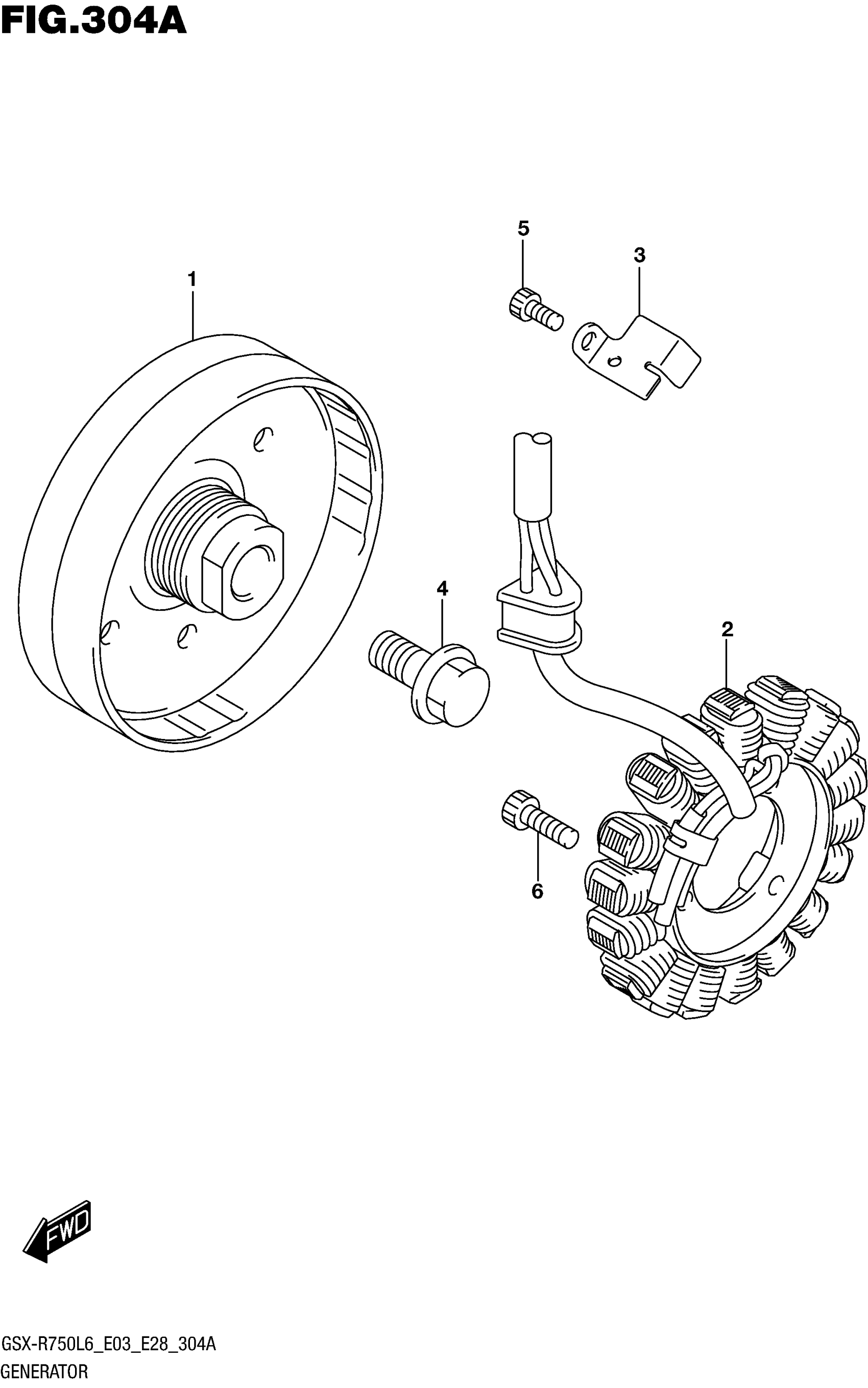

Suzuki GSX-R750L6 (2016) GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

31402-01H20

$655.18

2

STARTER ASSY This part replaces 31401-01H20.

31401-01H21

$235.09

3

CLAMP, GEN LEAD

32371-13E30

$5.63

4

BOLT, GENERATOR ROTOR

31791-14J00

$8.32

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0620A

$2.50
