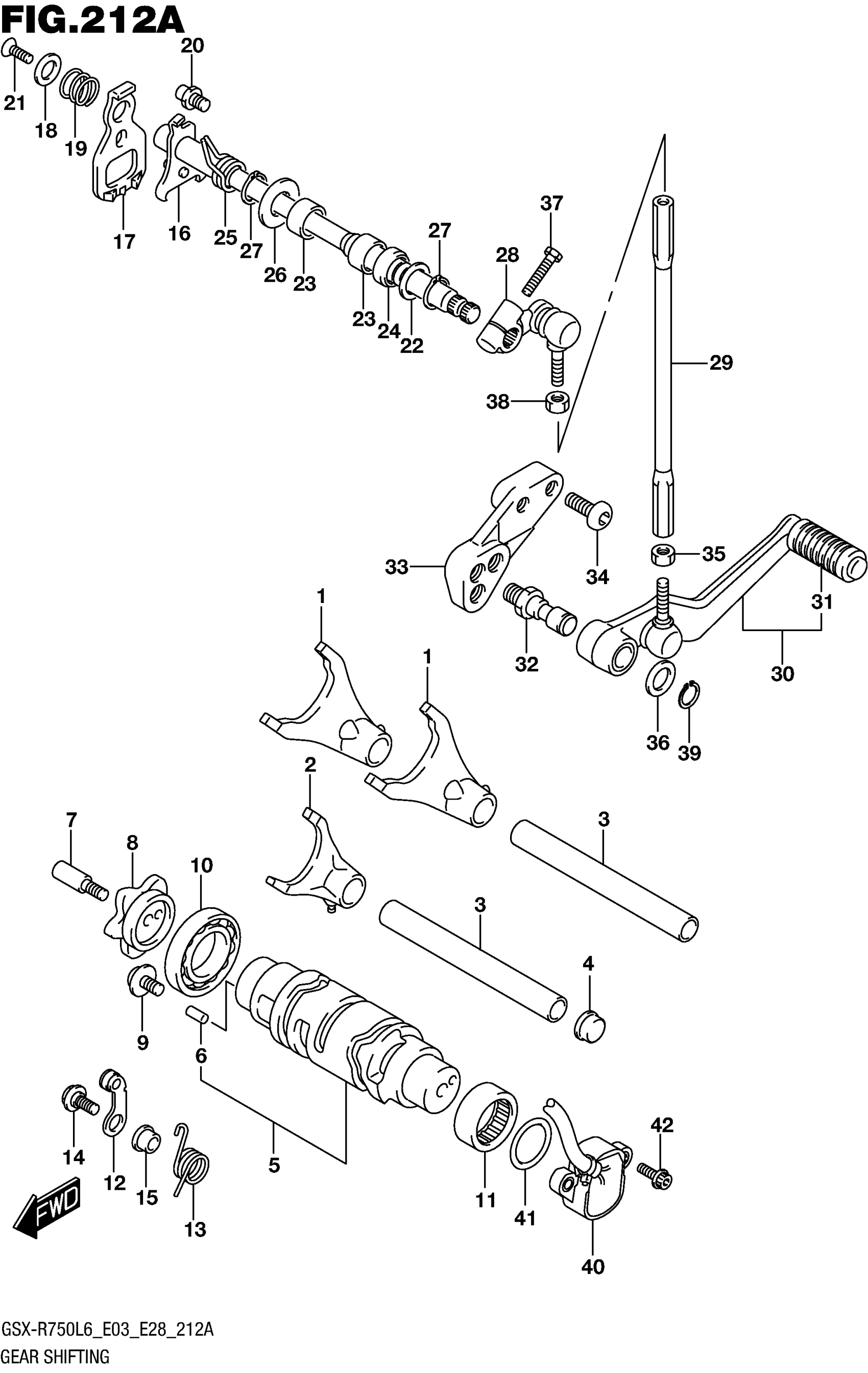

Suzuki GSX-R750L6 (2016) GEAR SHIFTING Diagram

FORK, GEAR SHIFT NO.1

25211-01H01

$119.43

FORK,GEAR SHIFT NO.3 This part replaces 25231-01H01.

25231-01H02

$86.33

SHAFT, GEAR SHIFT FORK

25411-35F00

$33.02

PLUG, GEAR SHIFT FORK

25712-37H00

$8.55

CAM,GEAR SHIFT

25310-01H00

$285.47

PIN (4X13.8)

04221-04089

$1.10

BOLT, GEAR SHIFT CAM

25312-42F01

$7.28

PLATE, GEAR SHIFT CAM

25381-13E30

$63.98

SCREW (6X12)

09136-06147

$3.48

BEARING (25X47X8)

09262-25006

$23.05

BEARING (25X32X12)

09263-25018

$19.30

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

SPRING, SHIFT CAM STOPPER

25355-01H00

$5.75

BOLT,SHIFT CAM STOPPER ARM

25357-01H00

$5.43

SPACER, CAM STOPPER

25358-01H00

$12.35

SHAFT,GEAR SHIFT

25510-01H00

$131.65

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$22.32

WASHER, GEAR SHIFT

25519-01H00

$6.75

SPRING, GEAR SHIFT RETURN

25518-01H00

Unavailable

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

SCREW (6X16)

09126-06014

$2.07

WASHER (14X29X0.8) | LH

09160-14016

$1.91

BEARING (14X20X12)

09263-14027

$12.21

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

SPRING

09444-20001

$4.80

SHIM (14X24X1)

09181-14195

$3.30

CIRCLIP

08331-3114A

$1.89

ARM,GEAR SHIFT LINK This part replaces 25520-01H10.

25520-01H11

$46.09

ROD,GEAR SHIFT LINK

25525-01H10

$29.27

LEVER ASSY,GEAR SHIFT This part replaces 25600-14J10.

25600-14J11

$77.84

.RUBBER, GEAR PEDAL

25652-20C00

$4.98

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.29

BRACKET,GEAR SHIFT LEVER

25681-14J00

$81.72

BOLT (8X20)

09106-08167

$3.15

NUT

09140-06025

$1.84

WASHER (12.5X20X1)

09160-12011

$1.48

BOLT

01500-0625A

$1.77

NUT

08310-0006A

$1.83

CIRCLIP

08331-3112A

$1.77

SENSOR ASSY,GEAR POSITION This part replaces 37730-14J00.

37730-14J01

$67.60

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

BOLT (5X16)

09106-05023

$2.80
