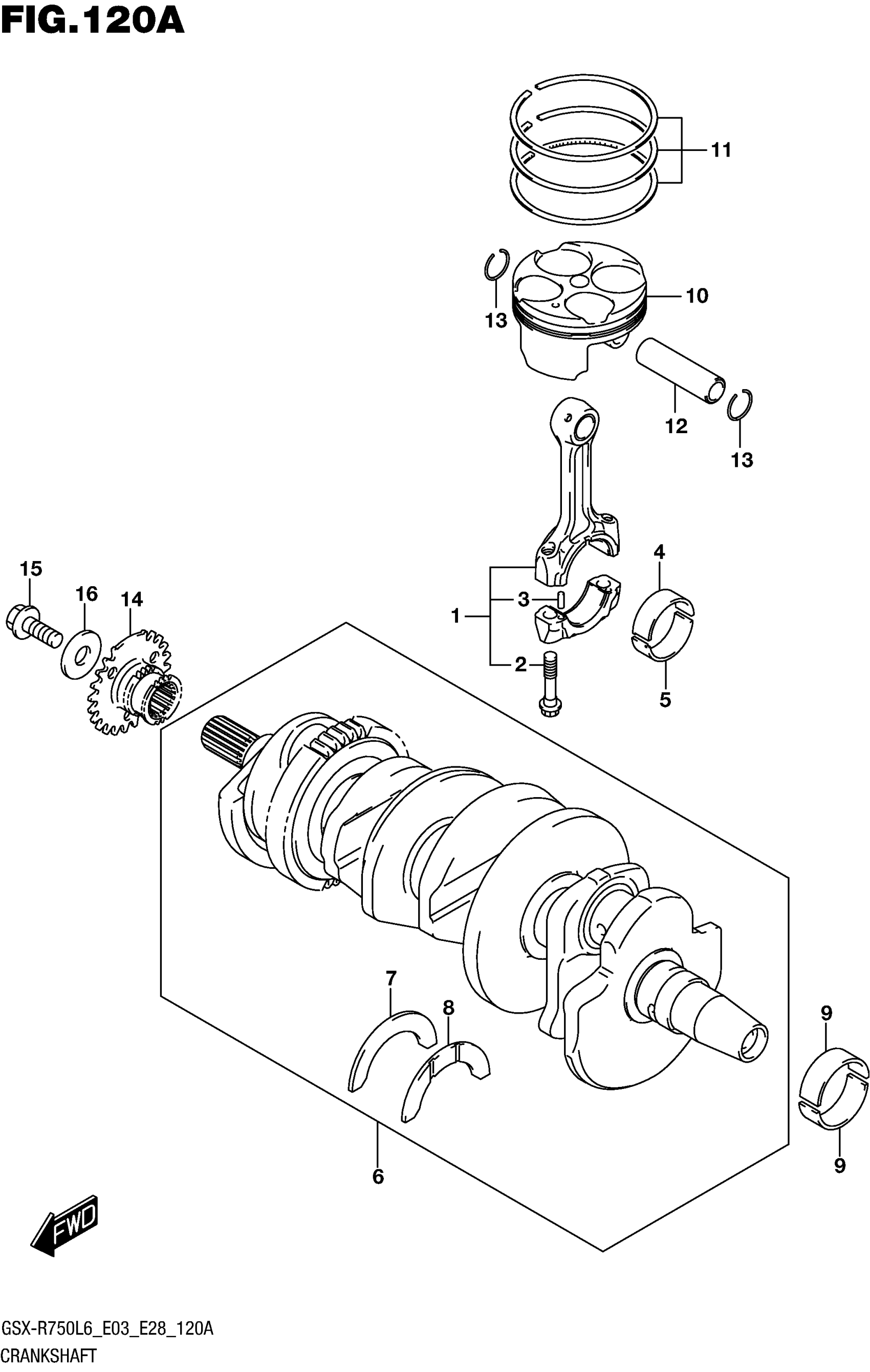

Suzuki GSX-R750L6 (2016) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-15J00

$263.33

2

.BOLT

12163-35F00

$9.36

3

PIN (4X13.8)

04221-04089

$1.10

4-1

BEARING,CRANK PIN

12164-15J00-0A0

$31.85

4-2

BEARING,CRANK PIN

12164-15J00-0B0

$31.85

4-3

BEARING,CRANK PIN

12164-15J00-0C0

$31.85

4-4

BEARING,CRANK PIN

12164-15J00-0D0

$31.85

5-1

BEARING,CRANK PIN

12164-30G00-0A0

$20.22

5-2

BEARING,CRANK PIN

12164-30G00-0B0

$14.34

5-3

BEARING,CRANK PIN

12164-30G00-0C0

$13.78

5-4

BEARING,CRANK PIN

12164-30G00-0D0

$20.58

6

CRANKSHAFT SET

12000-02850

$1,939.15

7

.BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$8.95

8-1

.BEARING, THRUST LH (RED)

12228-17E00-0A0

$12.85

8-2

.BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.12

8-3

.BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.12

8-4

.BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$8.95

8-5

.BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

8-6

.BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$13.10

9-1

BEARING,CRANKSHAFT

12229-02H00-0A0

$17.78

9-2

BEARING,CRANKSHAFT

12229-02H00-0B0

$17.21

9-3

BEARING,CRANKSHAFT

12229-02H00-0C0

$17.21

9-4

BEARING,CRANKSHAFT

12229-02H00-0D0

$17.78

9-5

BEARING,CRANKSHAFT

12229-02H00-0E0

$25.08

10

PISTON

12111-02H10-0F0

$256.80

11

RING SET,PISTON

12140-02H00

$85.10

12

PIN,PISTON

12151-41G00

$14.03

13

CIRCLIP

09381-15001

$1.43

14

SPROCKET, CAM CHAIN (NT:17)

12731-01H00

$146.42

15

BOLT (10X23)

09103-10189

$3.70

16

WASHER

08211-10285

$3.19
