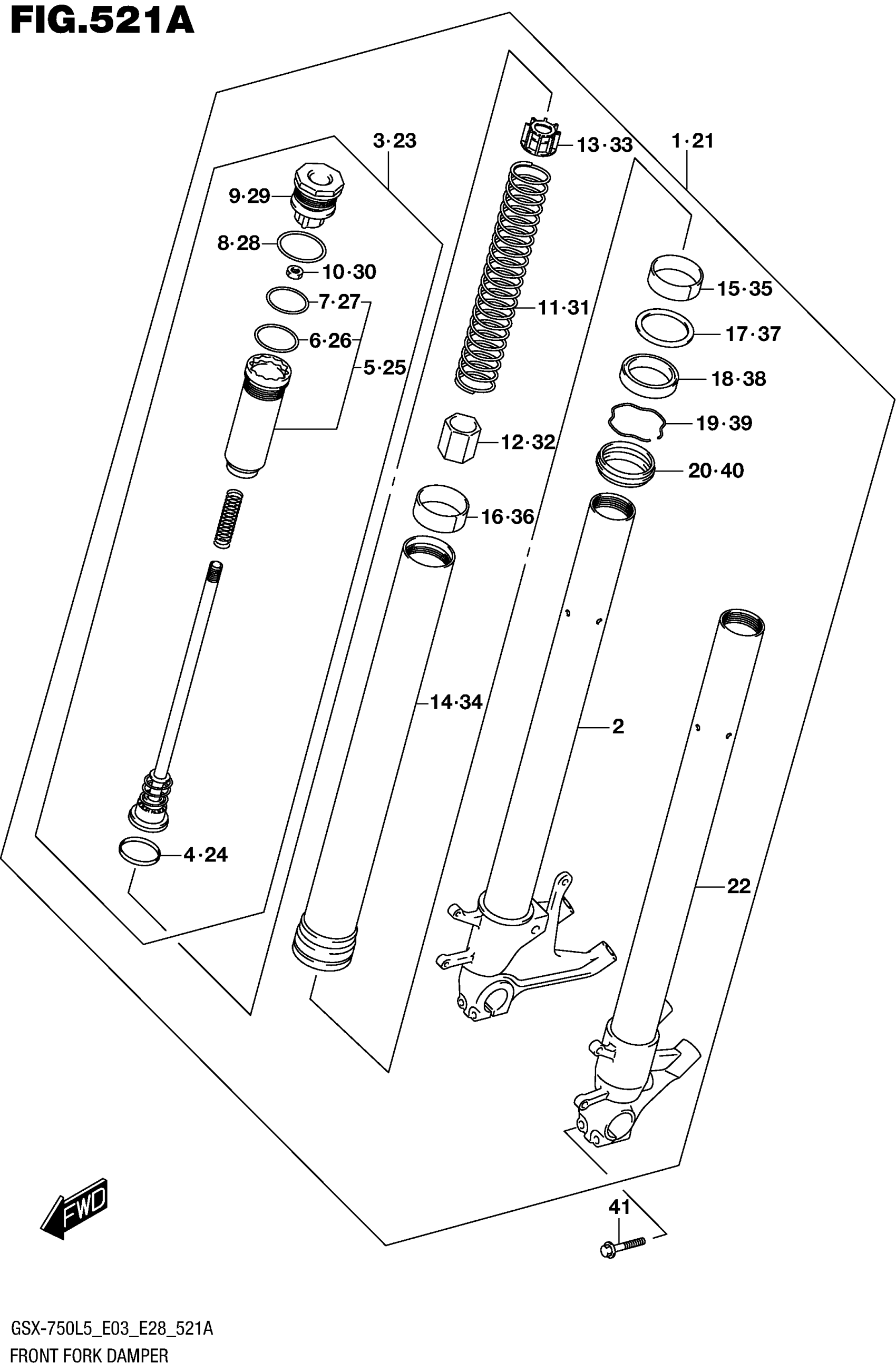

Suzuki GSX-R750L5 (2015) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,R This part replaces 51103-15J10.

51103-15J11

$1,924.75

2

.TUBE,INNER,R

51110-14J00

$959.40

3

ROD, PISTON

52110-15J00

Unavailable

4

RING, PISTON

51118-14J00

$8.64

5

CASE, ROD GUIDE

51174-14J00

$170.68

6

PISTON RING

51118-14J10

$59.64

7

...O-RING

51187-14J00

$3.34

8

..O-RING,FORK BOLT

51187-01H00

$6.21

9

BOLT

51189-14J00

$208.25

10

NUT

51827-29G00

Unavailable

11

SPRING

51171-15J10

$176.90

12

COLLAR, SPRING

51176-14J10

$28.13

13

COLLAR, SPRING

51175-14J00

$10.82

14

TUBE, OUTER

51131-15J00

$761.62

15

BUSH, GUIDE

51152-01H10

$16.70

16

BUSH, SLIDE

51152-14J00

$13.01

17

SPACER, SEAL

51168-38B00

$6.12

18

SEAL, OIL

51153-01H10

$24.63

19

RING, STOPPER

51556-38B00

$6.61

20

SEAL, DUST

51173-01H00

$10.66

21

DAMPER FRONT,L This part replaces 51104-15J10.

51104-15J11

$1,629.67

22

.TUBE,INNER,L

51120-14J00

$977.50

23

ROD, PISTON

52110-15J00

Unavailable

24

RING, PISTON

51118-14J00

$8.64

25

CASE, ROD GUIDE

51174-14J00

$170.68

26

PISTON RING

51118-14J10

$59.64

27

...O-RING

51187-14J00

$3.34

28

..O-RING,FORK BOLT

51187-01H00

$6.21

29

BOLT

51189-14J00

$208.25

30

NUT

51827-29G00

Unavailable

31

SPRING

51171-15J10

$176.90

32

COLLAR, SPRING

51176-14J10

$28.13

33

COLLAR, SPRING

51175-14J00

$10.82

34

TUBE, OUTER

51131-15J00

$761.62

35

BUSH, GUIDE

51152-01H10

$16.70

36

BUSH, SLIDE

51152-14J00

$13.01

37

SPACER, SEAL

51168-38B00

$6.12

38

SEAL, OIL

51153-01H10

$24.63

39

RING, STOPPER

51556-38B00

$6.61

40

SEAL, DUST

51173-01H00

$10.66

41

BOLT

51321-36F00

$5.44
