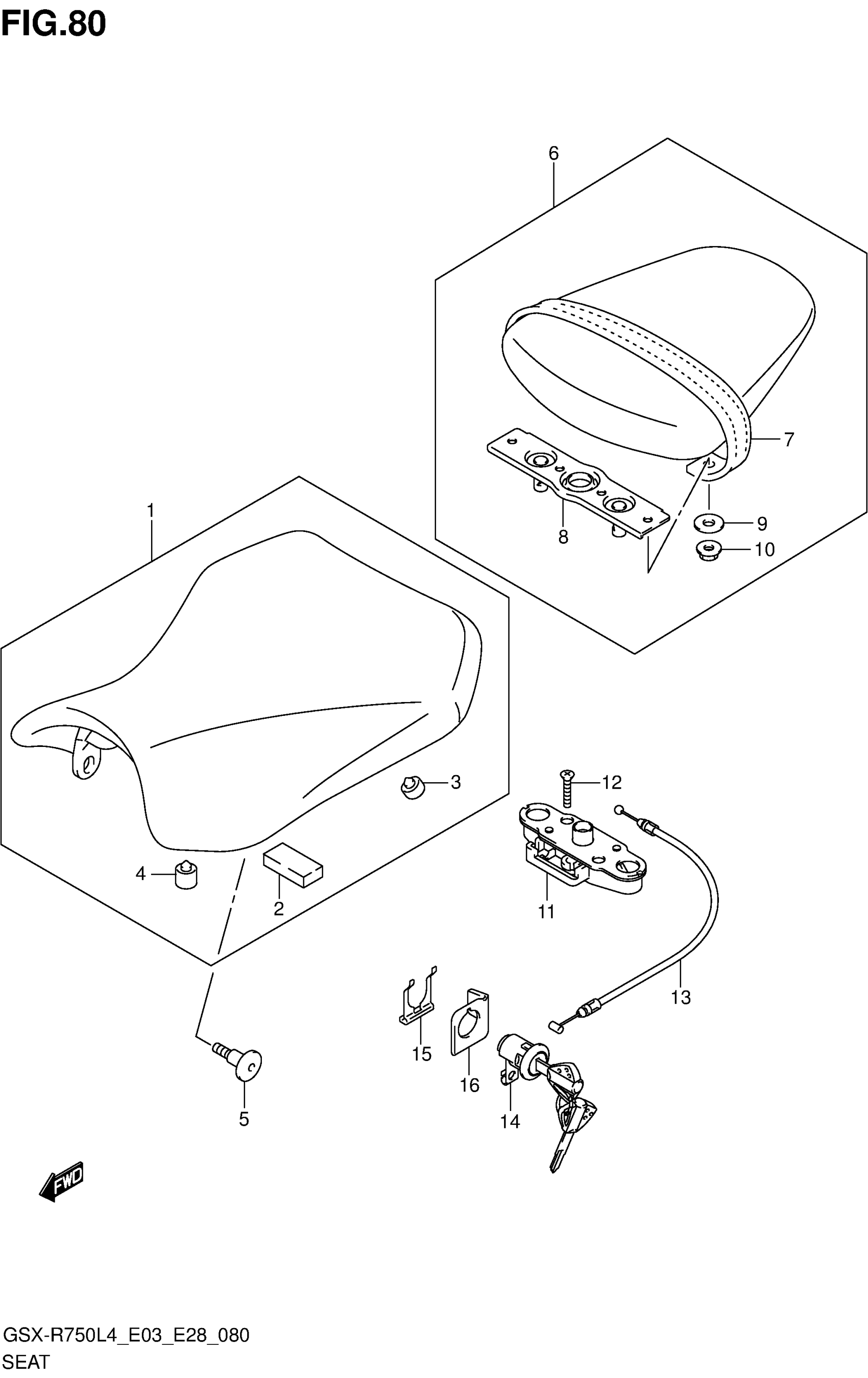

Suzuki GSX-R750L4 (2014) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-14J10-DW2.

45100-14J11-DW2

$256.07

2

CUSHION

45149-37H00

$7.77

3

CUSHION

09321-10011

$2.80

4

CUSHION

09321-10034

$7.84

5

SCREW (6X20)

09139-06193

$3.93

6

SEAT ASSY,PILLION (BLACK) This part replaces 45300-14J10-P3H.

45300-14J11-P3H

$158.94

7

BAND ASSY,SEAT

45180-14J10-P3H

Unavailable

8

STRIKER

45290-47H01

$44.02

9

.WASHER (6.5X20X1.6)

09160-06088

$1.73

10

NUT

08316-1006A

$2.25

11

BRACKET, SEAT SUPPORT

45220-47H00

$155.43

12

SCREW

02122-0630A

$1.81

13

CABLE,SEAT LOCK

45280-14J00

$27.55

14

LOCK SET, SEAT

95700-14810

$102.14

15

PLATE, SEAT LOCK ASSY

45289-11F00

$5.93

16

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.14
