CRANKCASE

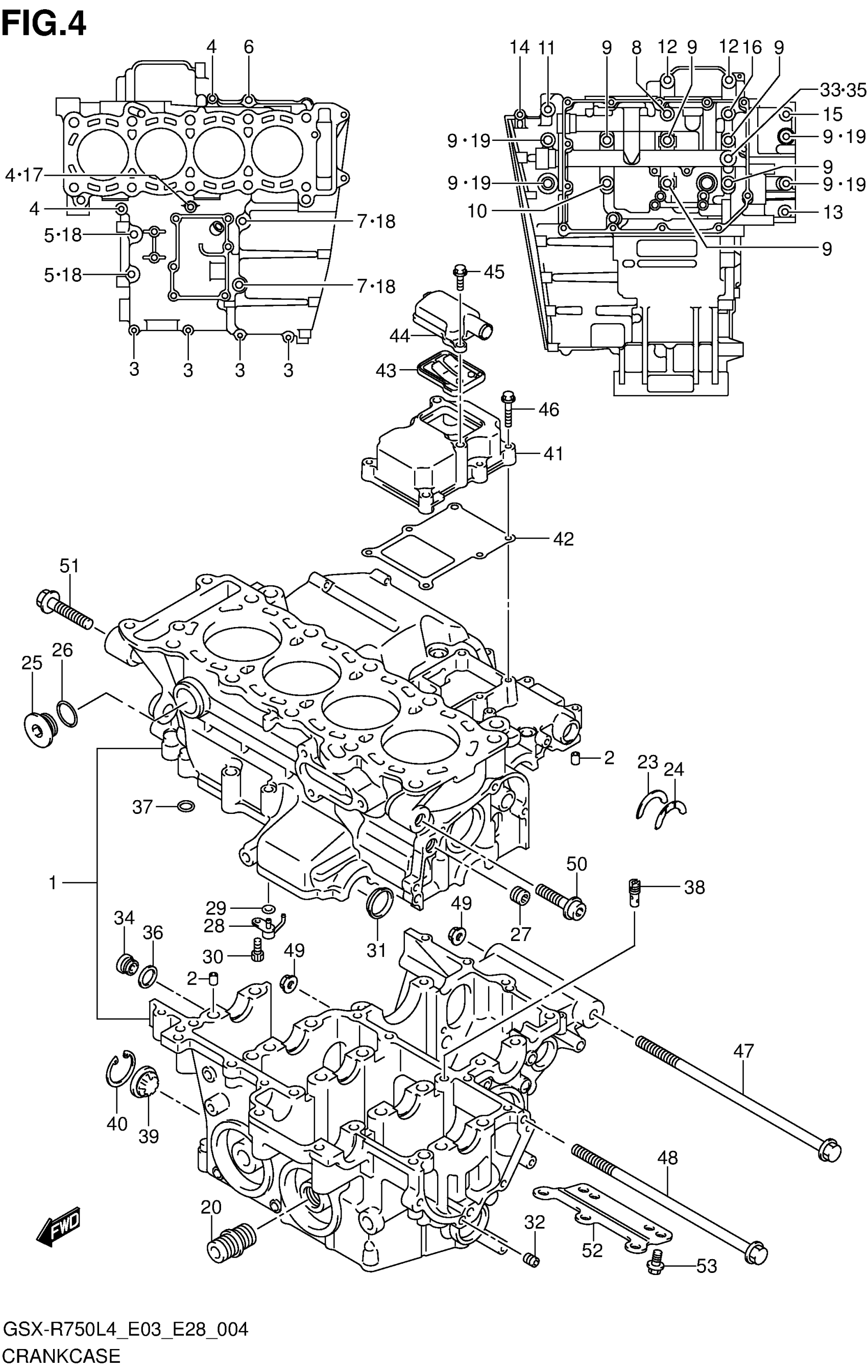

2014 Suzuki GSX-R750L4 Crankcase Diagram
Find the part on the Crankcase diagram for your 2014 Suzuki GSX-R750L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
BOLT
01547-0635A
7
BOLT
01550-0875A
8
BOLT (8X105)
09103-08097
14
BOLT
01547-0645A
17
GASKET (5.8X13X1.2)
09168-06023
18
GASKET (8.2X14X1)
09168-08016
20
UNION,OIL STAND
16591-06B01
30
BOLT (6X12)
09106-06075
33
PLUG (L:12)
09248-12004
35
GASKET (12.1X16.2X3.7)
09168-12002
36
GASKET (16X22X2)
09168-16002
38
JET, T/M OIL (14)
09493-28012
41
COVER,BREATHER
11371-01H00
44
COVER, VALVE
11372-01H00
45
BOLT
01547-0616A
49
NUT
09159-10115
