2012 Suzuki GSX-R750L2 Frame Cover Diagram

← All diagrams

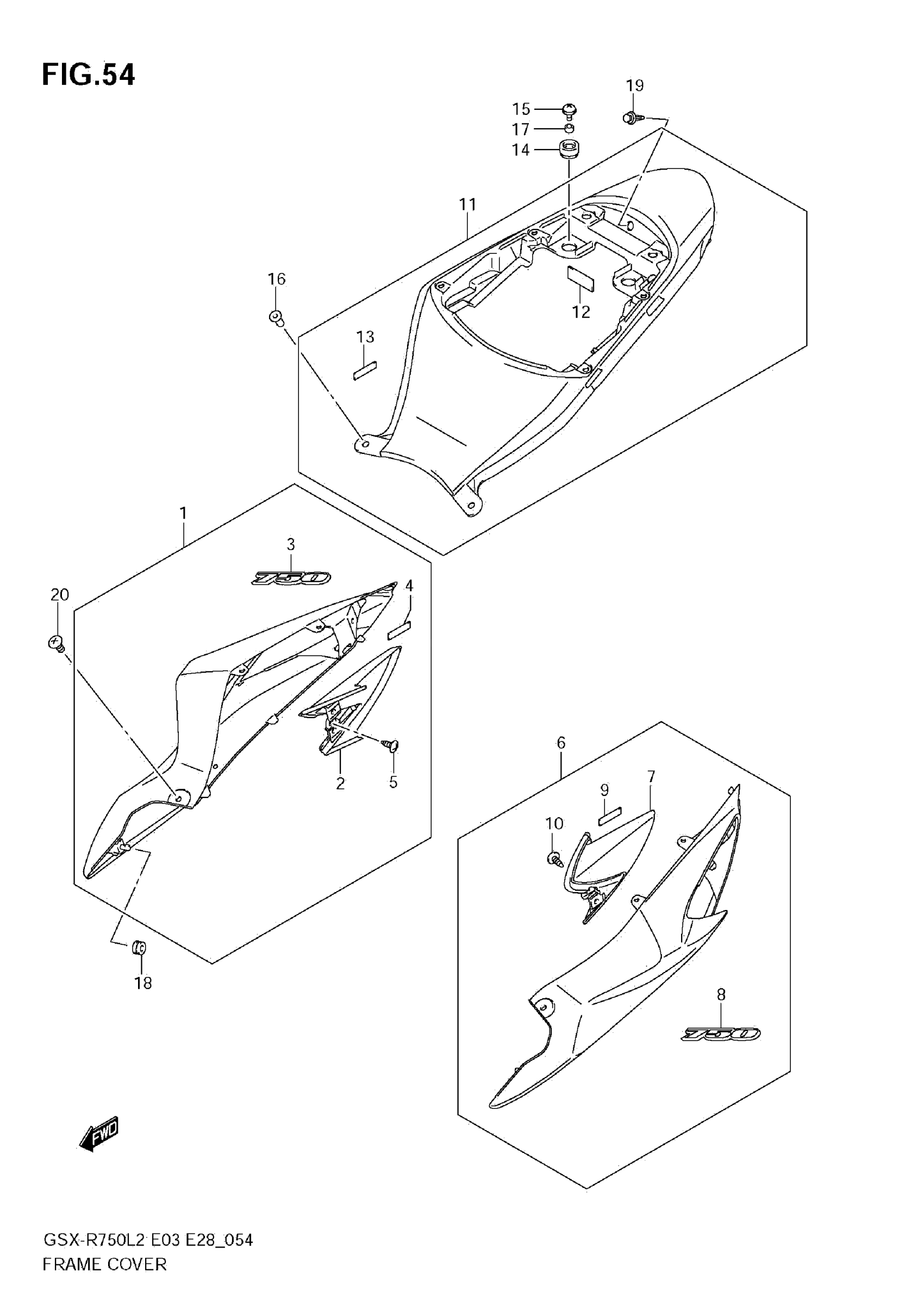

Find the part on the Frame Cover diagram for your 2012 Suzuki GSX-R750L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX-R750L2 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$203.02

In stock

1

1

$219.97

In stock

2

COVER,FRAME RR,R

47611-14J00

1
Out of stock

3

EMBLEM, "750" (ORANGE/BLACK) | FOR GLR

68131-15J00-JWH

1
Out of stock

3

EMBLEM, "750" (GRAY/BLACK) | FOR KGK

68131-15J00-DUJ

1
Out of stock

4

TAPE

94443-06G00

2
Out of stock

5

SCREW

03541-0512A

1
Out of stock

6

1

$199.26

In stock

6

1

$219.97

In stock

7

COVER,FRAME RR,L

47621-14J00

1
Out of stock

8

EMBLEM, "750" (ORANGE/BLACK) | FOR GLR

68131-15J00-JWH

1
Out of stock

8

EMBLEM, "750" (GRAY/BLACK) | FOR KGK

68131-15J00-DUJ

1
Out of stock

9

TAPE

94443-06G00

2
Out of stock

10

SCREW

03541-0512A

2
Out of stock

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

1
Out of stock

12

CUSHION

48128-14FA0

1
Out of stock

13

TAPE

94443-06G00

2
Out of stock

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

2
Out of stock

15

SCREW (6X16)

09136-06056

2
Out of stock

16

NUT

09159-05019

2
Out of stock

17

SPACER (6.5X10X7)

09180-06283

2
Out of stock

18

CUSHION

09320-06504

2
Out of stock

19

CLIP (BLACK)

09409-06314-5PK

8

$2.92

In stock

20

SCREW

02142-1520B

2
Out of stock
