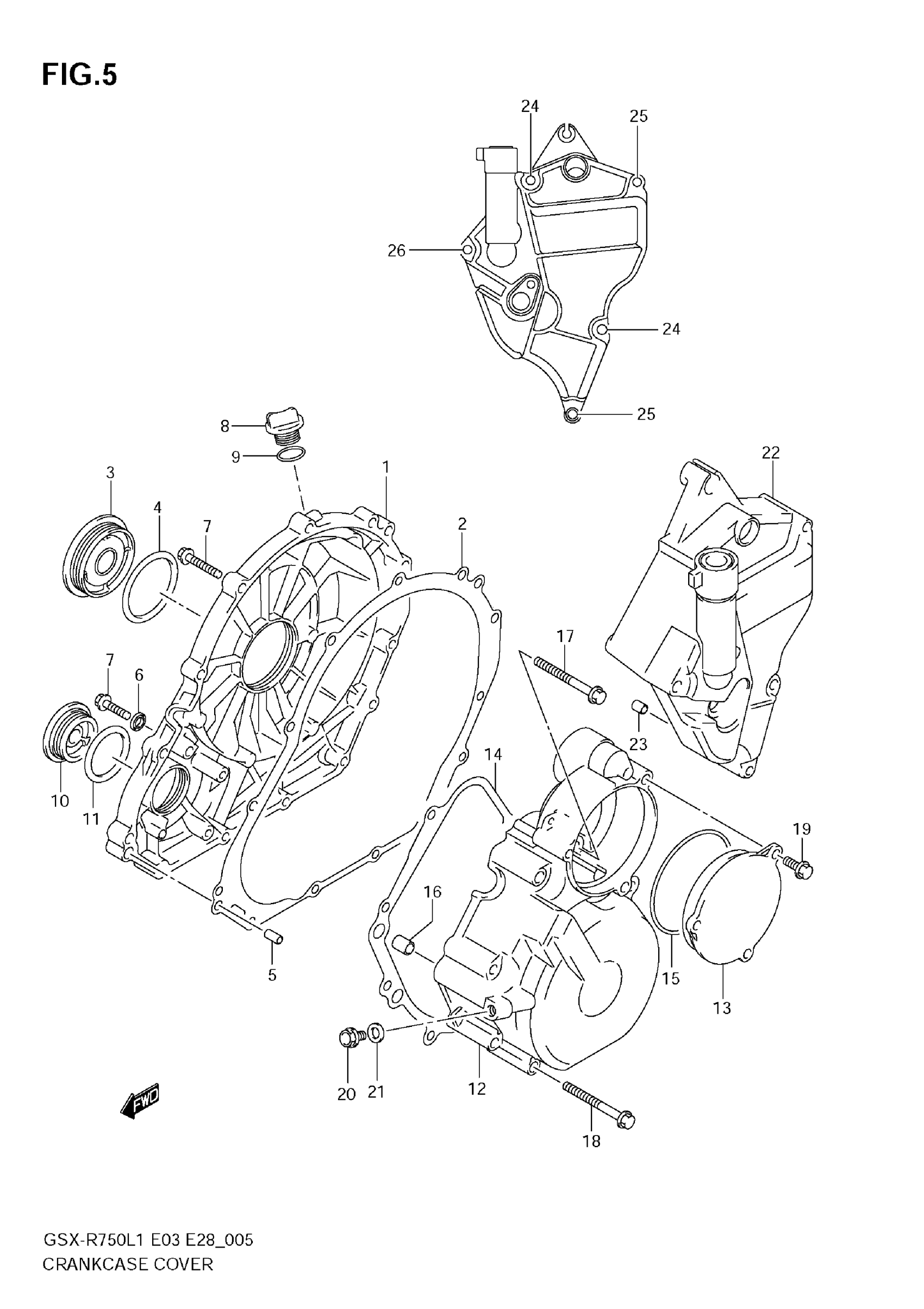

Suzuki GSX-R750L1 (2011) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-37H00.

11341-37H10

$163.34

2

GASKET, CLUTCH COVER (NA)

11482-01H00

$20.09

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$22.92

4

O RING (D:2.4,ID:52.6)

09280-54001

$3.38

5

PIN

04211-09189

$1.64

6

GASKET (5.8X13X1.2)

09168-06023

$2.01

7

BOLT (6X30)

09103-06213

$2.53

8

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

10

PLUG

09259-36021

$12.45

11

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

12

COVER,GENERATOR

11351-01H02

$238.38

13

CAP,STARTER IDLE GEAR

11352-01H00

$51.00

14

GASKET, GENERATOR COVER (NA)

11483-01H00

$10.34

15

O RING (D:2.6,ID:67.1)

09280-71008

$6.21

16

PIN

04211-09149

$1.64

17

BOLT (6X25)

09103-06212

$2.53

18

BOLT (6X50)

09103-06238

$2.65

19

BOLT (6X16)

09103-06274

$2.01

20

BOLT (6X12)

09103-06222

$2.28

21

GASKET (6.2X13X1.2)

09168-06018

$1.70

22

COVER,ENG SPROCKET

11361-01H00

$339.12

23

PIN

04211-09129

$1.64

24

BOLT (6X45)

09103-06224

$2.68

25

BOLT (6X65)

09103-06239

$2.65

26

BOLT (6X75)

09103-06257

$2.88
