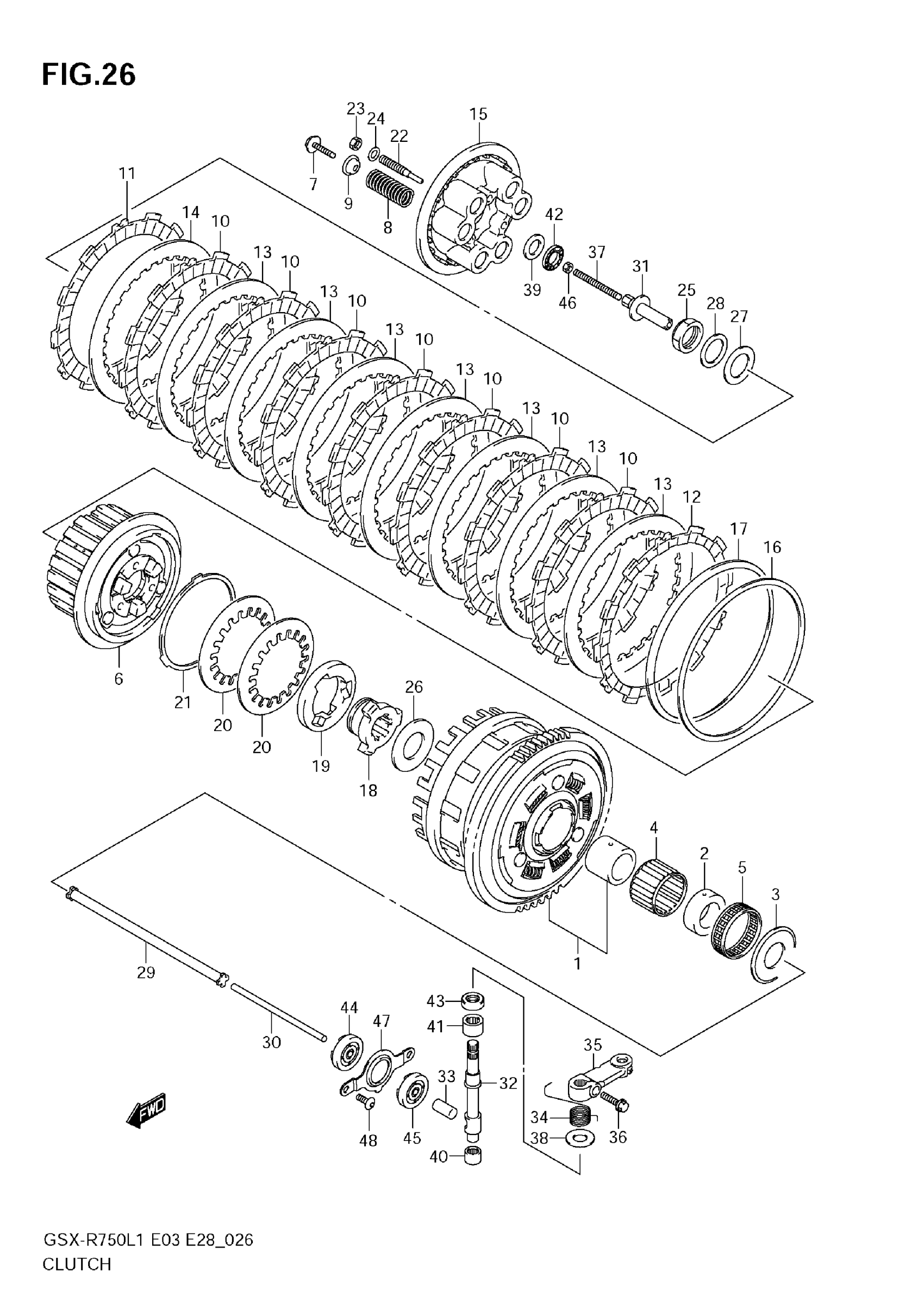

Suzuki GSX-R750L1 (2011) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:77

21200-01840

$561.52

2

SPACER, OIL PUMP DRIVE

21253-01H10

$46.80

3

WASHER (25X54X2.4)

09160-25073

$15.75

4

BEARING (35X40X26.8)

09263-35015

$30.38

5

BEARING (35X40X12)

09263-35045

$25.43

6

HUB,CLUTCH SLEEVE

21410-41G30

$263.42

7

BOLT, CLUTCH SPRING

21412-06G00

$3.55

8

SPRING,CLUTCH

21413-01H10

$7.32

9

WASHER

21414-29F00

$5.88

10

PLATE, CLUTCH DRIVE NO.2

21441-36F10

$19.82

11

PLATE, CLUTCH DRIVE NO.1

21441-36F30

$26.42

12

PLATE, CLUTCH DRIVE NO.3

21442-41G00

$25.69

13

PLATE, CLUTCH DRIVEN | T:2.0

21451-41G10

$18.10

14

.PLATE,CLUTCH DRIVEN (T:1.6) | T:1.6

21451-41G30

$12.48

15

DISC,CLUTCH PRESSURE

21462-41G00

$88.67

16

.SEAT,WAVE WASHER

21471-41G00

$13.01

17

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$18.79

18

CAM,CLUTCH DRIVE

21611-41G30

$159.27

19

CAM,CLUTCH DRIVEN

21612-41G10

$133.88

20

WASHER,CAM REACTION WAVE

21621-41G00

$13.97

21

WASHER,CAM REACTION SEAT

21624-41G00

$12.45

22

LIFTER, CLUTCH PRESSURE DISC

21622-41G00

$9.89

23

NUT, CL PRESS DISC

21623-41G00

$2.80

24

SHIM (8.8X14X1)

09181-08139

$1.92

25

NUT

09159-24010

$11.92

26

.WASHER (25X50X2.5)

09160-25056

$10.63

27

WASHER

09164-24008

$5.00

28

WASHER (25X41X2.5)

09160-25077

$11.38

29

ROD, CLUTCH PUSH RH

23110-38B00

$21.22

30

ROD, CLUTCH PUSH LH

23111-35F00

$12.18

31

PIECE, CLUTCH PUSH

23121-41G00

$55.32

32

CAMSHAFT,CLUTCH RELEASE

23122-41G10

$66.67

33

CAP, CLUTCH PUSH ROD

23123-41G00

$10.01

34

SPRING, CLUTCH RELEASE

23125-41G00

$2.97

35

ARM, CLUTCH RELEASE This part replaces 23271-41G20.

23271-41G21

$42.72

36

BOLT (6X20)

09103-06223

$2.49

37

SCREW (6X73)

09134-06015

$6.21

38

WASHER (10.5X24X1)

09160-10020

$1.86

39

WASHER (15.5X28X1)

09160-15045

$3.52

40

BEARING (10X14X10)

09263-10014

$12.21

41

BEARING (12X18X12)

09263-12027

$6.59

42

BEARING (15X28X2)

09263-15003

$7.49

43

OIL SEAL (10X20X6)

09282-10012

$7.20

44

OIL SEAL (6X34X10.5)

09283-06010

$15.16

45

OIL SEAL (10X17X5)

09285-10004

$3.04

46

NUT

08310-0006A

$1.83

47

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$6.89

48

SCREW (6X13)

09139-06153

$2.61
