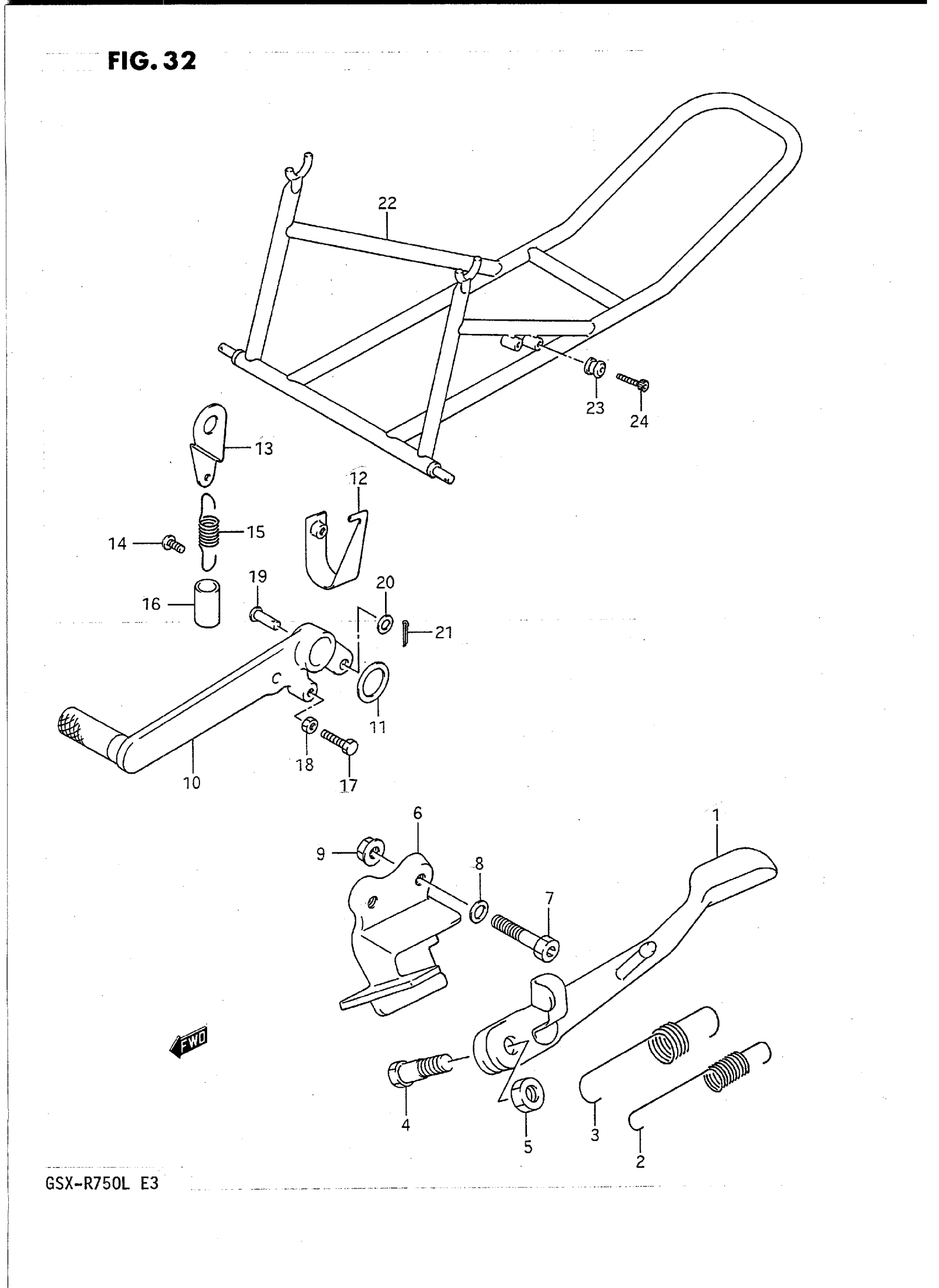

Find the part on the Stand diagram for your 1990 Suzuki GSX-R750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R750L Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | MODEL J This part replaces 42310-17C02.

42310-40C00

1
Out of stock

1

STAND, PROP | MODEL K This part replaces 42310-17C10.

42310-40C00

1
Out of stock

1

STAND, PROP | MODEL L

42310-07D02

1
Out of stock

2

SPRING, INNER | MODEL J This part replaces 09443-14055.

09443-14058

1
Out of stock

2

SPRING, INNER | MODEL K/L

09443-14058

1
Out of stock

3

SPRING, OUTER

09443-19011

1
Out of stock

4

BOLT

09111-10036

1
Out of stock

5

NUT This part replaces 08310-22107.

08310-00107

1
Out of stock

6

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 42330-17C02.

42330-40C00

1
Out of stock

6

BRACKET, PROP STAND | MODEL K

42330-40C10

1
Out of stock

6

BRACKET, PROP STAND | MODEL L

42330-07D00

1
Out of stock

7

BOLT This part replaces 07110-08358.

07130-08357

2
Out of stock

8

WASHER

09164-08015

2
Out of stock

9

NUT (CHROME) This part replaces 08316-16088.

08316-10087

2
Out of stock

10

PEDAL, BRAKE | MODEL J/K This part replaces 43110-17C02.

43110-17C03

1
Out of stock

10

PEDAL, BRAKE | MODEL L

43110-17C03

1
Out of stock

11

WASHER

09160-18022

1
Out of stock

12

PLATE, BRAKE PEDAL

43561-17C01

1
Out of stock

13

BRACKET, STOP SWITCH LOWER | MODEL J/K This part replaces 43563-17C00.

43563-17C01

1
Out of stock

13

BRACKET, STOP SWITCH LOWER | MODEL L

43563-17C01

1
Out of stock

14

BOLT

09139-06027

1
Out of stock

15

SPRING

09443-13018

1
Out of stock

16

TUBE, SPRING

43261-17C00

1
Out of stock

17

BOLT This part replaces 01104-05206.

01500-0520B

1
Out of stock

18

NUT This part replaces 08310-11058.

08310-00057

1
Out of stock

19

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

1
Out of stock

20

WASHER This part replaces 08322-21067.

08322-01067

1
Out of stock

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

1
Out of stock

23

HOLDER, STAND | OPT

61165-27A30

2
Out of stock

24

BOLT, STEERING DAMPER | OPT This part replaces 07110-08305.

07130-0830A

2
Out of stock
