1987 Suzuki GSX-R750G Speedometer Diagram

← All diagrams

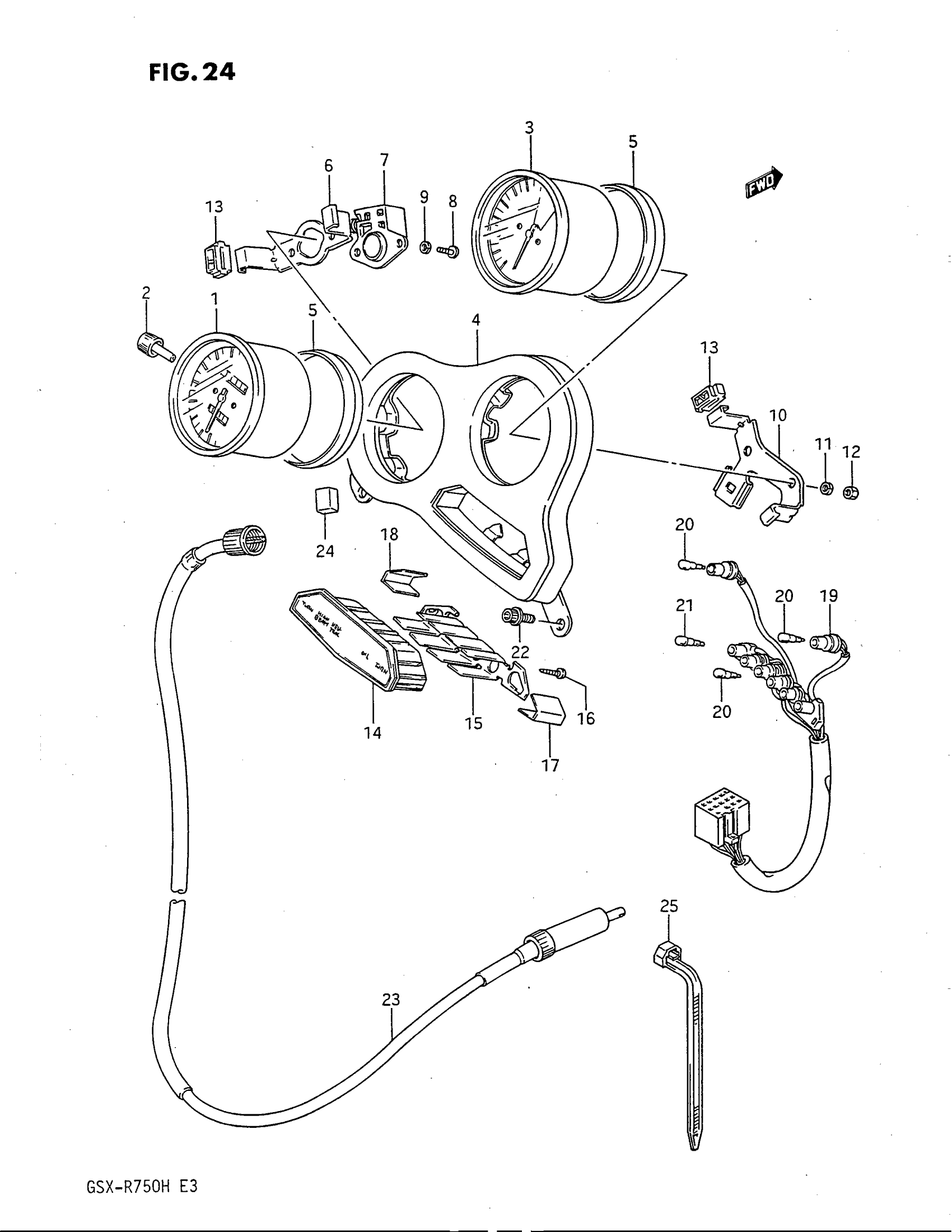

Find the part on the Speedometer diagram for your 1987 Suzuki GSX-R750G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSX-R750G Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34110-28A30

1
Out of stock

2

KNOB, TRIP

34124-27A00

1
Out of stock

3

TACHOMETER

34210-27A00

1
Out of stock

4

BRACKET, METER | MODEL G

34950-27A11

1
Out of stock

4

BRACKET, METER | MODEL H

34950-27A90

1
Out of stock

5

CUSHION, METER | MODEL H

34288-27A90

2
Out of stock

6

PLATE, SPEEDOMETER

34111-27A00

1
Out of stock

7

BOX, METER GEAR

34131-27A00

1
Out of stock

8

SCREW This part replaces 02112-04105.

02112-3410A

2
Out of stock

9

LOCK WASHER This part replaces 08321-21045.

08321-0104A

2
Out of stock

10

PLATE, TACHOMETER

34211-27A00

1
Out of stock

11

WASHER

34181-27A00

2
Out of stock

12

NUT

08310-21035

2
Out of stock

13

CUSHION

34189-27A00

4
Out of stock

14

CASE, PILOT LAMP | MODEL G

36381-27A10

1
Out of stock

14

CASE, PILOT LAMP | MODEL H This part replaces 36381-27A41.

36381-27A10

1
Out of stock

15

PLATE, PILOT LAMP

36382-27A00

1
Out of stock

16

SCREW This part replaces 36387-27A00.

36457-45100

2
Out of stock

17

PLATE, TURN RH

36383-27A00

1
Out of stock

18

PLATE, TURN LH

36384-27A00

1
Out of stock

19

SOCKET, METER | MODEL G

34170-27A10

1
Out of stock

19

SOCKET, METER | MODEL H This part replaces 34170-27A41.

34170-27A10

1
Out of stock

20

BULB (12V,3W) | MODEL GMODEL H

09471-12085

4
Out of stock

21

BULB (12V,1.7W)

09471-12100

4
Out of stock

22

BOLT, OIL GALLERY This part replaces 07120-06125.

07120-0612B

3
Out of stock

23

CABLE ASSY, SPEEDOMETER This part replaces 34910-27A01.

34910-06B00

1
Out of stock

24

CUSHION This part replaces 34191-27A00.

34161-03D00

1
Out of stock

25

CLAMP

09407-11401

1
Out of stock
