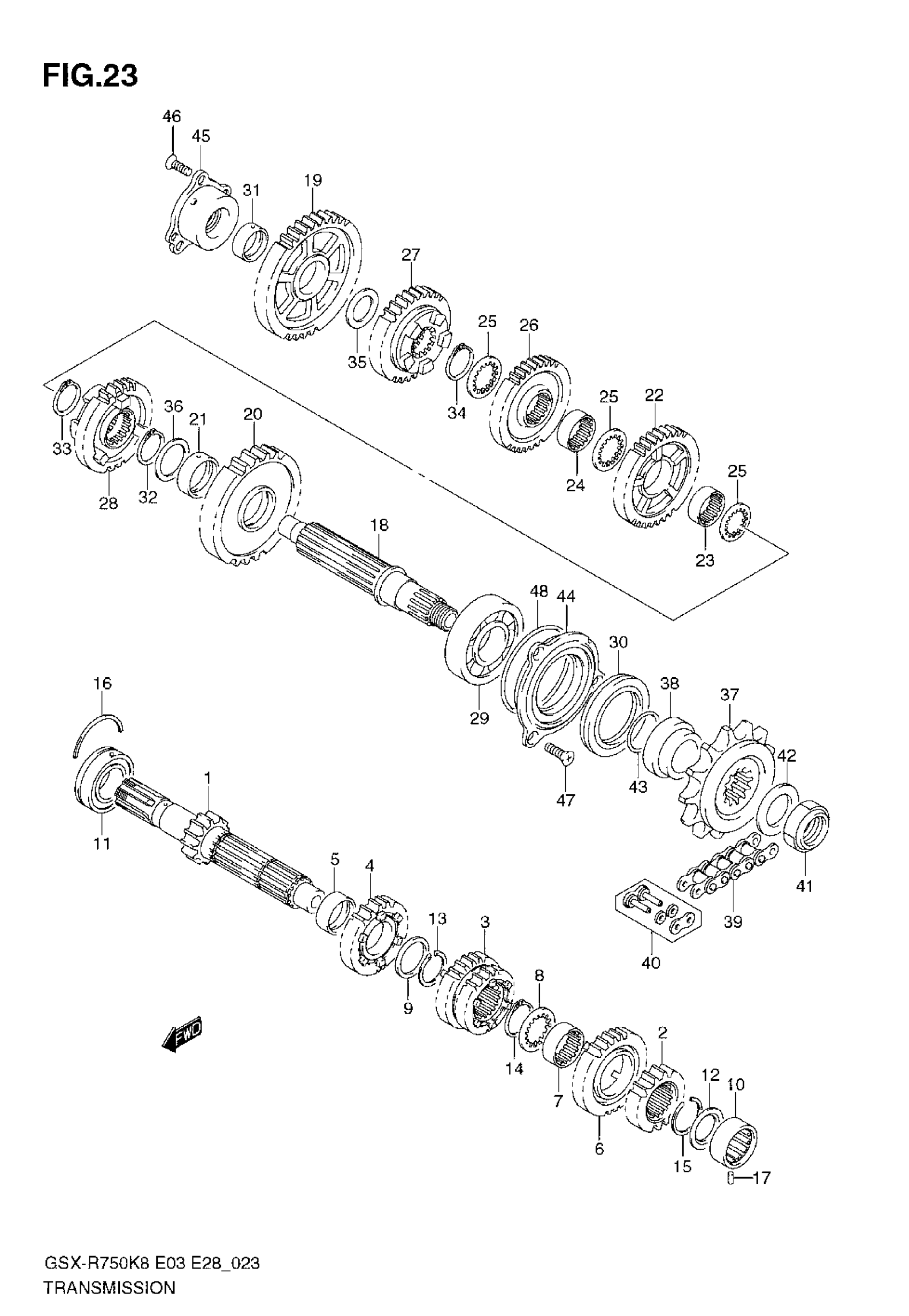

Suzuki GSX-R750 (2008) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-01H00

Unavailable

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$131.95

3

GEAR,3RD & 4TH DRIVE (NT:21/2

24231-01H00

$129.58

4

GEAR, 5TH DRIVE (NT:23)

24251-01H00

$189.32

5

BUSH 5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR,6TH DRIVEN (NT:24)

24261-01H01

$189.32

7

BUSH, 6TH DRIVE GEAR

24262-35F00

$32.30

8

WASHER, 6TH DRIVE

09167-27001

$2.56

9

WASHER, 5TH DRIVE | 27X36X1.0

09160-27008

$4.00

10

BEARING, CNTR LH | 20X34X13.5

09263-20087

$54.53

11

BEARING, CNTR RH | 25X62X17

09262-25150

$89.78

12

SEAL, OIL (20X31.2X2.7)

09285-20006

$5.88

13

CIRCLIP, 5TH DRIVE

09380-27006

$2.73

14

CIRCLIP, 6TH DRIVE

09380-27006

$2.73

15

CIRCLIP, 2ND DRIVE

09380-27004

$3.33

16

C RING, CNTR RH

09390-62012

$6.69

17

PIN, COUNTER SHAFT, LH

09261-06003

$1.49

18

SHAFT, DRIVE

24131-01H01

$363.07

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$180.58

20

GEAR,2ND DRIVEN (NT:39)

24321-35F11

$152.71

21

BUSH, 2ND DRIVEN

24322-35F00

$23.28

22

GEAR,3RD DRIVEN (NT:36)

24331-40F30

$188.52

23

BUSH, 3RD DRIVEN

24262-17E01

$43.58

24

BUSH, 4TH DRIVEN GEAR

24262-17E01

$43.58

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$6.62

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$196.77

27

GEAR,5TH DRIVEN (NT:31)

24351-01H20

$192.08

28

GEAR, 6TH DRIVEN (NT:26)

24361-01H00

$196.77

29

BEARING, DRIVE SHAFT, LH | 28X70X18

09262-28045

$113.28

30

SEAL, DRIVE SHAFT, OIL | 42X62X7

09283-42018

$32.83

31

BUSH, 1ST DRIVEN GEAR | 22X26X9

09300-22008

$16.03

32

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

$2.73

33

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

$2.73

34

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

$2.73

35

WASHER, 1ST DRIVEN LH | 22X34X1.0

09181-22223

$2.85

36

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$4.00

37

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$89.07

38

SPACER, ENGINE SPROCKET

27531-01H00

$45.92

39

CHAIN,DRIVE (RK GB525ROZ5Y)

27600-33E40-116

$307.17

40

JOINT SET | OPT

27620-33E40

$23.82

41

NUT, ENGINE SPROCKET

09159-20004

$14.15

42

WASHER (25X41X3)

09160-25009

$4.84

43

O RING (D:2.4,ID:23.7)

09280-24010

$5.09

44

RETAINER, DRIVE SHAFT, L

24751-01H10

$143.23

45

HOUSING, DRIVE SHAFT SET

24771-01810

$187.45

46

SCREW, DRIVE SHAFT (6X20)

09139-06159

$4.45

47

SCREW, RETAINER (6X20)

09139-06159

$4.45

48

O RING

09280-68009

$18.81
