2008 Suzuki GSX-R750 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2008 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

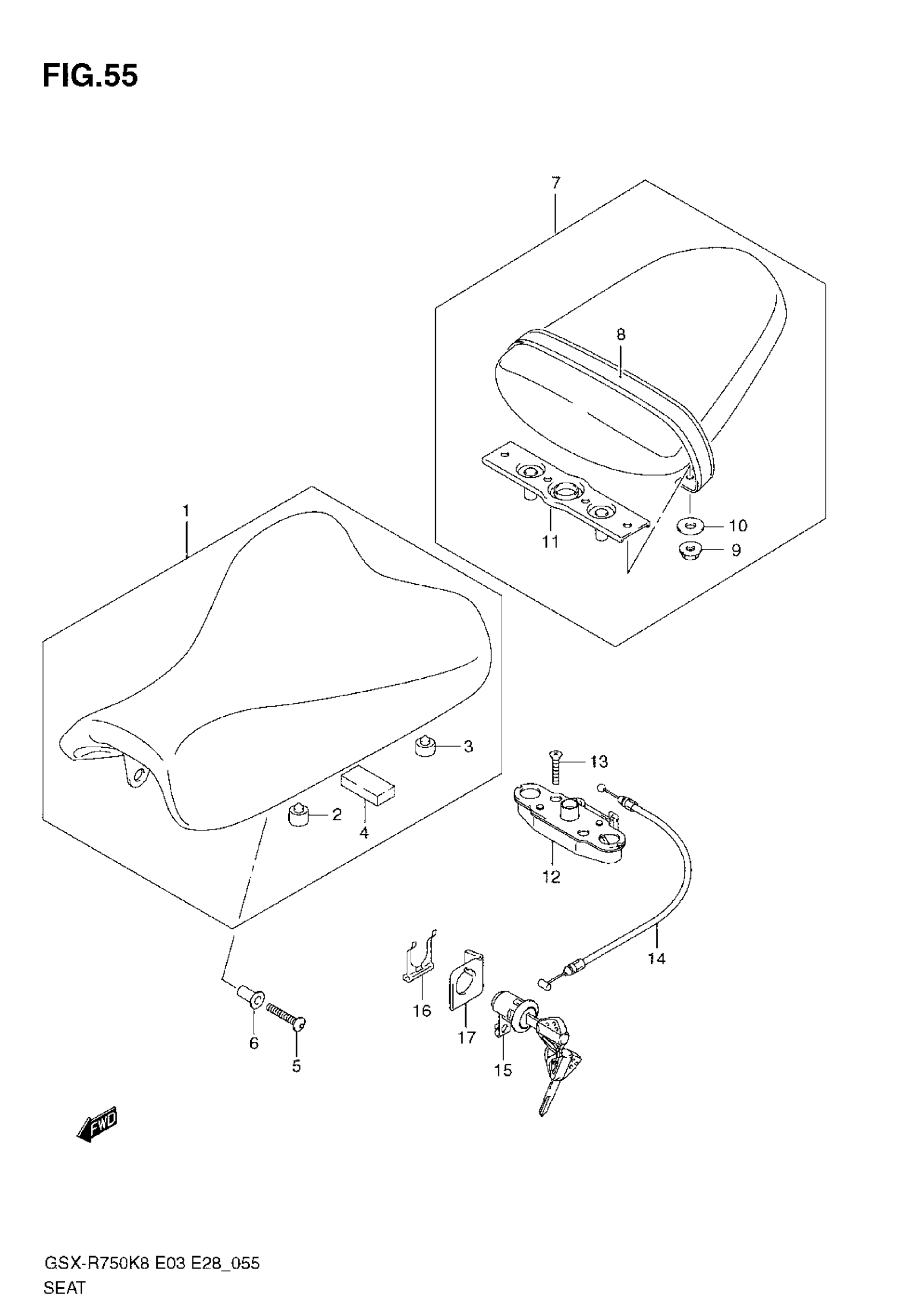

2008 Suzuki GSX-R750 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

CUSHION, FRONT

09321-10039

2

$5.28

In stock

3

CUSHION

09321-10011

4

$2.92

In stock

4

CUSHION

45149-37H00

1

$7.77

In stock

5

BOLT, SEAT

09139-06065-XC0

2

$2.92

In stock

6

WASHER, SEAT

09180-06320

2

$4.62

In stock

8

BAND ASSY, SEAT

45180-37H00-6BY

1
Out of stock

9

NUT

08319-3106A

2
Out of stock

10

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

11

1

$45.13

In stock

12

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

13

SCREW, REAR

02122-0630A

2

$1.89

In stock

14

CABLE, SEAT LOCK

45280-13A01

1

$11.78

In stock

15

LOCK SET, SEAT

95700-14810

1
Out of stock

16

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

17

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock
