2008 Suzuki GSX-R750 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2008 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

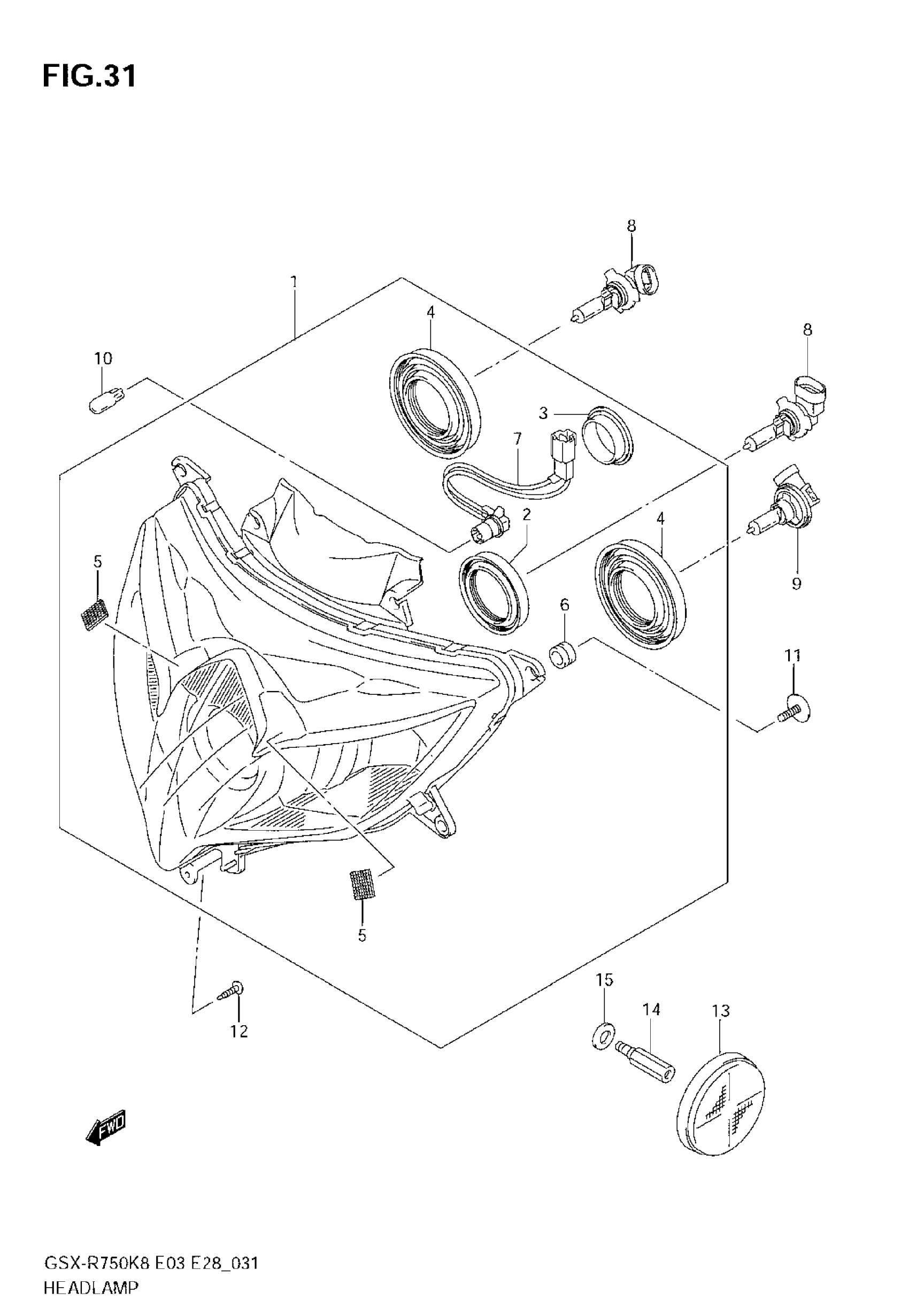

2008 Suzuki GSX-R750 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 7 This part replaces 35100-37H30-999.

35100-37H32-999

1
Out of stock

2

COVER, SOCKET

35179-01H00

1
Out of stock

3

COVER, BACK

35179-37H00

1
Out of stock

4

COVER, SOCKET

35179-76F10

2
Out of stock

5

FASTENER, FUEL TANK

44572-37H00

3
Out of stock

6

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

6
Out of stock

7

SOCKET & LEAD This part replaces 36118-37H00.

36118-37H01

1
Out of stock

8

BULB (12V60W,HB3,#9005)

09471-12151

2
Out of stock

9

BULB (12V55W,H11)

09471-12210

1
Out of stock

10

.BULB (12V5W)

09471-12216

1
Out of stock

11

SCREW, HEADLAMP

09136-05062

6
Out of stock

12

BOLT, HEADLAMP

03541-0516B

1
Out of stock

13

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

2
Out of stock

14

BOLT

09119-06109

2
Out of stock

15

WASHER (8.5X14X1.5)

09160-08090

2
Out of stock
