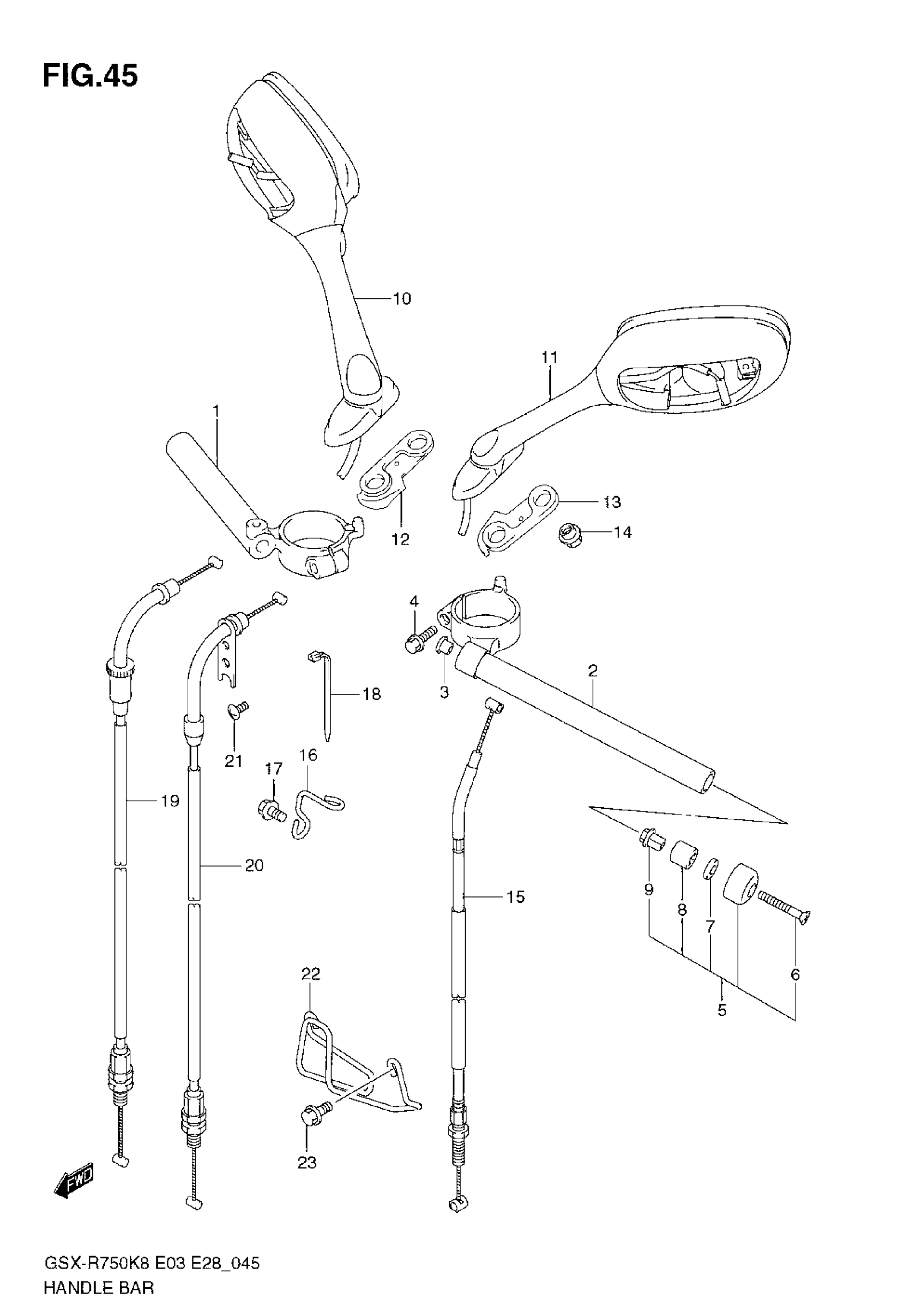

2008 Suzuki GSX-R750 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2008 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki GSX-R750 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56111-01H10

1
Out of stock

2

HANDLEBAR, LH

56151-01H10

1
Out of stock

3

CAP,HANDLEBAR

56131-29G00

2
Out of stock

4

BOLT

09106-08185

2
Out of stock

5

BALANCER SET,HANDLEBAR | Includes Item(s) 6 - 9 This part replaces 56200-41822.

56200-41823

2
Out of stock

6

SCREW

02122-0640B

2
Out of stock

7

WASHER

09160-06131

2
Out of stock

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

9

NUT

56273-10G10

2
Out of stock

10

MIRROR ASSY, REAR VIEW RH

56500-41G21

1
Out of stock

11

MIRROR ASSY, REAR VIEW LH

56600-41G21

1
Out of stock

12

CUSHION, RH

94575-37H00

1
Out of stock

13

CUSHION, LH

94576-37H00

1
Out of stock

14

NUT,RR VIEW MIRROR

56619-41G01

4
Out of stock

15

CABLE ASSY,CLUT This part replaces 58200-37H00.

58200-37H01

1
Out of stock

16

GUIDE, CLUTCH CABLE

58621-37H00

1
Out of stock

17

BOLT, CLUTCH GUIDE

01547-0612A

1
Out of stock

18

CLAMP

09407-17403

1
Out of stock

19

CABLE ASSY,THRO This part replaces 58300-37H00.

58300-37H01

1
Out of stock

20

CABLE ASSY,THRO This part replaces 58300-37H10.

58300-37H11

1
Out of stock

21

SCREW, CASE

02142-0510B

1
Out of stock

22

GUIDE, THROTTLE

58622-37H00

1
Out of stock

23

BOLT

01550-0520A

2

$0.83

In stock
