2008 Suzuki GSX-R750 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2008 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

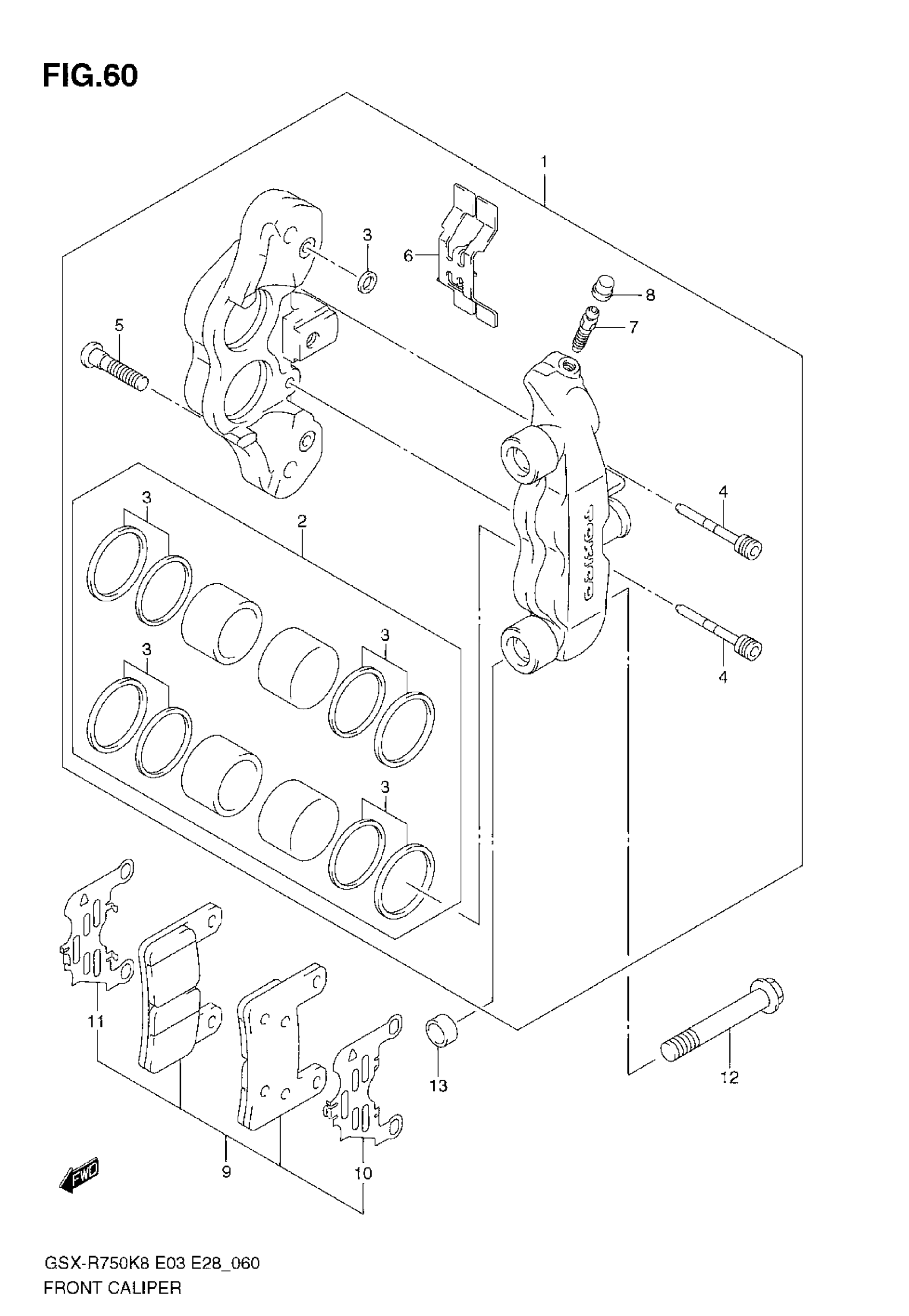

2008 Suzuki GSX-R750 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-41G30-999

1

$713.07

In stock

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-41G30-999

1
Out of stock

2

PISTON SET

59100-41820

2

$289.17

In stock

3

SEAL SET, PISTON

59100-41810

2

$77.19

In stock

4

.PIN This part replaces 59141-41G00.

59141-41G10

2
Out of stock

5

BOLT

59145-18G00

6
Out of stock

6

SPRING, PAD

59151-29G00

2
Out of stock

7

BLEEDER

59121-18410

2

$8.70

In stock

8

CAP

55156-66310

2

$5.15

In stock

9

2

$58.03

In stock

10

SHIM

59171-41G00

2
Out of stock

11

SHIM

59172-41G00

2
Out of stock

12

BOLT (10X30)

09103-10392

4

$4.74

In stock

13

PIN, CALIPER

59151-41G00

4
Out of stock
