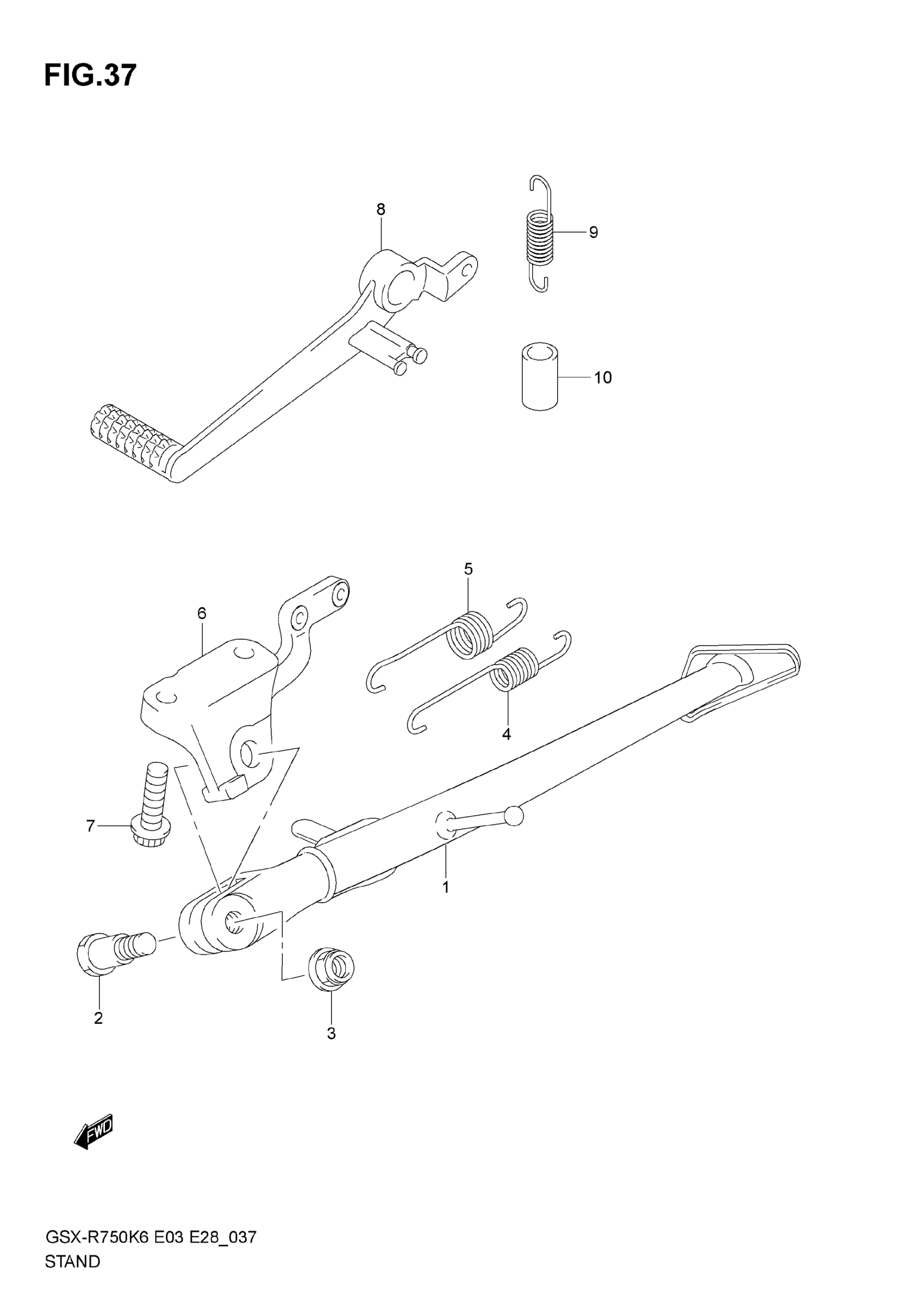

Suzuki GSX-R750 (2007) STAND Diagram

#

Description

Price

1

STAND, PROP

42310-40F30

$154.32

2

BOLT, PROP STAND

09111-10059

$6.45

3

NUT This part replaces 09159-10103-A05.

09159-10103

$2.88

4

SPRING This part replaces 09443-14070-A05.

09443-14070

$5.11

5

SPRING This part replaces 09443-19016-A05.

09443-19016

$5.47

6

BRACKET, PROP STAND

42330-01H00

$299.92

7

BOLT (10X28) This part replaces 09106-10064-A05.

09106-10064

$4.55

8

PEDAL, BRAKE

43110-41G00

$122.08

9

SPRING This part replaces 09443-11033-A05.

09443-11033

$4.19

10

HOSE This part replaces 09352-11153-600.

09352-11154-600

$12.12
