2007 Suzuki GSX-R750 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

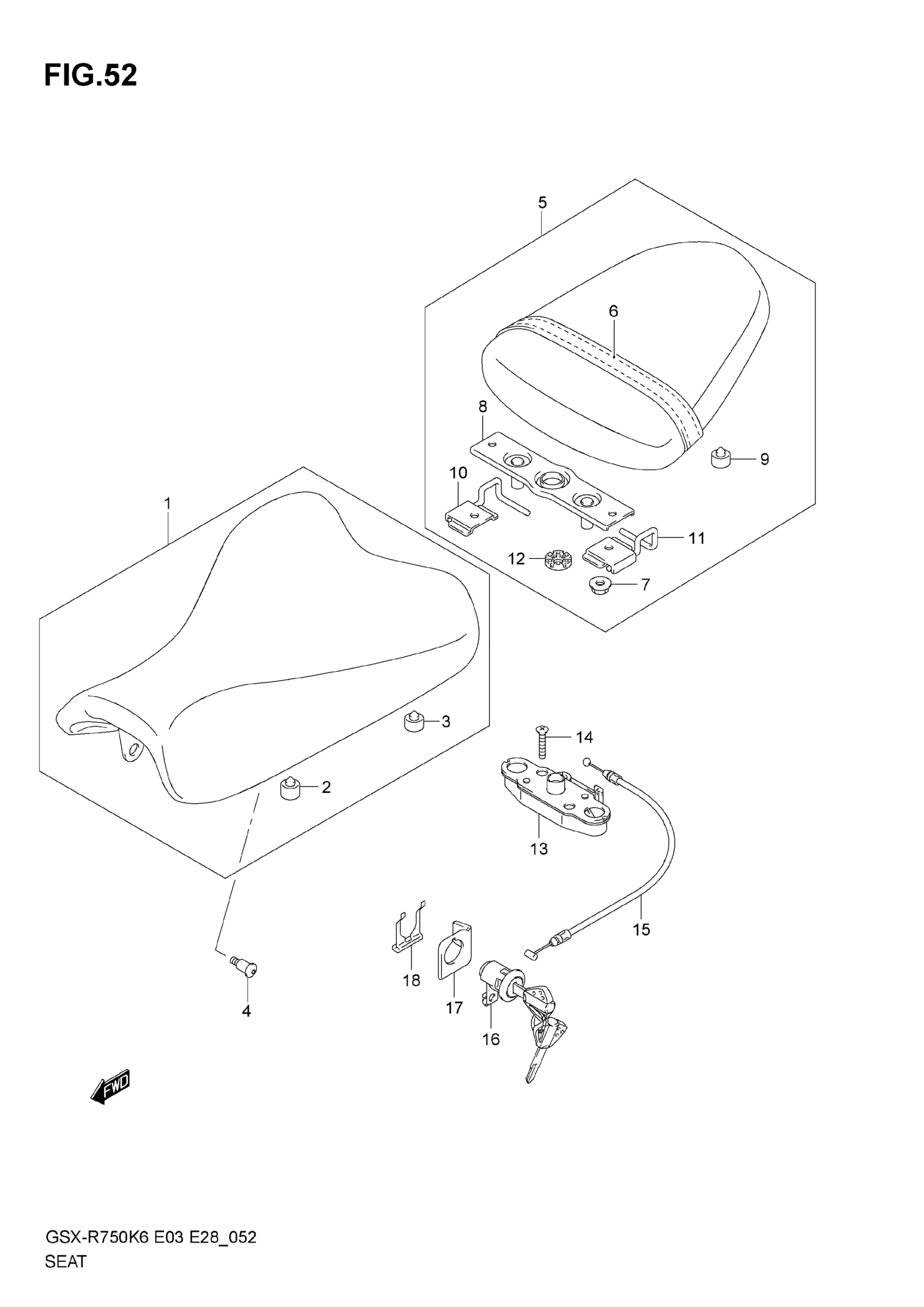

2007 Suzuki GSX-R750 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

CUSHION, FRONT

09321-10039

2

$5.28

In stock

3

CUSHION

09321-10011

2

$2.92

In stock

4

SCREW, SEAT

09139-06146

2
Out of stock

6

1

$36.63

In stock

7

NUT This part replaces 08319-31063.

08319-3106A

2
Out of stock

8

1

$45.13

In stock

9

CUSHION

09321-10011

2

$2.92

In stock

10

HOLDER, HELMET, R

45315-01H00

1
Out of stock

11

HOLDER, HELMET, L

45316-01H00

1
Out of stock

12

CUSHION

45213-31300

2

$2.92

In stock

13

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

14

SCREW, REAR

02122-0630A

2

$1.89

In stock

15

1

$11.78

In stock

15

1

$15.43

In stock

16

LOCK SET, SEAT

95700-14810

1
Out of stock

17

1

$10.25

In stock

18

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock
← Rear Fender Seat Tail BOX →
