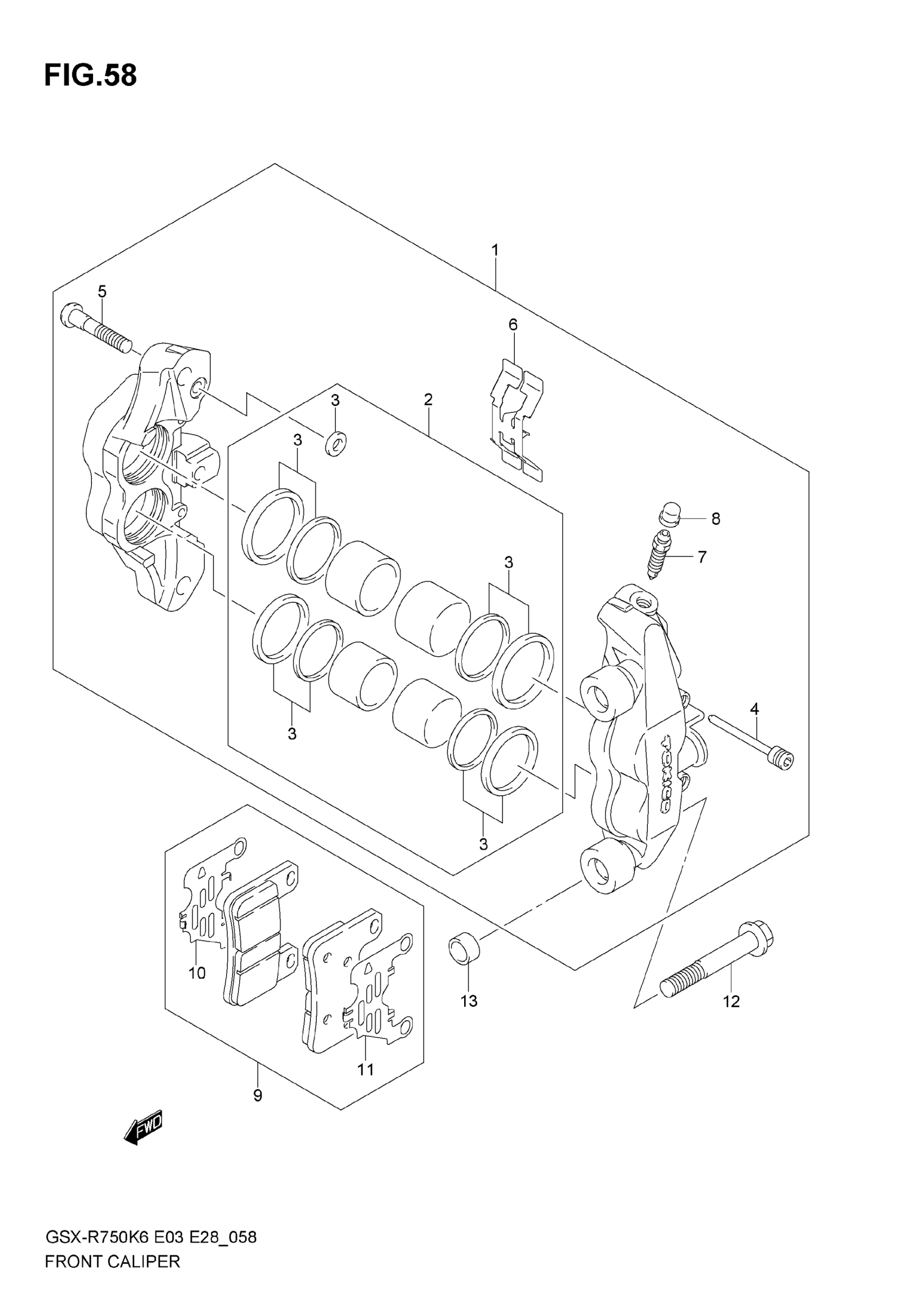

Suzuki GSX-R750 (2007) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-41G00-999

$699.85

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-41G00-999

$713.07

2

PISTON SET

59100-35890

$93.02

3

SEAL SET, PISTON

59100-29830

$35.86

4

.PIN This part replaces 59141-41G00.

59141-41G10

$24.71

5

BOLT

59145-18G00

$11.20

6

SPRING, PAD

59151-29G00

$11.75

7

BLEEDER

59121-18410

$7.99

8

CAP

55156-66310

$4.73

9

PAD & SHIM SET | Includes Item(s) 10 - 11

59100-29840

$54.33

10

SHIM, PAD A

59171-41G00

$17.40

11

SHIM, PAD B

59172-41G00

$17.40

12

BOLT

09103-10392

$4.42

13

PIN, CALIPER

59151-41G00

$10.96
