Description

Price

1

STAND, PROP

42310-40F10

$162.23

2

BOLT, PROP STAND

09111-10059

$6.27

3

NUT

09159-10103

$2.80

4

SPRING, INNER

09443-14070

$4.97

5

SPRING, OUTER

09443-19016

$5.31

6

BRACKET, PROP STAND

42330-29G00

Unavailable

7

BOLT

09106-10064

$4.42

8

PEDAL, BRAKE

43111-29G00

$174.43

9

WASHER

09160-18022

$2.80

10

HOOK, RETURN SPRING

43560-35F10

Unavailable

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

12

SPRING, RETURN

09443-11035

$5.28

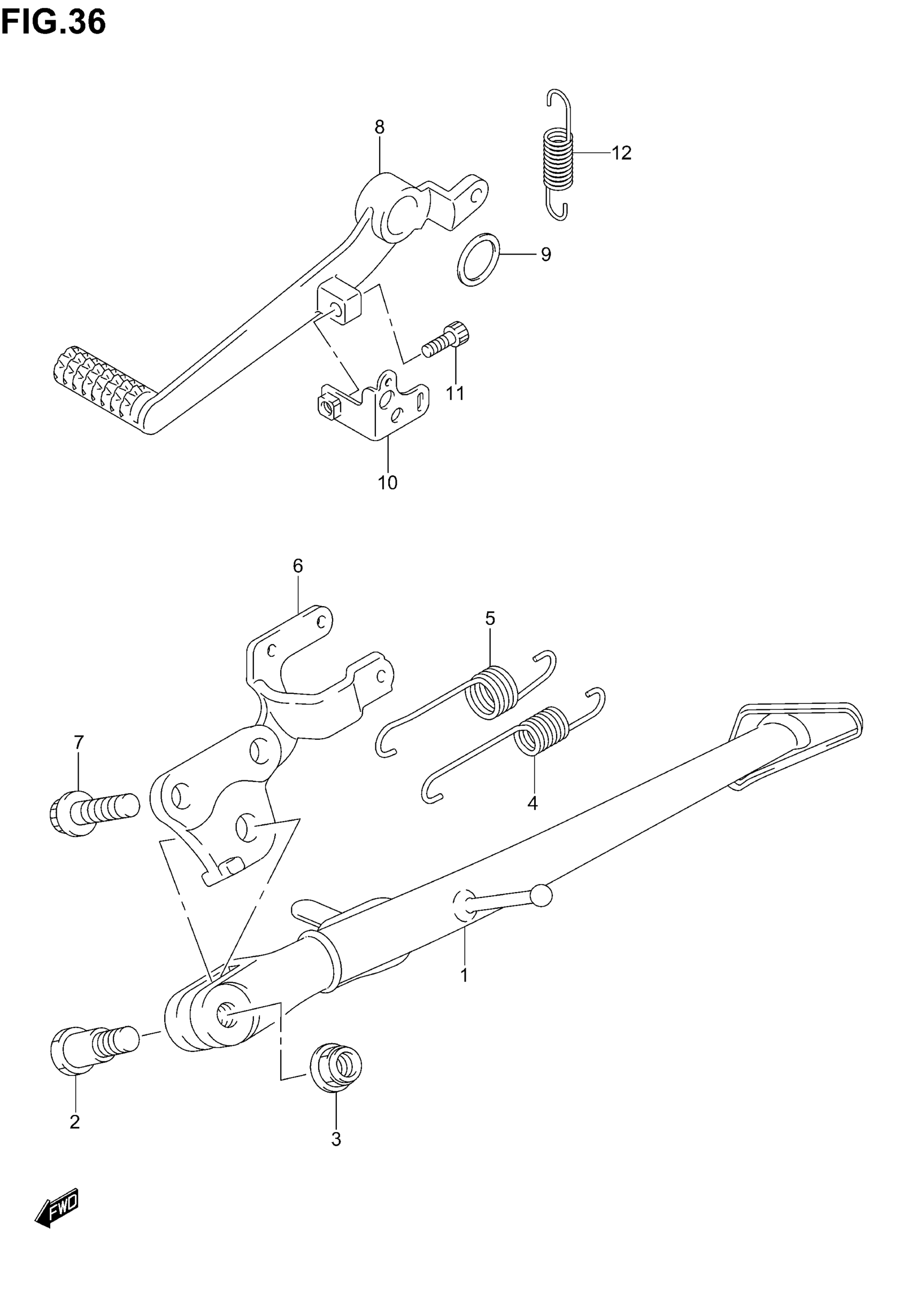

Suzuki GSX-R750 (2005) STAND Diagram
