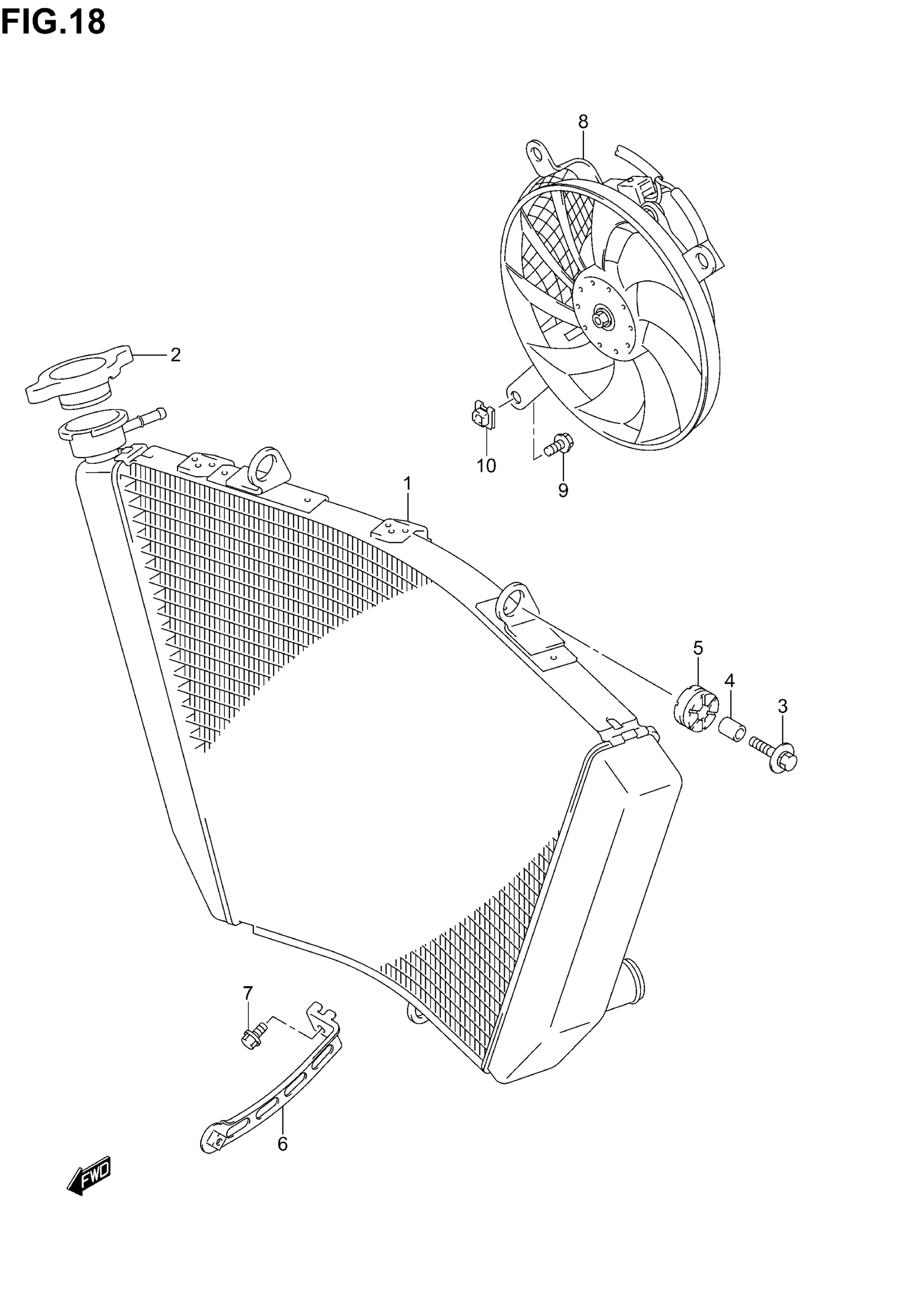

Suzuki GSX-R750 (2005) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-30G00

$1,282.68

2

CAP

17730-14G00

$40.97

3

BOLT

09118-06097

$2.57

4

SPACER

09180-06290

$2.09

5

CUSHION

09320-10051

$2.91

6

BRACKET, RADIATOR LOWER

17750-30G00

Unavailable

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

8

FAN ASSY,RADIAT This part replaces 17800-30G00.

17800-30G01

Unavailable

9

BOLT,FAN ASSY

17711-14G00

$4.62

10

NUT

17802-14F00

$3.33
