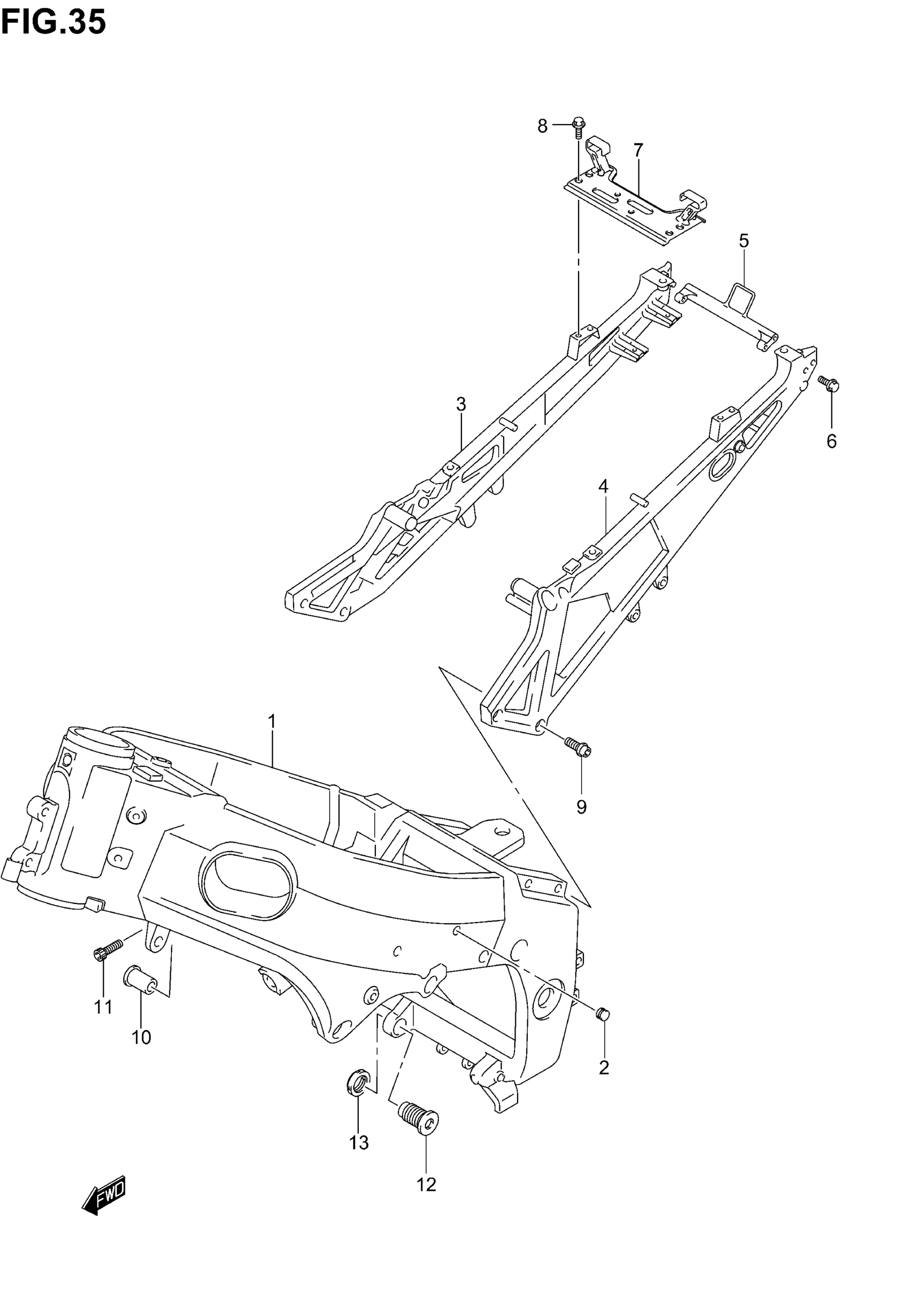

Suzuki GSX-R750 (2005) FRAME Diagram

FRAME (BLACK)

41100-30G00-YAP

Unavailable

CAP,TANK RAIL This part replaces 43585-29G00.

43585-29G01

$7.15

RAIL, SEAT RH

41211-29G00

Unavailable

RAIL, SEAT LH

41221-29G00

Unavailable

HOOK, PILLION SEAT

41231-29G00

$67.62

BOLT, HOOK

09103-08288

$4.35

BRIDGE, SEAT RAIL

41770-29G00

Unavailable

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

BOLT,SEAT RAIL This part replaces 41233-18G00.

41233-18G20

$7.92

SPACER, ENGINE MOUNT

41911-40F01

$21.23

BOLT, SPACER

09106-08170

$3.19

BOLT, CRANKCASE ADJUST

41921-35F00

$61.88

NUT, CRANK CASE ADJUST

41922-18G00

$41.45
