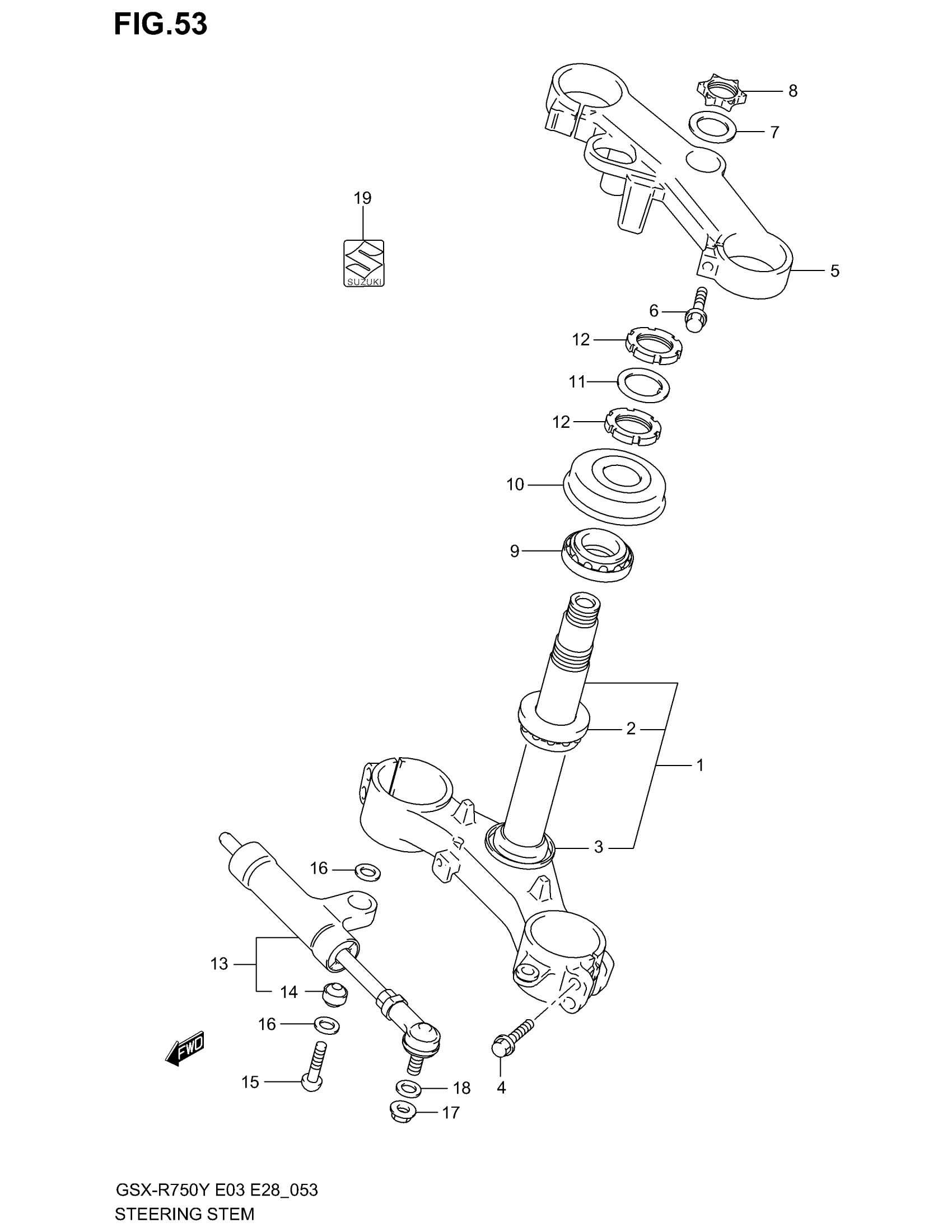

Suzuki GSX-R750 (2003) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-35F00

Unavailable

2

BEARING (30X55X17)

09267-30010

$43.41

3

SEAL, STEM LOWER

51644-12C00

$8.65

4

BOLT

01550-08407

$2.63

5

HEAD, STEERING STEM | MODEL Y/K1

51311-35F00

Unavailable

5

HEAD, STEERING STEM | MODEL K2/K3

51311-35F10

Unavailable

6

BOLT

51166-35F00

$6.86

7

WASHER

51354-42E00

$19.23

8

NUT

51353-35F00

$49.30

9

BEARING (30X55X17)

09267-30010

$43.41

10

SEAL, STEERING UPR DUST

51643-33E00

$14.66

11

WASHER, STEM

51641-33E00

$5.67

12

NUT, STEM

51631-33E00

$21.64

13

DAMPER ASSY, STEERING | Includes Item(s) 14

51750-35F01

Unavailable

14

BEARING (8X17.5X11)

09269-08003

$46.80

15

BOLT

09106-08130

$4.07

16

SEAL, DUST

64339-14101

$7.49

17

NUT

08319-31087

$2.31

18

WASHER, STRG DAMPER

09160-08059

$1.70

19

EMBLEM, "S"

68281-35F00

$15.48
