2003 Suzuki GSX-R750 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2003 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

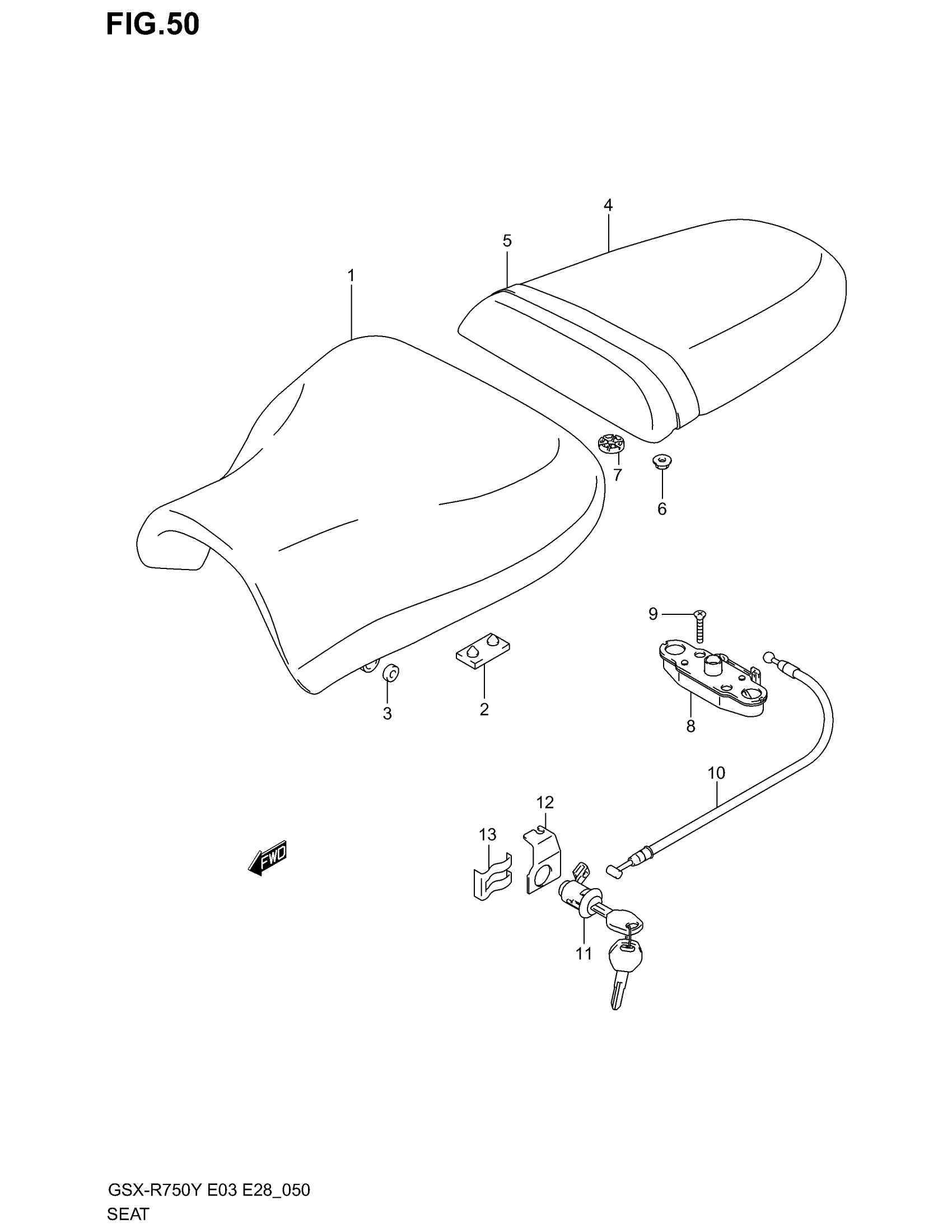

2003 Suzuki GSX-R750 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-35F00-R42.

45100-35F01-R42

1
Out of stock

2

CUSHION

45149-12C00

2

$7.48

In stock

3

SPACER (6.5X10.5X6)

45112-33E00

2
Out of stock

4

SEAT ASSY,PILLI | MODEL Y/K1 This part replaces 45300-35F00-R42.

45300-35F21-R42

1
Out of stock

4

SEAT ASSY,PILLI | MODEL K2/K3; Includes Item(s) 5 - 7 This part replaces 45300-35F20-R42.

45300-35F21-R42

1
Out of stock

5

BAND ASSY, SEAT (BLACK)

45180-35F00-R42

1
Out of stock

6

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

7

CUSHION

45213-31300

2
Out of stock

8

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

9

SCREW This part replaces 02122-06303.

02122-0630B

2
Out of stock

10

CABLE, SEAT LOCK

45280-21F00

1
Out of stock

11

LOCK ASSY, SEAT

95700-14810

1
Out of stock

12

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock

13

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock
