Description

Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-32C01

$325.48

2

PISTON/CUP SET

59600-45860

$36.14

3

BOOT

59666-44300

$5.30

4

O RING

69686-34200

$2.80

5

CONNECTOR

59672-17C00

$8.52

6

CIRCLIP

69674-00B20

$3.73

7

COVER, DUST

59673-17C00

$7.92

8

.HOLDER

59671-36500

$11.50

9

BOLT HOLDER SET

59675-19C00

$4.53

10

TANK ASSY, RESERVOIR | Includes Item(s) 11 - 13

59740-07D00

$55.29

11

DIAPHRAGM

59667-18441

$9.41

12

PLATE

59668-18441

$4.26

13

CAP

59669-07D00

$35.80

14

PLATE, TANK CAP

59743-17C00

$8.52

15

SCREW This part replaces 02142-04103.

02142-0410A

$1.22

16

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

17

BRACKET, RESERVOIR TANK

59751-35F00

$15.90

18

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

HOSE, RESERVOIR TANK

59731-32C00

$15.48

21

CLAMP, HOSE

59735-17C00

$4.51

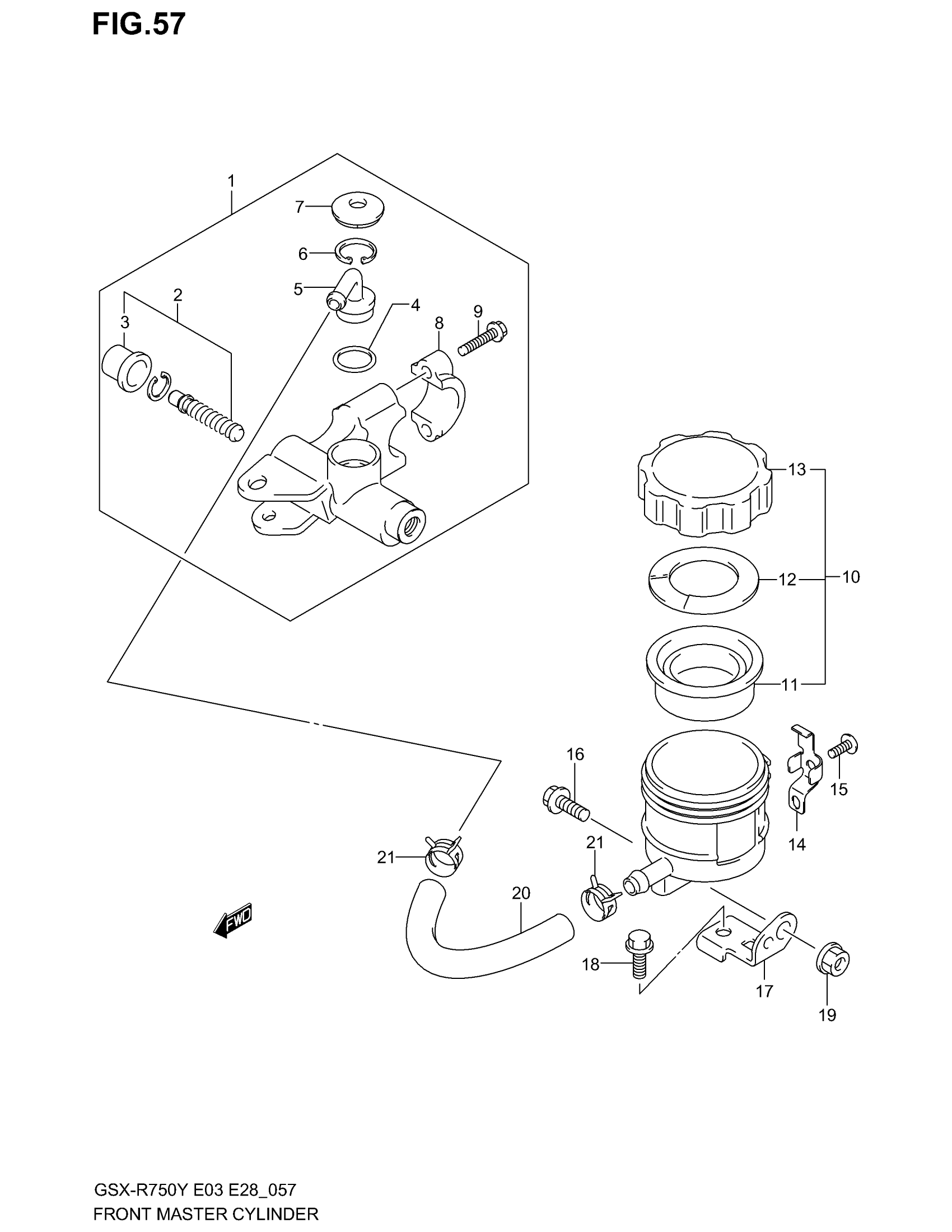

Suzuki GSX-R750 (2003) FRONT MASTER CYLINDER Diagram
